Specifications
Outdoor FTTH Fiber Optical CableFTTH drop optical fiber cable, indoor /cable
LSZH out jacket, light weight
Outdoor FTTH Fiber Optical Cable
Descriptions

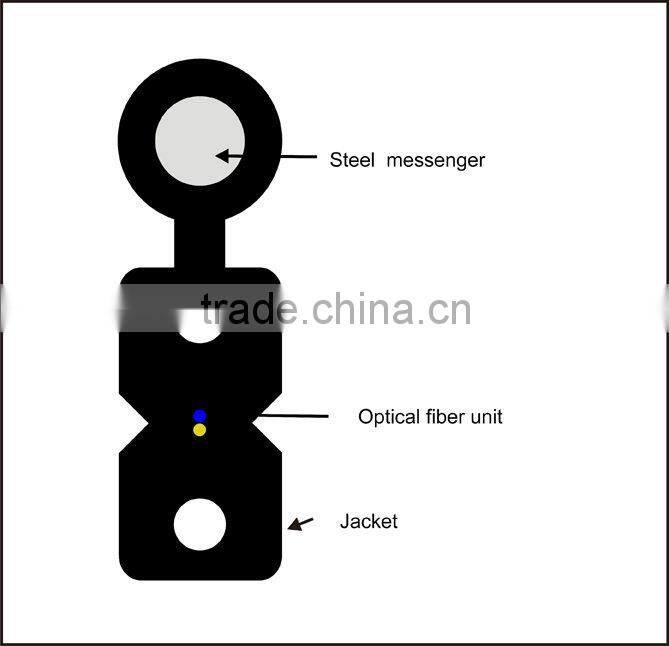

GJFBZY utilizes two parallel non-metallic strength members protected optical fiber unit, and with a LSZH
jacket. GYC8ZYconsists of a GJFBZY cable and an additional messenger wire.
Applications
Used in indoor cabling;
Used as drop cable.
Features
Compact and light weight, low purchasing and construction costs;
Easy connect without splicing, fast and convenient;
Excellent tensile and crush performance, the span distance for self-support type can be up to 50 meters;
Non-metallic strength member is Kevlar fiber reinforced plastic known as K-FRP;
Soft and flexible, good bending performance;
Flame retardant LSZH jacket meets relevant fire protection requirements in indoor environment; Optical fiber meets the requirements of standard ITU-T G657;
High carbon steel messenger wire enables the self-support type has excellent tensile strength.
Technical Parameters (Typical Values)
Type |
Fiber |
Dimension |
Tensile Strength |
Crush |
Min. Bending Radius |
Cable |
|||
Short Term |
Long Term |
Short Term |
Long Term |
Dynamic |
Static |
|
|||
GJFBZY |
1 |
3.1x2.0 |
100 |
50 |
2000 |
700 |
30 |
15 |
9.6 |
GYC8ZY |
1 |
5.3x2.0 |
700 |
350 |
2000 |
700 |
240 |
120 |
21.5 |
GJFBZY |
2 |
3.1x2.0 |
100 |
50 |
2000 |
700 |
30 |
15 |
9.8 |
GYC8ZY |
2 |
5.3x2.0 |
700 |
350 |
2000 |
700 |
240 |
120 |
21.7 |
GJFBZY |
4 |
3.1x2.0 |
100 |
50 |
2000 |
700 |
30 |
15 |
10 |
GYC8ZY |
4 |
5.3x2.0 |
700 |
350 |
2000 |
700 |
240 |
120 |
22 |
1. The typical values in the table may be adjusted accordingly;
2. Different specifications are available upon request.
Environmental Properties
Temperature Range -20°C~+60°C
Environmental Standards RoHS compliant
Fire Protection Meet the requirements of IEC 60332
Transmission Properties
Fiber Type |
SM(Bend Resistance)(1310nm/1550nm) |
Maximum Attenuation(dB/km) |
0.8/0.6 |
Typical Attenuation(dB/km) |
0.4/0.3 |
Minimum Bending Radius(mm) |
15 |
Other fiber types are available upon request.
