Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Communication Cable > Hot Sale High Speed Lan Cable Splitter

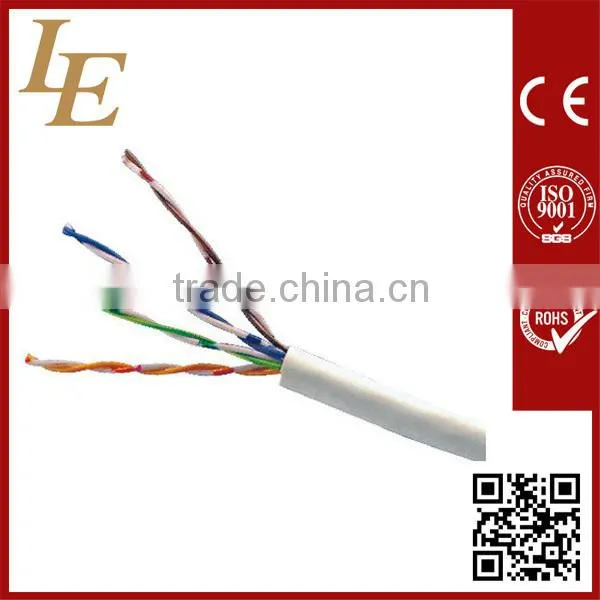

Hot Sale High Speed Lan Cable Splitter

Negotiable MOQ: 10 Cartons (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Model Number:

UTP5E

Contact Supplier Request Quote Chat Now

Ningbo Latitude International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name LE

Model Number UTP5E

Type Cat 5e

Number of Conductors 8

Specifications

High speed lan cable splitter
1.UTP/FTP
2.CU/CCA available
3.UL/CE/ROHS/ISO9001/SGS
4.Factory,source,cheap with good qua

Product Description

High speed lan cable splitter

Products

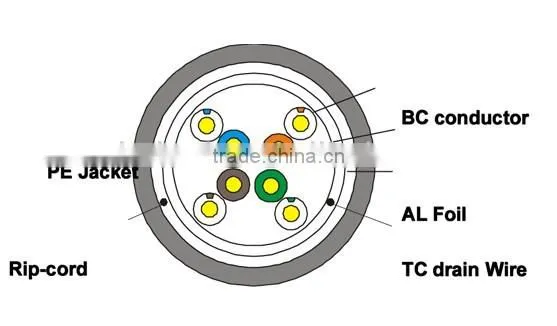

1. This kind of cable use bare copper to be the center conduction with the specification is 24AWG and PE to be the dielectric.

The jacket is made of fireproof material, which is so meanful to the Cat.5e communication;

2. This Cat.5e UTP cable is conform to the SIO/IEC, TIA/EIA and EN standards and the electrical characteristics are exceed the

lastest Cat.5e standards;

3. LSZH: means “Low smoke zero halogen”, which is the symbol of environmental protection;

Description:
Rated temperature:60°C,75°C,90°C
Reference standard:UL444,UL1581
Solid bare copper conductor
PVC/LSZH jacket, RoHS/REACH compliant
Comply to TIA/EIA-568-C.2-10,IEC61156-5,
EN50173&IEC11801
Operating temperature:-30~+50°C
Minimum bending radius: 8D

Electrical Characterstics
1. Impedance: 100±15;

2. Static electric capacity: max:17.1nf/kf;

3. Resisitance: max:28.6/kf;

4. Unbalance resisitance: max 5%;

5. Unbalance capacity: max 330pF/100m;

6. Roted communicate rate: 65%

Physical Charactersitcs

1. Copper diameter: 24AWG

2. Outer diameter: 5.0mm

3. Weight: 10.5kg/kft

4. Minimum bend radius: O.D.*4-6

5. Maximum pulling tension: 10.0

6. Jacket material: PVC/LSZH

7. Roted temperature: -20~60°C

Application:
VoIP
ISDN
Token
100M TP-PDM
Analog and Data Video
TR-16 Active and Passive
155M/622M/1.2GATM
IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; 10GBase-T

Packaging & Shipping

product name	Packing Type	Packing(mm)		Packing		Dimension(cm)			QTY/Container
product name	Packing Type	GIFTBOX	CARTON	GIFTBOX	CARTON	L	W	H	20GP	40HQ
UTP CAT5E	IN GIFTBOX	363620	43.53838	305m/roll	2roll/ctn	43.5	38	38	1000	2450
FTP/SFTP CAT5E	IN CARTON	NO	393239.5	NO	305m/roll	39	32	40	1200	3000

Our Services

Why choose us?
1. 100% manufacturer selling
2. Wholesale/ Customize sample/OEM are available
3. Competitive price
4. High product quality ,Strict quality control
5. Fast Delivery: 20 working days after receipt of 30% deposit
6. Best service !
