Help CenterType 82 3 Pole Manual Reset High Limit Thermostat
Related Products
-
Type 35ER Energy RegulatorUS$ 5 - 7MOQ: 10000 Parcels -
Type Y02N Cabinet Thermostat DIN Rail MountingUS$ 7 - 10MOQ: 1000 Parcels
-
Type Y03 IP44 Housing Bulb and Capillary ThermostatUS$ 6 - 9MOQ: 1000 Parcels
-
Type Y04 IP44 Housing Rod ThermostatUS$ 6 - 9MOQ: 1000 Parcels
-
Type Y05 IP44 Housing Rod Thermostat, for Swimming PoolsUS$ 5.5 - 8.5MOQ: 1000 Parcels
Specifications

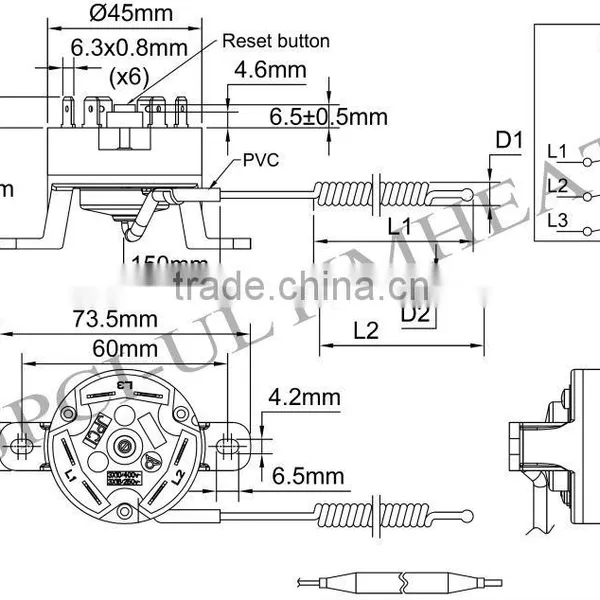

3 pole manual reset high limit, fail safeMain features: Fail safe, manual reset, with capillary length 250mm or 900 mm, 3 pole contacts open on temperature rise temperature range from 60°C to 170°C
Housing dimensions: dia 45 x 44.3 mm
Capillary: copper, capillary length 250mm or 900 mm, 150 mm long PVC sleeve on capillary. Capillary minimum bending radius 5 mm. For technical reasons, we do not recommend to use capillary length longer than 900 mm.
Bulb: Copper, corkscrew type for temperatures from 60 to 130°C(140 to 266°F),tubular dia 6 mm from 130°C to 170°C (266 to 338°F).
Temperature sensing element: Liquid-filled thermostatic assembly whose boiling causes tripping of the contact. Therefore,unlike liquid filled systems, these thermostats are sensitive to atmospheric pressure, and their reaction time is slower.
Terminals: 6.35 x 0.8 quick connect terminals Adjustment: fixed setting
Mounting: Backside legs, 2 M4 screws, holes distance 60 mm

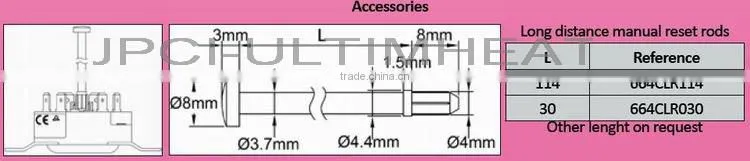

Manual reset: fail safe action, center button
Rating: 3 x 16A 250VAC, 3 x 10A 400VAC, resistive (10000 cycles)
3 x 25A 250VAC, 3 x 16A 400VAC (300 cycles)
Contacts: ST, open on temperature rise (snap action contact)
Max ambient temperature on head: 150°C(302°F)
