Specifications
Set point adjustable rod thermostat, IP44 commercial housingwith plastic pocket, for corrosive water and swimming pools
Y05
Main features:SPDT contact, external knob, liquid filled rod, located inside a backside mounted plastic pocket.
Adjustment ranges: 4-40°C(40-105°F)
Mounting: by the ½”NPT pocket fitting

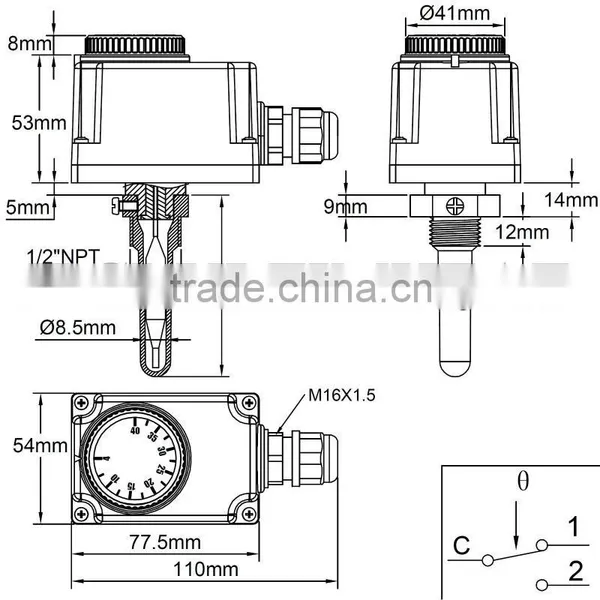

Housing: IP44, 77,5 x 54 x 53mm, (Knob and cable gland not included), black PC-ABS, UL94V0. High impact and UV resistance. Stainless steel
wall mounting plate, with 2 plastic lugs.
Electrical input: M16 cable gland.
Temperature Adjustment: With °C printed knob.°F printed knobs available in option
Rod length: 97 mm
Electrical connections: screw terminals and external ground terminal
Electrical rating:
- Open on temperature rise contact (C-1) 16A(2.6) 250VAC
- Close on temperature rise contact (C-2) 6A(0.6) 250VAC
- Electrical life >100.000 cycles.
Cannot be used in 400VAC.
Reference
°C |
°F |
Differential °C (°F) |
Max temperature on Temperature rod °C (°F) |
||
range (°C) |
°C knob |
Temperature range (°F) |
°F knob
|
||
4-40°C |
Y057GA004040P10P |
40-105°F |
Y057GA004040P10Q |
1,5 (-0+2) °C 3 (-0+3,5)°F |
60°C (140°F)
|
