Specifications
IP30 enclosures and thermostatic controlsElectrical cabinet ambient temperature thermostats,
Din Rail mounting, type Y02N
Main features: These models have been designed to control the temperature inside electrical cabinets, being mounted on their DIN rail. Their SPDT contact allows their use to control a cabinet heater, a fan or a filter fan, or a cooling system.
Temperature range -10+50, to +20+80°C
Set point adjustment: knob
Sensing element: bimetal
Contact type: snap-action contact, open or close on temperature rise, 10(2)A 250VAC, 15(2)A 120VAC
Electrical life: > 10.000 cycles at rated values
Contact resistance: < 10mOhm
Electrical connection: 3 screw terminals, for 1.5 mm² wires
Mounting: Clip for 35mm DIN rail, EN50022
Casing: UL94 V0, PC-ABS, RAL 1010 light grey

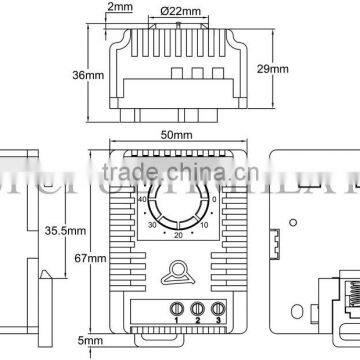

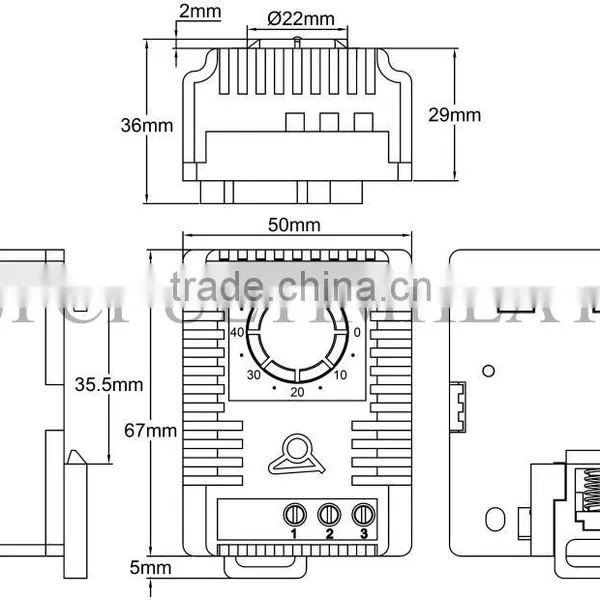

Dimensions: 67 x 50 x 35 mm
Ingress protection: IP30
Reference
°C | ||
Temperature range (°C) |
Differential (°C) |
References |
-10+50°C |
4°C±2°C |
Y02NAC-10050114L |
-10+20°C |
4°C±2°C |
Y02NAC-10020114L |
+5+35°C |
4°C±2°C |
Y02NAC005035114L |
0+60°C |
4°C±2°C |
Y02NAC000060114L |
+20+80°C |
4°C±2°C |
Y02NAC020080114L |
°F | ||
Temperature range (°F) |
Differential (°F) |
References |
15-120°F |
7±2°F |
Y02NAC-10050114P |
15-70°F |
7±2°F |
Y02NAC-10020114P |
40-95°F |
7±2°F |
Y02NAC005035114P |
30-140°F |
7±2°F |
Y02NAC000060114P |
70-180°F |
7±2°F |
Y02NAC020080114P |
