Help CenterType 2PE Electronic Thermostat
Related Products
-
Type 2DN Digital Display Electronic ControllerUS$ 18 - 22MOQ: 500 Parcels -
Type 4C 3 Pole Manual Reset Disc ThermostatsUS$ 6.5 - 9MOQ: 1000 Parcels
-
Type 82 3 Pole Manual Reset High Limit ThermostatUS$ 6.5 - 9MOQ: 1000 Parcels
-
Type 35ER Energy RegulatorUS$ 5 - 7MOQ: 10000 Parcels
-
Type Y02N Cabinet Thermostat DIN Rail MountingUS$ 7 - 10MOQ: 1000 Parcels
Specifications
Electronic thermostat, multi range,control and manual reset action,for incorporation
Main features:

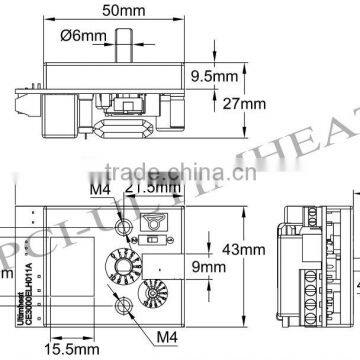

This electronic thermostat for incorporation has been designed to replace electromechanical thermostats. It is mounted with two screws M4 at the same distance 28 mm, uses a 6mm dia. shaft with 4.6mm flat with thesame length, and its rotation angle is 270 °. The temperature ranges are the same as the bulb and capillarythermostats, which he can use the graduated knobs. Its electrical rating (16A) is identical.It additionally features adjustable temperature differential, and heating or cooling relay output setting, and control or manual reset action can be set.
Action: On-OFF

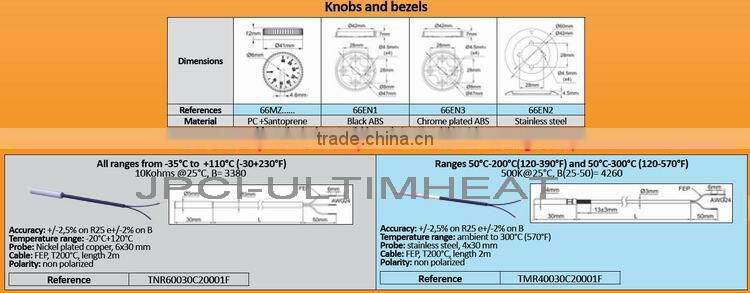

Temperature sensors:
- NTC thermistor, 10Kohms @25°C, B(25-50)= 3380, for temperatures ranges from -30°F (-35°C) to 250°F (120°C).
- NTC thermistor, 500K@25°C, B(25-50)= 4260, for temperature ranges 120-390°F (50-200°C) and 120-570°F (50-300°C).
Accuracy: +/-1% of scale (NTC sensor tolerances not included)
Size: 60 x 43 x 23 mm
Temperature adjustment ranges:
Temperature range selection is made by dip switch on the printed circuit. 270° angulation set span
Control or manual reset selection: can be selected with a miniature dipswitch on the circuit
Power supply: 90 to 240V, 50Hz or 60Hz
Relay output: SPNO, 16A250V res., 100000 cycles.
Relay action: Heating or cooling, open or close on temperature rise output relay action can be selected by a dip switch with access from front ide
Ambiant: -20+50°C, 10-85% RH
Power: <2W
Electrical connections:
- Power supply and power relay: 2.5 mm² screw terminal
- Temperature sensor: 1.5 mm² screw terminal

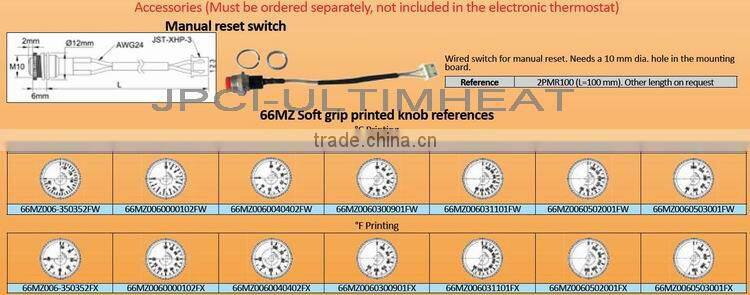

- Manual reset: with miniature JST connector
Adjustment shaft: the thermostat is shipped with a dia. 6mm with 4.6 mm flat shaft, length 11 mm, assembled.
Included spare parts: a 28 mm shaft and a screw driver adjustment shaft.
Standards: Comply with EMC (CE), ROHS and ReachTemperature differential: Adjustable, by potentiometer with front access
Temperature didderential : Adjustable, by potentiometer with front access
Temperature adjustment ranges °C (°F) |
Differential adjustment °C (°F) |
-35+35°C (-30+95°F) |
0.5~5.5°C (0.9~10°F) |
0-10°C (32-50°F) |
0.5~2.5°C (0.9~4.5°F) |
4-40°C (40-105°F) |
0.5~2.5°C (0.9~4.5°F) |
30-90°C (85-190°F) |
0.5~5.5°C (0.9~10°F) |
30-110°C (85-230°F) |
0.5~5.5°C (0.9~10°F) |
50-200°C (120-390°F) |
0.5~5.5°C (0.9~10°F) |
50-300 °C (120-570°F ) |
1~10°C (1,8~18°F) |
Reference
Reference |
2PE2N6 |
