Corrugated Copper-tube 7/8" superflexible feeder cable
- 50000 Roll / Rolls per Month
- Ningbo OR Shanghai
- T/T D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Sichuan, China | Brand Name: | Hone/OEM/ODM | Model Number: | Superflexible Coaxial Cable |
Type: | Coaxial | Number of Conductors: | 1 |
Product Description
Corrugated Copper-tube Outer Conductor 7/8" superflexible coaxial cable
our service
1. OEM / ODM service
2. Free sample for evaluating
3. UL,ROHS,CE, ISO,CCC, FCC certificate
4. Stirctly quality contral, best price, best service
Standard Jacket:HHTAY-50-21 (7/8″Superflexible)
Fire retardant Jacket:HHTAYZ-50-21 (7/8″ Retardant Superflexible)
Characteristics
Low Attenuation, low VSWR, High expansion, high power rating, Excellent environmental performance and Mechanical Performance.
Application
50 ohm corrugated copper-tube Outer Conduct coaxial cable is widely used in follow system:
- the 3rd Generation Mobile communication system: TD-S CDMA CDMA2000 and WCDMA
- the 2nd Generation Mobil communication system: GSM and CDMA
- Wirless Local call system
- Am adn Fm Broadcasting system
- Satellite Communication system
- Data Transmitting system
- Microwave Communication system
Construction
Inner conductor Corrugated Copper-tube Diameter(mm) 9.40±0.10
Insulation 3 layers of Insulation Diameter(mm) 22.0±0.3
Outer conductor Corrugated Copper-tube Diameter over copper
Outer conductor (mm) 24.90±0.30
Diameter over trough(mm) 21.60±0.30
Pitch(mm) 6.80±0.30
Jacket
Thickness(mm) | 1.3±0.1 |
Diameter(mm) | 27.6±0.2 |
Engineering data
Weight(kg/km) | 450 |
Minimum Bending Radius (mm) | |
Single Bending | 90 |
Multiple Bending | 150 |
Temperature range(℃) |
|
Standard jacket | -40~+70 |
Fire Retardant Jacket | -25~+70 |
Electrical Performance
Impedance (Ω ) | 50±2 |
Capacitance (pF/m) | 76±2 |
Velocity (%) | 88 |
Dc Resistance(20℃,Ω /km) | |
Inner Conductor | 2.97 |
Outer Conductor | 1.31 |
Dc Breakdown, volts(V)6000 Peak power rating(kW) 90 Maximum

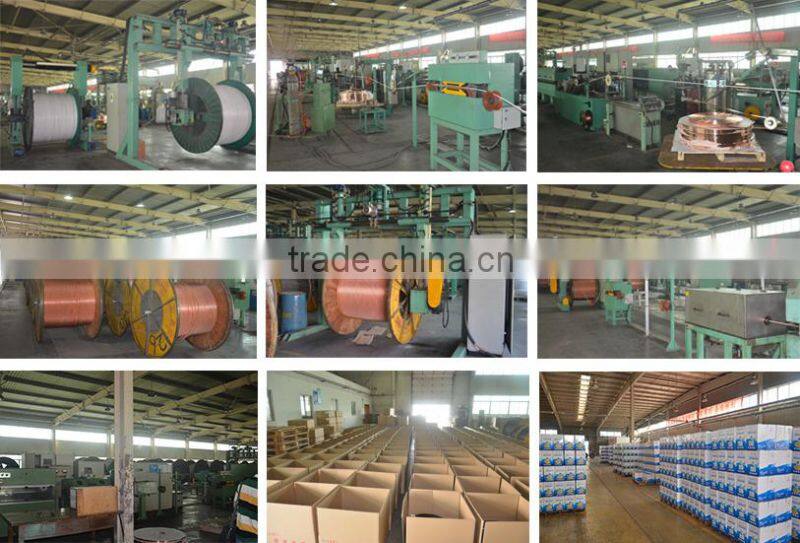

Mass production line
Detection system
Welcome to vist our factory. pls contact our sales Tony He
Company information
Sichuan Hone technology co.,ltd is professional cable system manufacturer in china. Hone has cooperated with severl top china telcom enterprises for cable system. Acumulated more than 30 years of reaserch and development experience. We buit up manufacturer base more than 10000-sq.m in Sichuan and Zhejiang. The annual production is as follows: 3.5 million Pairs kilometers of optical cable, 70,000 kilometers of coaxial cable, and 800,000 boxes of digital cable. Now Hone also make holding of a professional network switch manufacture who has kept independent innovation. Hone will provide more advantage telecom products for clients.Now Hone is developing oversea market actively. Priciple of Hone is contributing good quality product and service to worldwide clients.
FAQ
Q: Can I buy many items of cabling system products but the quantity of single product can not reach the Minquantiy.
A: Yes .Of course! we are the professional cabling system manufacturer,providing the whole system solution. But you'd better tell us that order list do you want? Sometimes we could find the way to the argreement.
Q: What is the packing of the goods come?
A: You can check the items description and pictures. If the said or showed you the pictures with packing or not. Usually if the pictures showed you with packing, you will get the goods with packing. If the pictures showed you without packing. You will get the goods with poly bag packing.
Q: How long sending out the goods?
A: Usually, if the goods in stock. we will sending out the goods within 24 hours after get the payment (except Saturday, Sunday and holidays). But sometimes in rare cases. maybe the goods not in stock. We will leave a message to you let you know and we will sending the goods ASAP.
Q: How to do if i get the goods it not I want?
A: Please no hurry, Please contact with us at first. We will give you good reply.
shipemnet
1.Worldwide airtransportation via Fedeux,Dhl,Tnt.Ups,Ems. Sea-shipping is via our profession forward.
2. Orders processed timely after the payment verification.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
4. The images shown are not the actual item and the actual product follow the order confirmation.
5. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
6. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is clients satisfaction!
7. Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery
