Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > 300/500V H05V-U/-K Single Core Electrical Wire With PVC Insulation

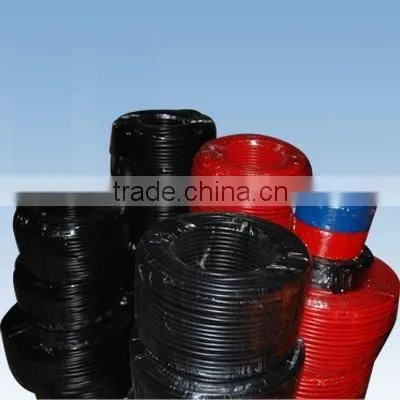

300/500V H05V-U/-K Single Core Electrical Wire With PVC Insulation
US$ 0.3 - 1
MOQ: 5 Kilometers
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
dunyuan
Model Number:
H05V-U
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
300/500V Single Core Electrical Wire With PVC InsulationUS$ 0.3 - 1MOQ: 5 Kilometers -
300/300V VDE Approval H03VV-F PVC Electrical CableUS$ 0.3 - 1MOQ: 5 Kilometers
-
300/500V Single Core Electrical Wire With PVC InsulationUS$ 0.3 - 1MOQ: 5 Kilometers
-
300/500V H05V-K Single Core Electrical Wire With PVC InsulationUS$ 0.3 - 1MOQ: 5 Kilometers
-
450/750 H07V-K Single Core Electrical Wire With PVC InsulationUS$ 0.3 - 1MOQ: 5 Kilometers
Place of Origin
Zhejiang, China
Brand Name
dunyuan
Model Number
H05V-U
Type
Insulated
Application
Overhead
Conductor Material
Copper
Conductor Type
Stranded
Insulation Material
PVC
Specifications
(1) we produce many kinds of single core electrical wire since1996(2) CE,CCC approval
(3) PVC insulated wire:H05V-U,H0
H05V-U/-K single core electrical wire
Rated Voltage: 300/500V
Cores:1
conductor: copper
insulation:PVC, temperature: -15~70 C
Approval: CE ,CCC
standard: BS6004, IEC60227,VDE0250
Purpose:
H05V-U/-K as single core for internal wiring of devices as well as protected laying within and on shiners. Laying within pipes on-wall and in-wall permitted for signal facilities.
Line core number and conductor nominal section |
Conductor Construction n/mm |
Norminal thinkness of insulation(mm) |
Overall Diameter (mm) |
At 20 DC Resistance of conductor (Ω/km) |
|
0.5 |
16/0.20 |
0.6 |
2.20±0.1 |
39.0 |
|
| |||||
0.75 |
24/0.20 |
0.6 |
2.40±0.1 |
26.0 |
|
| |||||
1.0 |
32/0.20 |
0.6 |
2.55±0.1 |
19.5 |
|
1.5 |
48/0.20 |
0.7 |
3.15±0.1 |
13.3 |
|
2.5 |
77/0.20 |
0.8 |
3.70±0.1 |
7.98 |
|
Update Date:2010-12-16 23:44:58
