dc Water Pump 24v

Name: dc Water Pump 24v
Brand: ZHUOGAO
SKU: 113590721
Availability: InStock

US$ 42 - 46 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

ZHUOGAO

Model Number:

ZGP5020-1

Contact Supplier Request Quote Chat Now

Foshan Zhuogao Motor Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Rongqi/Shunde

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name ZHUOGAO

Model Number ZGP5020-1

Theory Centrifugal Pump

Structure Single-stage Pump

Usage Water

Power Electric

Standard or Nonstandard Standard

Fuel Other, Electric

Pressure Low Pressure

Application Submersible

12v/24vdc brushless water pump mini irrigation/garden watering pump

1.Rated Power :6VDC 10-18W,12VDC 10-40W,24VDC 20-80W

2.Application:Solar water heater, ground heating, water supply of high building, garden watering etc.

DC Brushless Water Pump

Product Description

¤ Product Parameter
Model Character			ZGP5020-1
Working voltage range			6VDC-24VDC
Rated power			6VDC 10-18W,12VDC 10-40W,24VDC 30-95W
Static water head			2-12 meters
Static flow rate			10-35L/min
Lifespan			Continuous operation under normal working surrounding>20000H
Working Environment			PH value: PH5-10(weak acid and weak base), workable both on land and in water.
Max noise			Under normal working condition,(1meter over the test instrument)<50dB
Max working temperature			Under room temperature surroundings, fluid medium temperature≤100℃ (
Application			Solar water heater, ground heating, water supply of high building, garden watering etc.
Color			Black (Can be customized according to your requirement)
Outlet direction			Water supply of high building, watering of garden, irrigation, etc
Dimension				IP grade	Inlet		Outlet		Remarks
Length(mm)	Width(mm)	Height(mm)			OD(mm)	ID(mm)	OD(mm)	ID(mm)	Inlet and outlet have screws
63	63	146		IP68	G1″ Standard threaded rod	φ25	φ25	G1″ Standard threaded rod

¤ Characteristic Graph
Remarks: The graph is just for your reference, the final one can be based on customers` request.

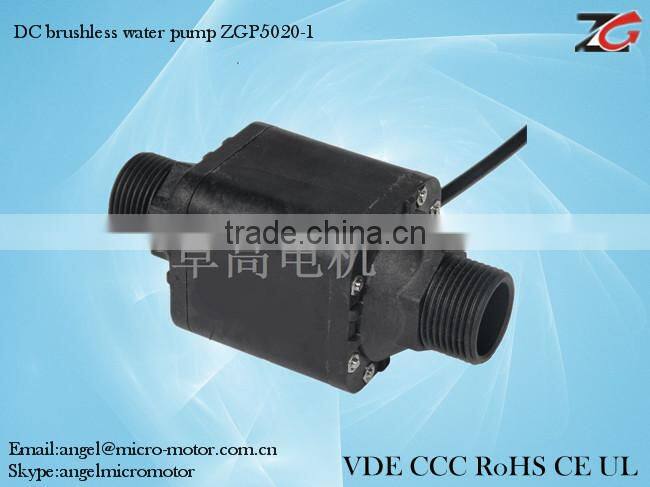

¤ Product Picture

Model No.: ZGP5020-1

Product Application

DC Brushless Water Pump main application fields:

1. Household application

Portable bath machine, mobile air conditioner, small fountain, etc.

2. solar photovoltaic products
3.. Medical equipment
4. Automotive Products
5. agriculture, forestry irrigation
6. Industrial equipment

Some application as below show:

ZGP5010-2 application for Hot water circulation & cooling, Electric Vehicles, solar water heater, etc.

Product Feature:

Advantage technology

1. better controllability, wide speed range

2.high reliability, long service life, without regular maintenance.

Company Information

About us

FAQ

Q: What's your payment terms?
A: Usually we accept T/T ,Western Union or L/C

Q: What's your delivery time?
A. 1.The stock samples can be sent to you within 3-5days by international express after received
2.The batch order can be shipped to you in about 15-20days after order confirmation (by vacuum or by sea)

Q: What's your main products of your company?
A: We specialized in all kinds of DC Brushless water pump(solar water pump, coffe maker pump), shaded pole motor YJ61 SERIRES, 48 SERIES, Oven motor for over 10 years with excellent quality and competitive.

Q:How can I choose the most suitable pump?
A: Please tell me your detailed flow rate, voltage, application and so on, then I will match the most appropriate pump for you, or you can choose the exact model in the product manual.

Q: How long is your pump lifetime?
A: Continuous operation under normal working surrounding>20000H
