Semi-automatic PET Bottle Blower
US$ 5,000 - 7,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Application:
Bottle
Plastic Processed:
PET
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PET Bottle BlowerUS$ 5,000 - 7,000MOQ: 1 Piece -
High Quality Bottle Blow Moulding MachineUS$ 5,000 - 7,000MOQ: 1 Piece
-
High Quality Bottle Blow Molding MachineUS$ 5,000 - 7,000MOQ: 1 Piece
-
PET Stretch Blow Moulding MachineUS$ 5,000 - 7,000MOQ: 1 Piece
-
High Quality PET Blowing MachineUS$ 5,000 - 7,000MOQ: 1 Piece
Condition
New
Application
Bottle
Plastic Processed
PET
Blow Moulding Type
Stretch Blow Moulding
Automatic
Yes
Place of Origin
Zhejiang, China
Brand Name
BAIXING, Baixing
Model Number
BX-B, BX-B
Voltage
380V
Certification
CE
Warranty
1 YEAR
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Semi-automatic PET bottle blowersemi-automatic
Bottle size: 0.1-2.0L
700-1200BPH
1. BX-B Semi-automatic PET bottle blowing machine is suitable to produce water and soft drink bottles from 100-1500ml.
2. It is also widely used to produce comestic,medical,pesticide bottles,etc.

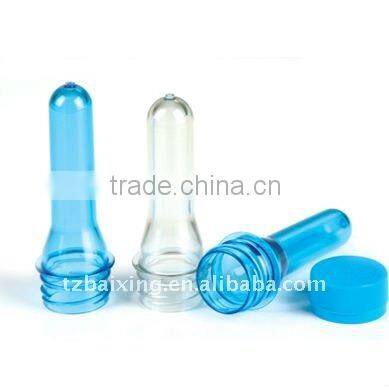

3. Feeding system carries the preforms automatically.Infrared lamps adopted in the pre-heater to heat the PET preforms.
4. Semi-automatic process with low investment,high efficiency,quick and safe operation,easy trouble shooting,maintenance and other advantages.
Technical parameter:
ITEM |
UNIT |
BX-B |
Cavity |
pcs |
2 |
duct capacity |
L |
0.05 |
duct capacity |
L |
2.0 |
Min.inner neck diameter |
mm |
15 |
Max.inner neck diameter |
mm |
38 |
duct diameter |
mm |
120 |
duct height |
mm |
320 |
Max.mould thickness |
mm |
110-230 |
Mould opening stroke(Adjustable) |
mm |
160 |
Theoretical output |
bph |
700-1200 |
Operating pressure |
Mpa |
0.8-1.0 |
Blowing pressure |
Mpa |
1-3 |
Max.heating power |
kw |
14 |
Machine weight |
kg |
650 |
Heater weight |
kg |
230 |
Machine dimension(L*W*H) |
m |
1.5×0.7×1.85 |
Heater dimension(L*W*H) |
m |
1.85×0.7×1.65 |
