Home > Products > Semi-automatic blow molding machine > PET blow molding machine semi automatic,PET blow molding machine
PET blow molding machine semi automatic,PET blow molding machine
- 100 Piece / Pieces per Month
- Ningbo
- T/T Credit Card
- High speed Plastic bottle making 0.5L- 2L 6000BPH Automatic PET bottle blow blowing mold molding machine prices
- Factory Price High Quality Automatic Fast Plastic PP HDPE Bottle Blowiing Jerrycan Extrusion Blow Molding Machine
- Semi Automatic PET Plastic Bottle 5 Gallon 20 Liter Blow Molding Machine Price
- custom design semi-automatic preform pet plastic bottle blowing blow molding machine high speed
- Semi-automatic Two Cavity Bottle Making Machine Blow Molding Equipment
- Plastic bottle blowing machine Beverage bottle blowing machine Medicine bottle blowing machine
Product Details
Condition: | New | Application: | Bottle | Plastic Processed: | PET |
Blow Moulding Type: | Stretch Blow Moulding | Automatic: | Yes | Place of Origin: | Zhejiang, China |
Brand Name: | BAIXING, Baixing | Model Number: | BX-B, BX-B | Voltage: | 380V |
Certification: | CE | Warranty: | 1 YEAR | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications

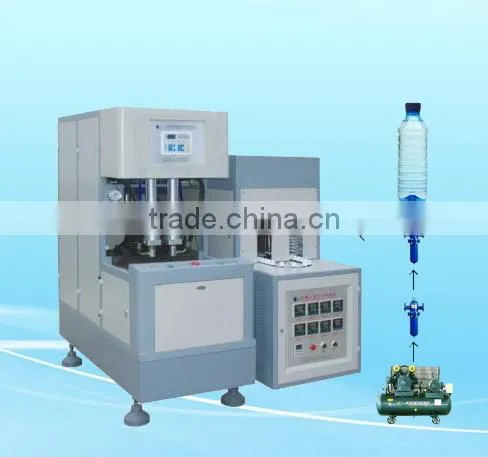

Semi-automatic PET blow molding machine2 cavity
Bottle size: 0.1-2.0L
700-1200BPH
1. BX-B Semi-automatic PET bottle blowing machine is suitable to produce water and soft drink bottles from 100-1500ml.
2. It is also widely used to produce comestic,medical,pesticide bottles,etc.
3. Feeding system carries the preforms automatically.Infrared lamps adopted in the pre-heater to heat the PET preforms.
4. Semi-automatic process with low investment,high efficiency,quick and safe operation,easy trouble shooting,maintenance and other advantages.
Technical parameter:
ITEM | UNIT | BX-B |
Cavity | pcs | 2 |
duct capacity | L | 0.05 |
duct capacity | L | 2.0 |
Min.inner neck diameter | mm | 15 |
Max.inner neck diameter | mm | 38 |
duct diameter | mm | 120 |
duct height | mm | 320 |
Max.mould thickness | mm | 110-230 |
Mould opening stroke(Adjustable) | mm | 160 |
Theoretical output | bph | 700-1200 |
Operating pressure | Mpa | 0.8-1.0 |
Blowing pressure | Mpa | 1-3 |
Max.heating power | kw | 14 |
Machine weight | kg | 650 |
Heater weight | kg | 230 |
Machine dimension(L*W*H) | m | 1.5×0.7×1.85 |
Heater dimension(L*W*H) | m | 1.85×0.7×1.65 |
