BX-1500,newly developed by our company,is a two-step hand feeding automatic PET plastic bottle blowing machine which can be operated by hands or conveyor to feed the preforms.BX-1500 is one cavity and the maximum volume of the bottles is 1.5L.It can blow various bottles in shapes:carbonated,mineral,pesticide,cosmetics,wide-mouth and other packing containers which is made of PET.
Settings:
a).PLC colour display:BOTHFIT(Joint,Taiwan)
b).Cylinder:MOHE(Joint,Japan)
c).Blowing Valve:PARKER(Switzerland)
d).Acting Valve:AIRTAC(Taiwan)/YSC(Korea)
e).Photoelectric Switch: Korea
f)Other electric parts are all world-famous brand
Features:
A.Stable performance with advanced PLC.
B.Conveying preforms by hands.

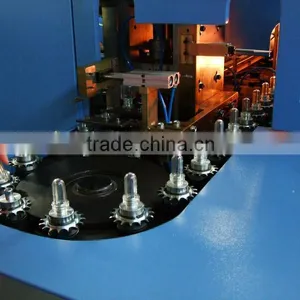

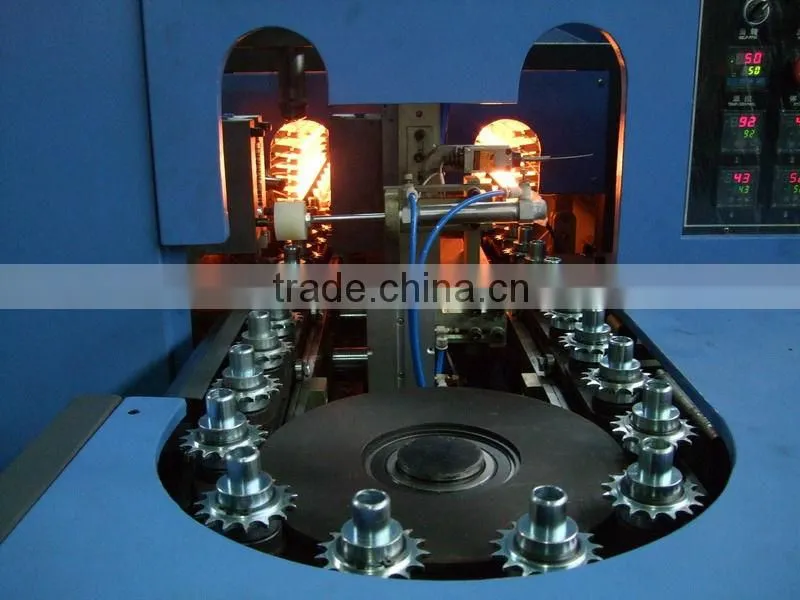

C.Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
D.High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
E.High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
F.No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
G.Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
H.Strong clamping force with high pressure and double crank links to lock the mold.
I.Two ways of operating: automatic and manual.
J.Safe,reliable and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
K.Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
L.Contamination is avoided for the bottle body.
M.Ideal effect of the chilling with the chilling system.
N.Easy installation and starting
O.Low rejection rate: less than 0.2 percent.
Technical parameter:
| TYPE | ITEM | BX-1500 |
| CONTAINER | Number of cavity | 1 |
| Theoretical output | 1000-1400pcs/hr | |
| ntainer volume | 1.5L | |
| Max.neck diameter | 80mm | |
| ntainer diameter | 105mm | |
| ntainer height | 350mm | |
| ELECTRICAL SYSTEM | Number of lamp | 16 pcs(1500w/pcs) |
| Max.heating power | 24kw | |
| Installation power | 24.5kw | |
| Actual power consumption | 10-12kw | |
| AIR SYSTEM | Operatating pressure | 0.7mpa |
| Low pressure consuming | 900-1200 Ltr/min | |
| Blowing pressure | <3.5mpa | |
| High pressure consuming | 1000-1200Ltr/min | |
| WATER CHILLER | Operating pressure | 0.5-0.6mpa |
| Temperature | 10 degrees | |
| Consuming | 3600kcal/hr | |
| Flow rater | 20Ltr/min | |
| MACHINE | Machine dimension | 2.4×1.6×1.8(m) |
| Machine weight | 1.8T |
