Specifications

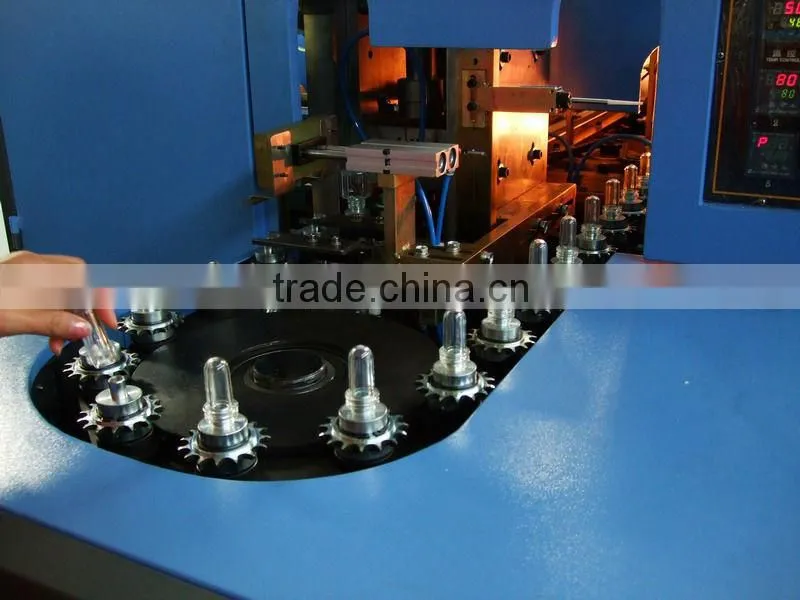

PET blow moulding machine,pet blow molding machinehand feeding
2 cavity
1400-2000pcs/hour
0.01-2.0L

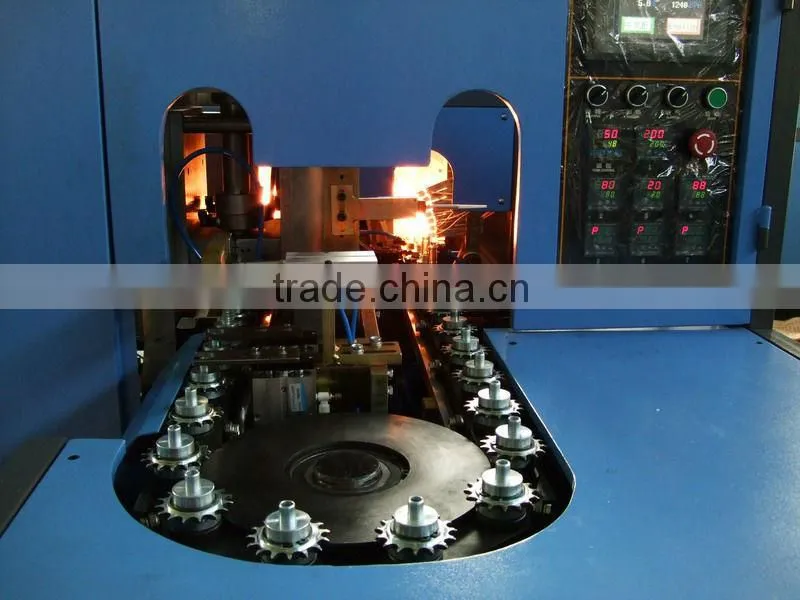

The feature of the BX-S1 Manual PET bottle blow moulding machine:
It has saved the cost to the maximum extent;It has lower rejection rate,higher production and more stable performance than the semi-automatic one and moreover,it is easy to run.Therefore,it will take the place of the semi-automatic blow moulding machines.
Main parts list:
a).PLC colour display:DELTA(Taiwan)
b).Cylinder:MOHE(Joint,Japan)
c).Blowing Valve:PARKER(Switzerland)
d).Solenoid Valve:YSC(Korea)
e).Photoelectric Switch:Korea/Japan.
f).Pressure regulator:AIRTAC(Taiwan)
Technical parameter:
TYPE |
ITEM |
BX-S1 |
BX-S1-A |
CONTAINER |
Number of cavity |
2 |
2 |
Theoretical output |
1600-2000 pcs/hr |
1400-2000 pcs/hr |
|
ntainer volume |
1.0L |
2.0L |
|
Max.neck diameter |
60mm |
60mm |
|
ntainer diameter |
80mm |
105mm |
|
ntainer height |
280mm |
350mm |
|
ELECTRICAL SYSTEM |
Number of lamp |
14 pcs |
16 pcs |
Max.heating power |
21kw |
24kw |
|
Installation power |
21.5kw |
24.5kw |
|
Actual power consumption |
10-14kw |
12-16kw |
|
AIR SYSTEM |
Operatating pressure |
0.8-1.0Mpa |
0.8-1.0Mpa |
Low pressure consuming |
1000-1200 Ltr/min |
1000-1200 Ltr/min |
|
Blowing pressure |
<3.5Mpa |
<3.5Mpa |
|
High pressure consuming |
1200-1500Ltr/min |
1200-1500Ltr/min |
|
WATER CHILLER |
Operating pressure |
0.5-0.6Mpa |
0.5-0.6Mpa |
Temperature |
10-12 |
10-12 |
|
Consuming |
3600kcal/hr |
3600kcal/hr |
|
Flow rate |
20Ltr/min |
20Ltr/min |
|
MACHINE |
Machine dimension |
2.5×1.65×1.8(m) |
3.0×1.75×2.1(m) |
Machine weight |
1.8T |
2.2T |
