Specifications
Fully automatic PET bottle blowing machine4 cavity
3000-4000BPH
Bottle size: 0.1-2.0L

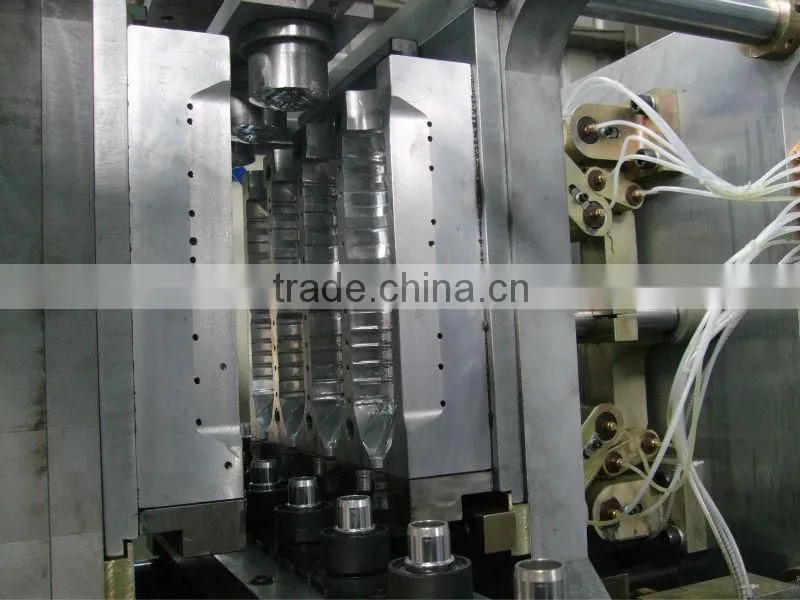

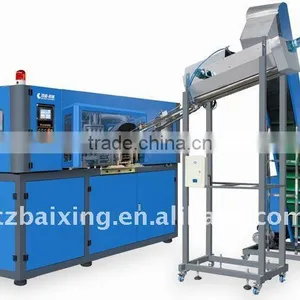

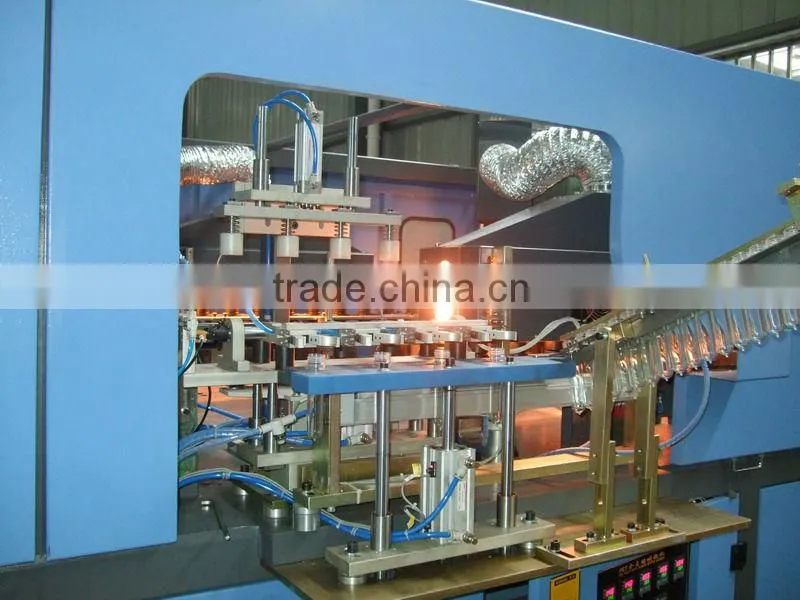

Fully automatic PET bottle blowing machine
Features:
1.Utilization of automatic central lubrication.
2.Compact space design for convenience of mold-conversion, repairing, and maintenance.
3.Minimized transfer pitch for increasing heating efficiency and saving energy.
4.Swift exchange design for preform mandrels.
5.Optimized air flow in the oven for stable heating process.
6.Easy to adjust, exchange and access heating oven; Protection for preform thread against heating.
7.Intact rotating robot grip with linear guider for right access, rapid motion; reducing adjustment and maintenance time.
8.Electronic inspector for ejecting faulty preform and bottles.
9.Fast,safe,and accurate cam-controlled blowing wheel for providing the best bottles.
10.Precise control of blowing technique to produce less-weighted bottle.
11.Smart design for quick conversion of blow mold.
12.Through finite element analysis to optimize modular design for reducing machine wearing and moving inertia.
13.Operating machine through touch panel; program protected by code lock.
Technical parameter:
ITEM |
UNIT |
BX-S4-A |
|
CONTAINER |
ntainer volume |
L |
2.0 |
Max.neck outer diameter |
mm |
38 |
|
ntainer diameter |
mm |
105 |
|
ntainer height |
mm |
350 |
|
Number of cavity |
pcs |
4 |
|
Theoretical output |
bph |
3000-4000 |
|
ELECTRICAL |
Max.heating power |
kw |
52 |
Installed power |
kw |
55 |
|
COMPRESSED AIR |
Operating pressure |
Mpa |
0.7 |
Low pressure air consuming |
L/min |
2000-2400 |
|
Blowing pressure |
Mpa |
<3.5 |
|
High pressure air consuming |
L/min |
2000-2400 |
|
WATER CHILLER |
Pressure |
Mpa |
0.3-0.5 |
Temperature |
degree |
10-12 |
|
Flow rate |
L/min |
30 |
|
MACHINE DIMENSION |
Size(L*W*H) |
m |
3.4×2.25×2.25 |
Weight |
kg |
3000 |
|
