Battery Equipment

Name: Battery Equipment
Brand: herolift
SKU: 113561699
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shanghai, China

Brand Name:

herolift

Shanghai Herolift Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shanghai, China

Brand Name herolift

Model Number GLA400-4-B-M

Power(W) 0.09KWDC power

Dimension(L*W*H) 1.8mx1.3mx0.35m

Certification CE, ISO9001

Warranty 12 MONTHS

Specifications

1. 12v battery equipment
2. Max.capacity 400kg.
3. CE product

battery equipment

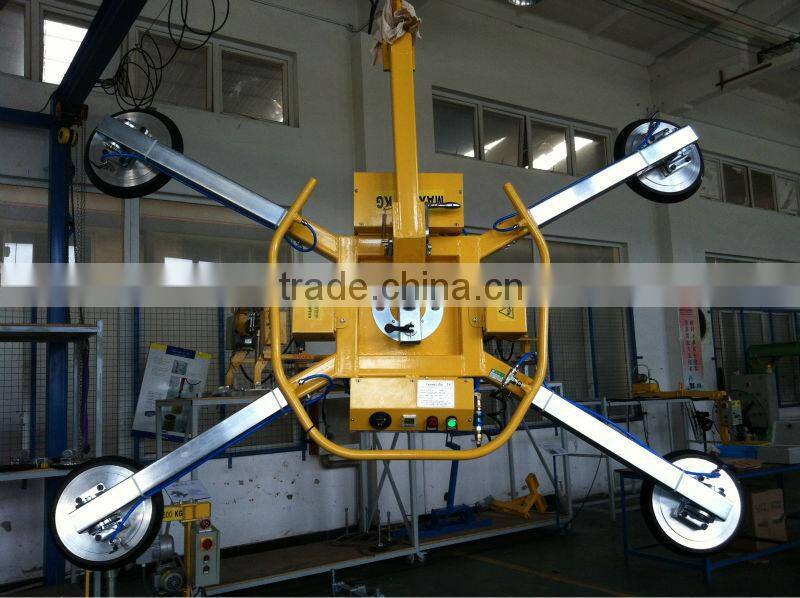

Glass lifting equipment /12v battery supply

Customer Glass sheet specification is:

(941)mm L x(1800)mm W x(3-25)mm T, Max. weight less than 400kg.

(1500)mm L x(3000)mm W x(6+6,8+12)mm T, Max. weight less than 400kg.

The equipment specifications as below:

Model Number: GLA400-4-B-M
Max. carrying capacity is 400kg ( a safety factor 4.0 include)
Description:

Designed for use with a crane or other hoisting equipment. The GLA400-4-B-M Lifer employs vacuum to hold a load for lifting, and provides Manual rotation, 360° edgewise, with locking at each quarter point and manual tilt, 90° between upright and flat for load manipulation.
Power Supply: Battery-12V, 4A
Capacity: Battery 7Ah
Vacuum pads diameter: 30cm nominal diameter. Lipped (P300FN)
Load capacity: (rated at [-60kPa] on clean, smooth, nonporous flat surfaces)
Per-pad: 423.9kg Safety suction force: 105kg
Maximum(w/4pads):1695.6kg Safety suction force: 423.9kg
Load Movement:

Manual rotation, 360° edgewise, with locking at each quarter point

Manual tilt, 90° between upright and flat, with automatic latching in upright position
Standard Features:

Low vacuum warning light

On-board battery and charger

Battery energy gauge

Vacuum gauge

Vacuum line filter

Vacuum reserve tank

Spring-mounted vacuum pads

Movable vacuum pad mounts

Vacuum pad extension arms
The design of vacuum lifter by our company is passed to EU CE 13155 passed. It is CE identification Product.
