Help CenterMaterial Handling Equipment for Steel Plant
Related Products
Specifications
material handling equipment for steel plant1. CE passed
2. Max weight is up to 500kg
Vacuum lift for SS sheet for sale /
material handling equipment for steel plant / Vacuum lifters for Sheet metal( surface is smooth, even, No air permeability)
The Vacuum lifter can be combined and operated with many different carrier facilities,such as crane,excavatos, wheel loaders, fork lifts.
Crane+ hoist+vacuum lifter
1. The model No.:BLB500-10-T
Apply the sheet metal/ aluminium plate for horizontal handling various panel length less than 6000mm, To processing the sheet metal in the workshop. matching with CNC cutting machine 6m, machine table size: 3000X1500, 4000x2000, 6000x2000mm.
The sheet metal specification as below.
within (1500-6000mm)Lx(1000-2000mm)Wx (1.5 -6mm)
Maximum weight: 200kg-500kg
2. Our equipment describtion:
1. The model model No.: BLB500-10-T.
Maximum carrying capacity 500kg ( a safety factor 2.0 include in theory )
2.There are 10 suction pads. Diameter 230mm.
3. The length of main beam is 4000mm, 2m on fixed. two telescopic on each side, length 1m. length of cross beam is 800mm.
4. Stable performance, Easy to maintain, Efficient, safe, quick, easy.
5. The suction pad can be adjustable, can be turned off and open individuallly.
6. The vacuum lifter is equipped with a buzzer and warning light units, in case of a power failure or vacuum leakage, an optical and an acoustic signal goes off immediately to warn the operator to do emergency operation.
7. The vacuum lifter is equipped with safety tank&Pressure switch warning, when the power is turned off in sudden, always can keep the workpiece not falling down for 5 minutes. Won’t bring about equipment damaged, etc Safe accidents.(EU CE standard for 5 minutes);
8. The design of vacuum lifter by our company is passed to EU CE 13155 passed.
It is CE identification Product.
3. Application:
Steel boards
Aluminum boards
Plastic boards
wood panel
4. Load Movement:
- Only Horizontal handling

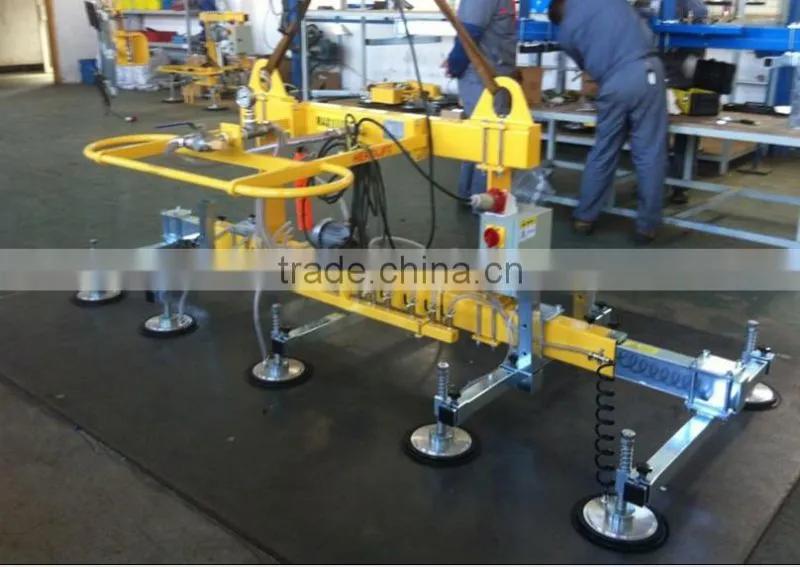

5. The object photos:
