Home > Products > Vacuum lifter for glass sheet > Battery Powered Vacuum Lifters
Battery Powered Vacuum Lifters
- Shanghai Port
- Money Gram
You May Like
Product Details
| Condition | New | Place of Origin | China | |
| Brand Name | Herolift | Model Number | GLA400-4-B-M | |
| Power(W) | 0.09KW | Certification | CE |
Product Description
Specifications
1. Battery powered vacuum lifters2. Max. capacity carrying 400kg
3. Handling without damaging

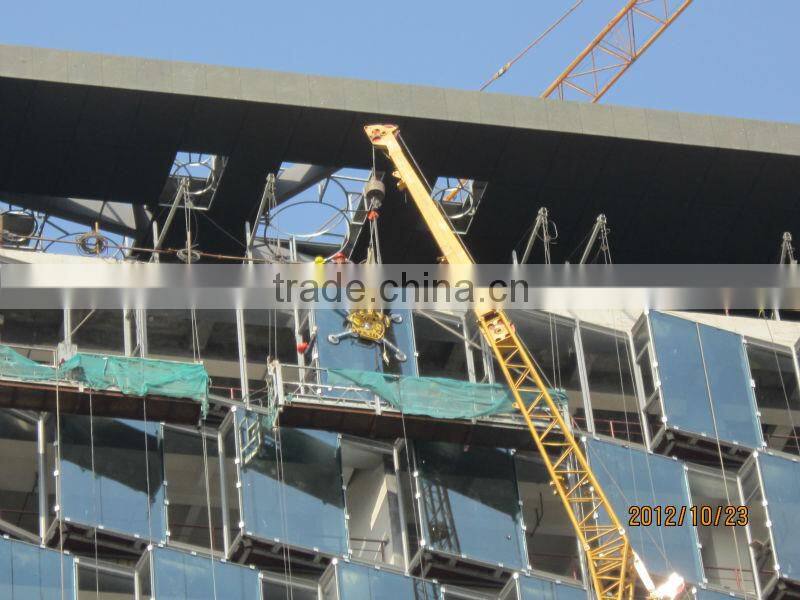

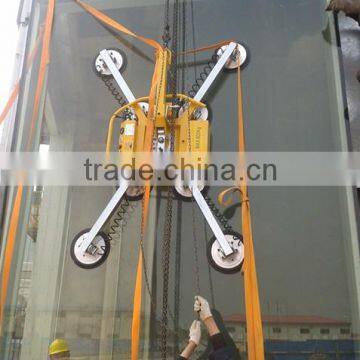

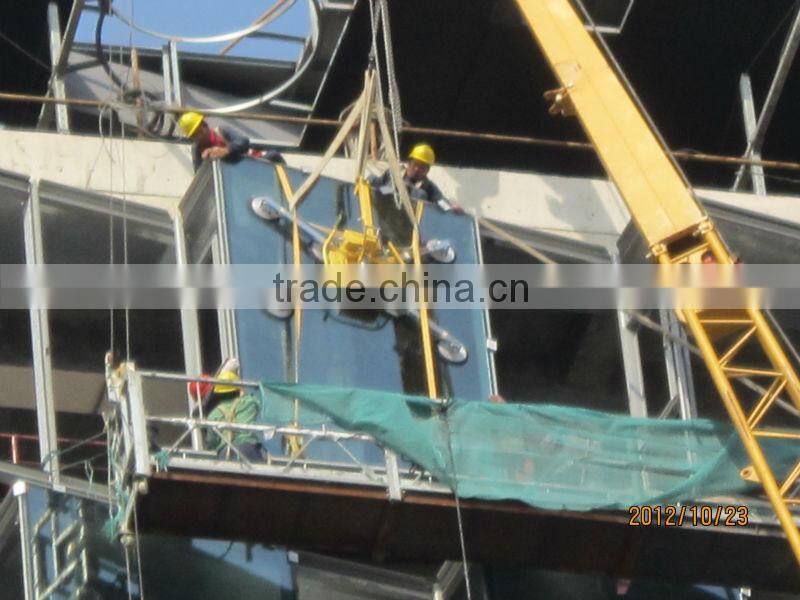

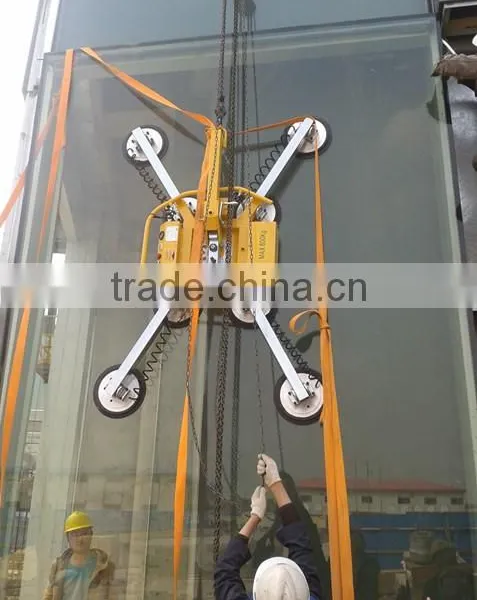

Battery powered vacuum lifters/ Vacuum lifter for glass curtain wall installation/ Battery lifting devices
Specifications
glass vacuum lifter
This Device is intended for lifting and transportation to a place of installation of glasses with weight till to 800 kg. Manual rotation on 360 degrees with fixing on a comb on each 45 degrees. A manual inclination on 90 degrees with a comb-clamp through 18 degrees.
Description:
- Two independent vacuum contours
- Each of contours has a double stock on safety, and also the vacuum tank
- The integrated vacuum metres and the power indicator
- The visual and acoustic systems of the notification reacting to a deviation from established parameters
- The independent storage high-capacity battery
- System of maintenance of not planned unintentional unloading of cargo by means of double system of acknowledgement of action
- Extension pieces allow to apply this device with glasses more the areas
Max capacity [800kg]
Number / Size of Pads
[8] / [300 mm] dia. Lipped
Vacuum reserve tank volume
Power fail & vacuum saving period[10 min]
Standard Operating Power
[12V, 0.1kW DC, oiless pump]
Safety factor [2.0]
Own weight [100 kg]
Noise level,less than [65 dB]
Suction and release by manual
Low vacuum warning light
Vacuum gauge
Dust filter
Non-return valve
Spring-mounted pads
Movable pad mounts
Suit for Glass sheet
1000mm [L]×3600mm [W]×3-25mm [T]
