Home > Products > Coil lifter > Vacuum Lifter

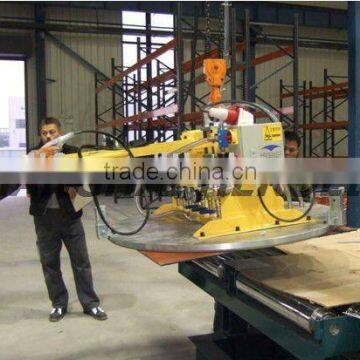

Vacuum Lifter
Negotiable
/ Set
1 Set(Min. Order)
- shanghai
- T/T
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | HEROLIFT | |
| Model Number | CLA500-3-T |
Product Description
Specifications
1.Vacuum lifter is a handling product2. Max.capacity carrying 500kg
3. For AL coil production
Detailed Product Description
1. the Vacuum lifter device up to 1000kg.
2. for Aluminum Coil Prodution, Copper Coil handing, Paper Coil handling, Steel Coil handling. Carbon Coil handling
| Load(kg) | Type | diam.of suction plate(mm) | Suction force(kg) | Vacuum pump | Power V / HZ / PH | Control mode | Dead load(kg) | Overall of machine(mm) |
| 200 | CLA200-3-T | 500 | 400 | VT4.8 | 220/380 50/60 1/3 | manual valve | 280 | 500*500*600 |
| 400 | CLA400-3-T | 600 | 800 | VT4.8 | 220/380 50/60 1/3 | manual valve | 280 | 600*600*600 |
| 600 | CLA600-4-T | 700 | 1200 | VT4.16 | 220/380 50/60 1/3 | manual valve | 280 | 700*700*600 |
| 1000 | CLA1000-5-T | 900 | 2000 | VT4,25 | 220/380 50/60 1/3 | manual valve | 280 | 1000*100*600 |
