Vacuum glass lifter(Below hook vacuum lifter for handling glass)
Detail product Description:
Lifting with crane + hoist+ vacuum lifter
The vacuum lifting equipment consists of the basic unit that can be combined with different suction systems.
The vacuum lifter can be combined and operated with many different carrier facilities,such as crane, wheel loaders, fork lifts. hoist.
1. The vacuum glass lifter is for handling the glass sheet.
2. 12VDC Power supply.
3. Max. carrying capacity up to 800kg.( a safety factor 4.0 include)
4. The vacuum pump, valve, switch and some important spare parts we are import from oversea.
5. Stable performance, Easy to maintain, Efficient, safe, quick, easy.
6. The material of suction pad is NBR (oil resistance,skid resistance, corrosion resistance) , Be able to effectively and steel vacuum suction and produce vacuum.
7. The suction pad can be adjustablem, can be turned off and open individuallly.
8. The vacuum lifter is equipped with a buzzer and warning light units, in case of a power failure or vacuum leakage, an optical and an acoustic signal goes off immediately to warn the operator to do emergency operation.
9. The vacuum lifter is equipped with safety tank&Pressure switch warning, when the power is turned off in sudden, always can keep the workpiece not falling down for 5 minutes. Won’t bring about equipment damaged, etc Safe accidents.(EU CE standard for 5 minutes);
10. The design of vacuum lifter by our company is passed to EU CE 13155 passed.
It is CE identification Product.
Application:
For Glass Production,

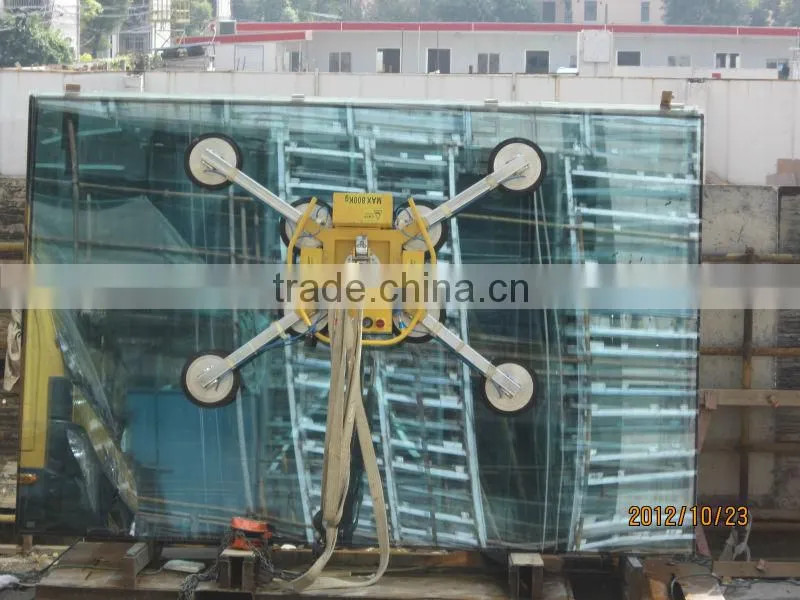

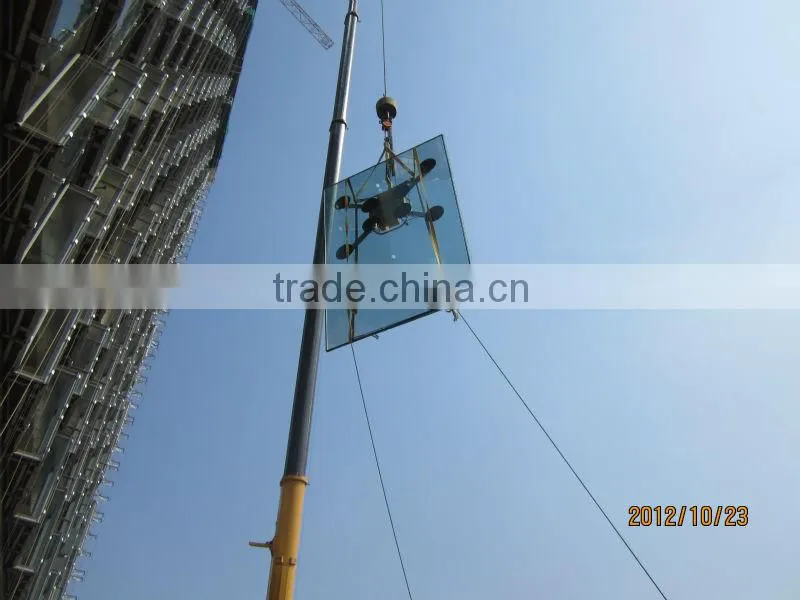

Glass Curtain Wall,

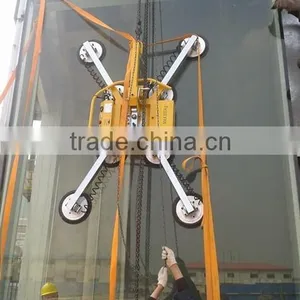

Glass Loading/Unloading,

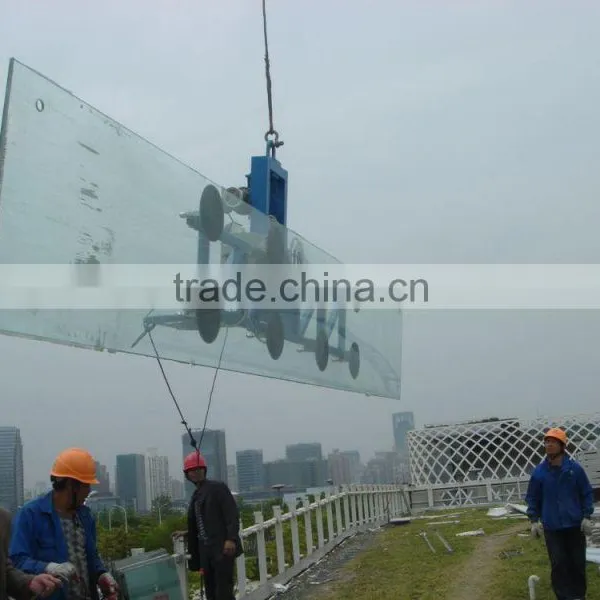

Outdoor Mounting.
The glass lifter can be combined and operated with many different carrier facilities,such as crane,excavatos, wheel loaders, fork lifts.
Load Movement:
- Electrical rotation by motor, 360° edgewise, with locking at each quarter point
- Electtrical tilt by motor, 90° between upright and flat, with automatic latching in upright position

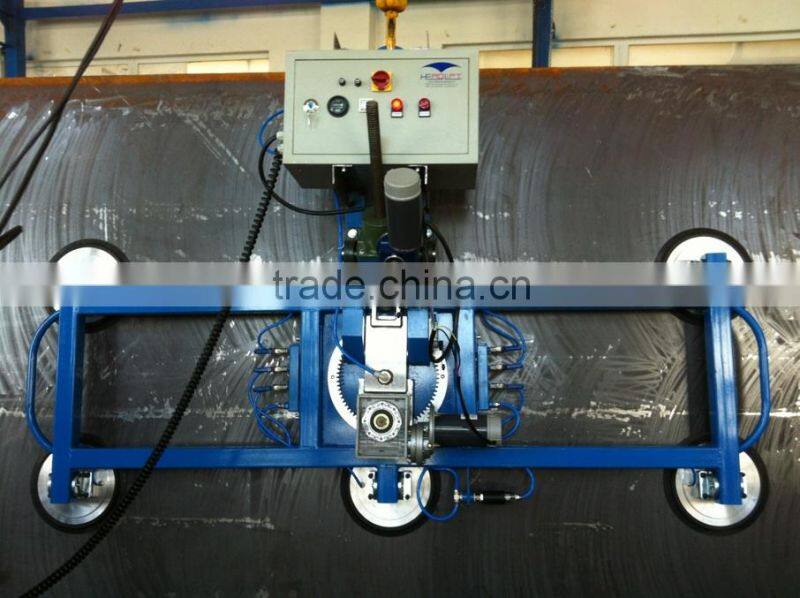

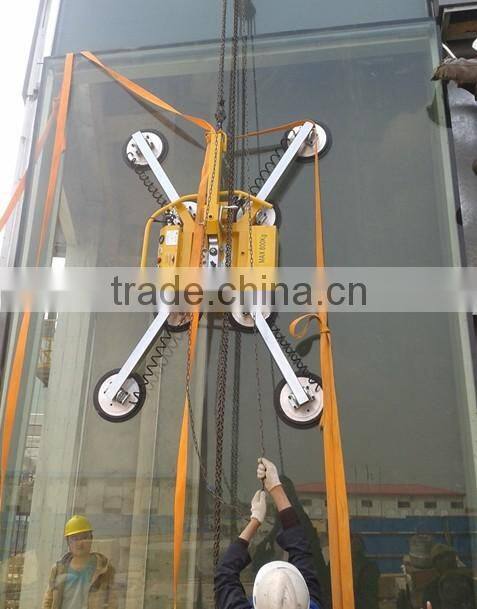

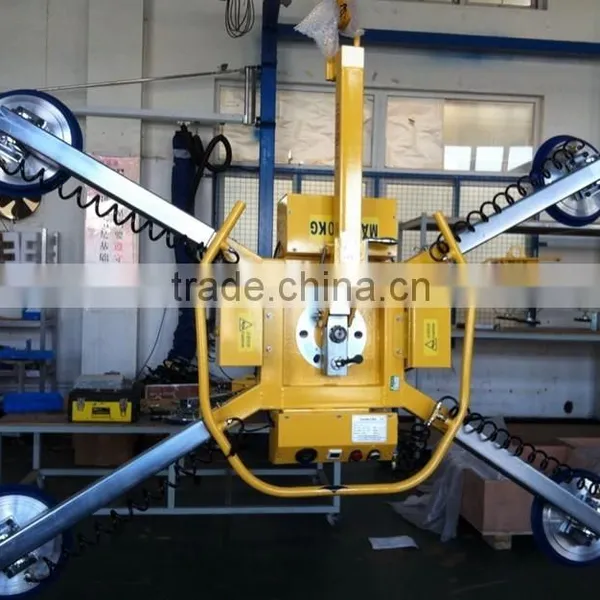

2014 New model for glass curtain wall installation.

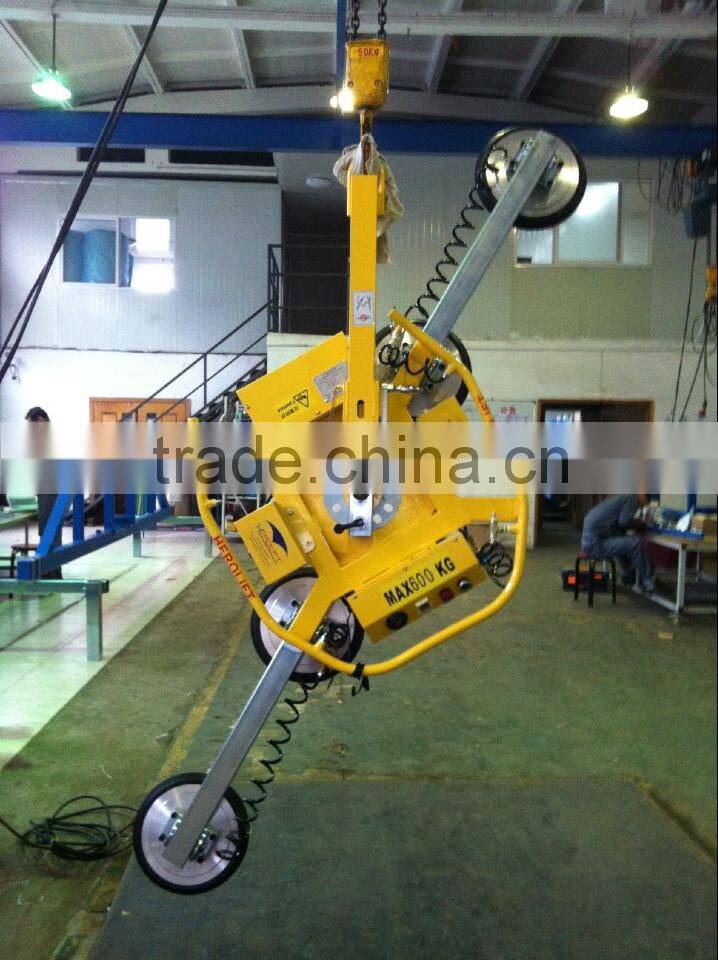

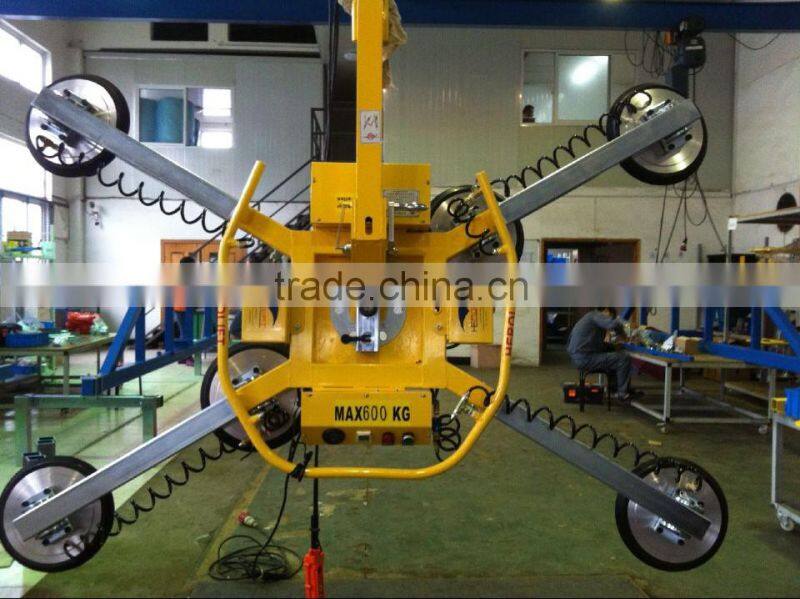

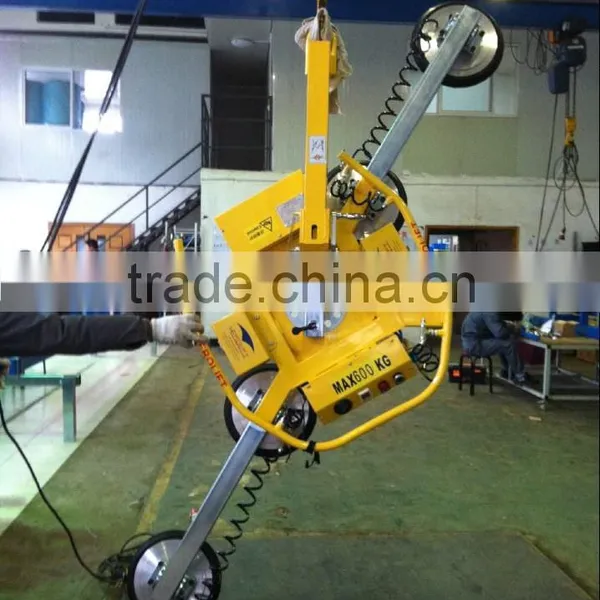

Max.capacity 600kg. 12V DC POWER
12vDC power supply, 4 suction pads max.capacity 400kg, for small workpiece handling.

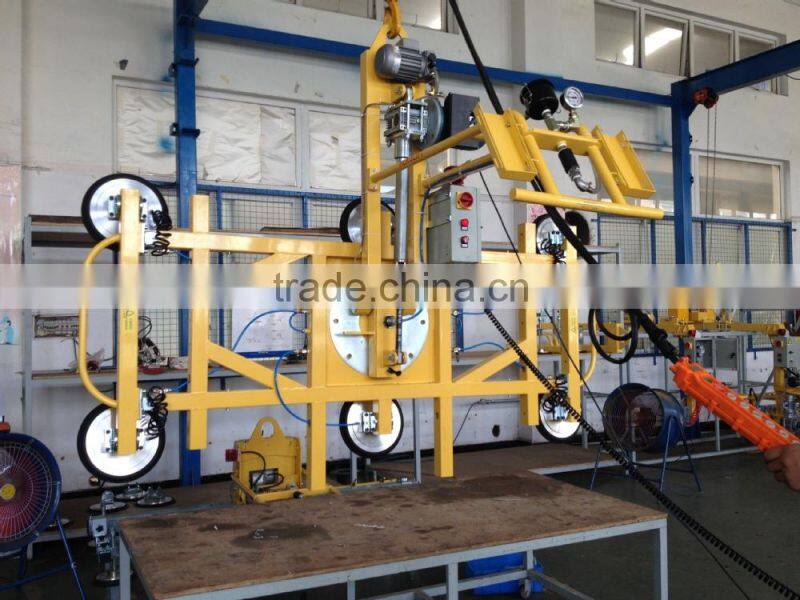

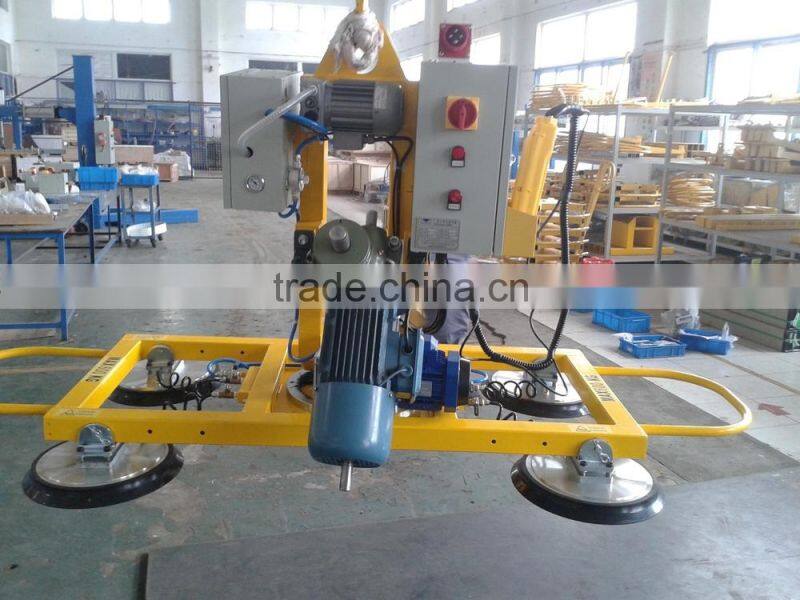

380V, AC power supply, tilting 90 degree by remote control. rotate 360 degrees by manual. capacity 400kg.

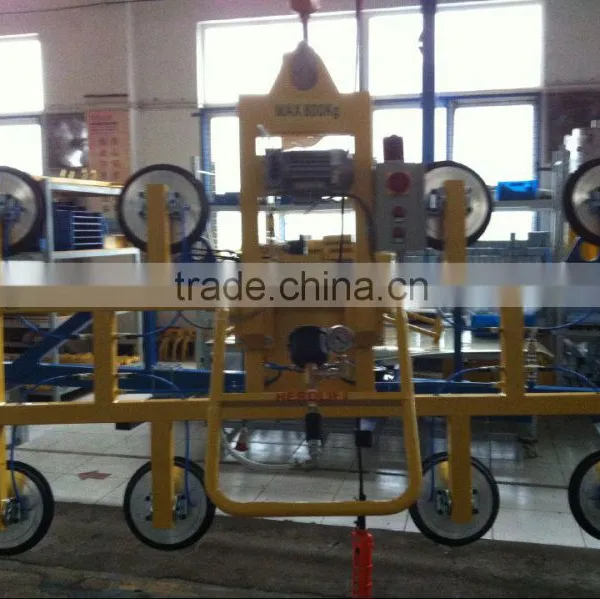

380V, AC power supply, tilting 90 degree by remote control. rotate 360 degrees by manual. capacity 800kg.

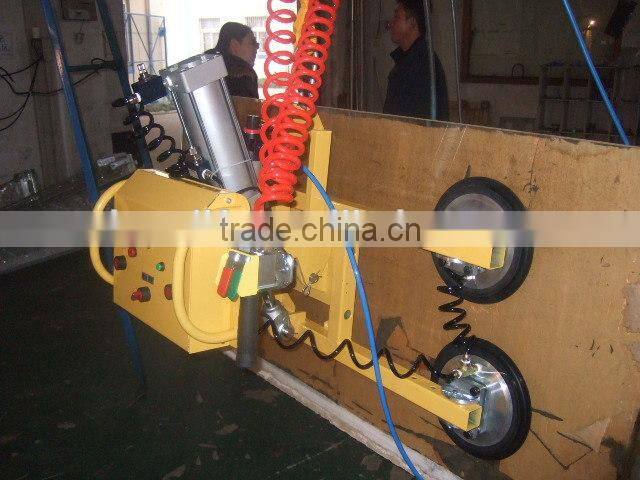

Tilting 90 degrees by air cylinder, Max. capacity 400kg.

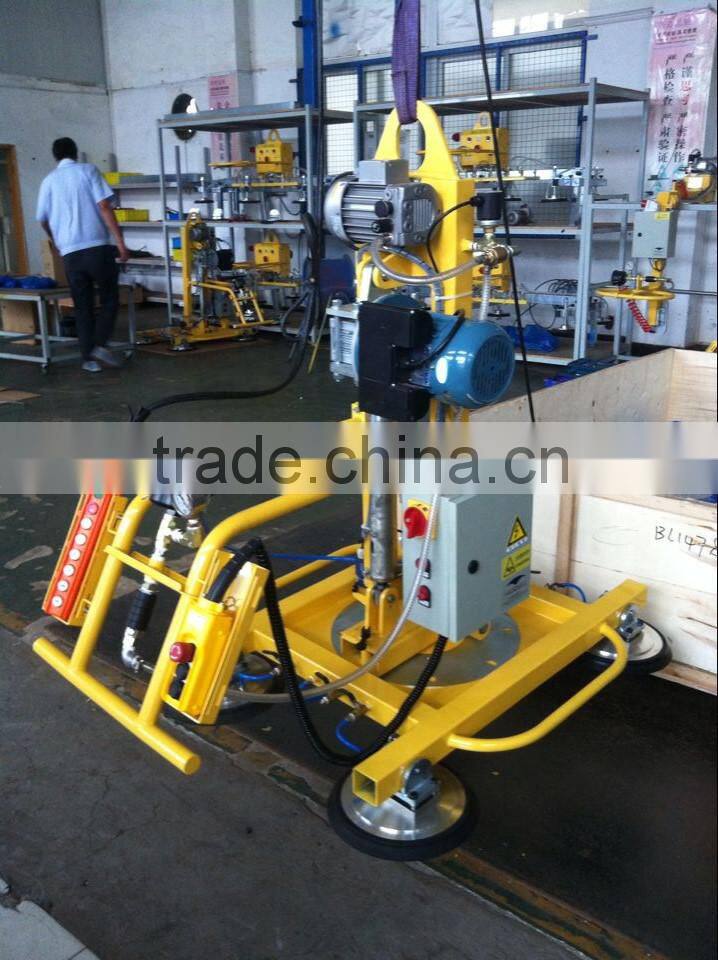

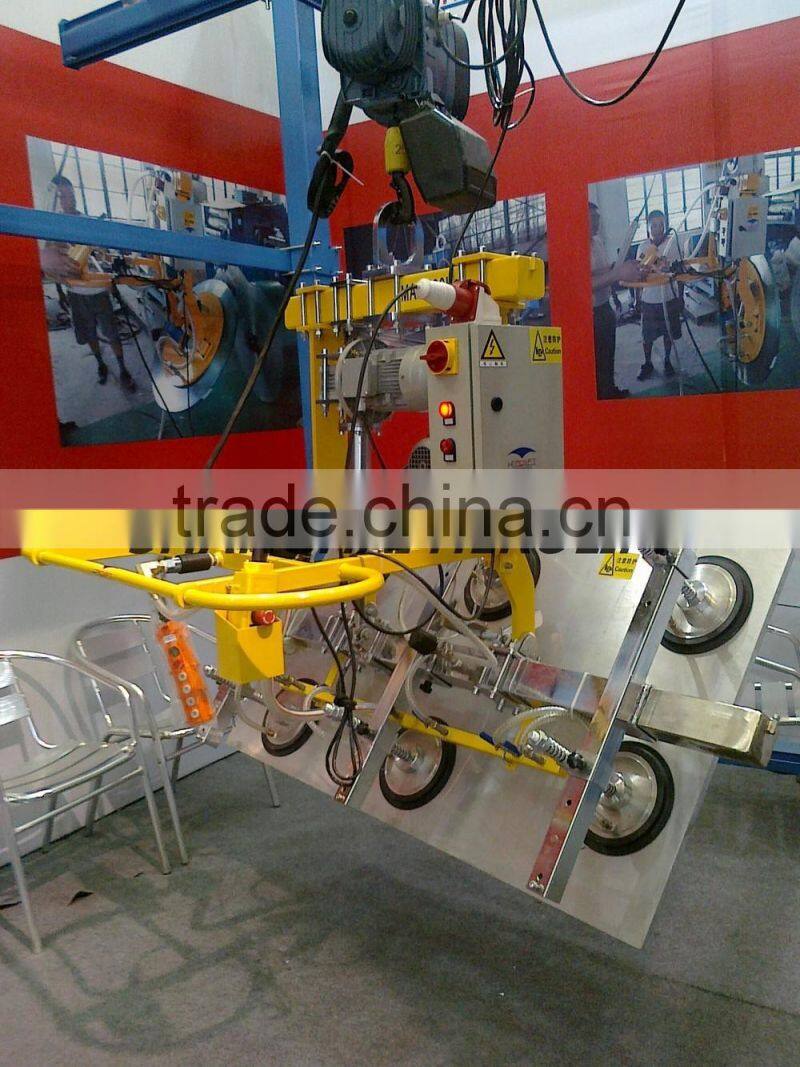

Max.capacity 350kg, 12VDC power supply. Tilting 90 degree, rotate 360 degree by electrical motor. operate by remote control.

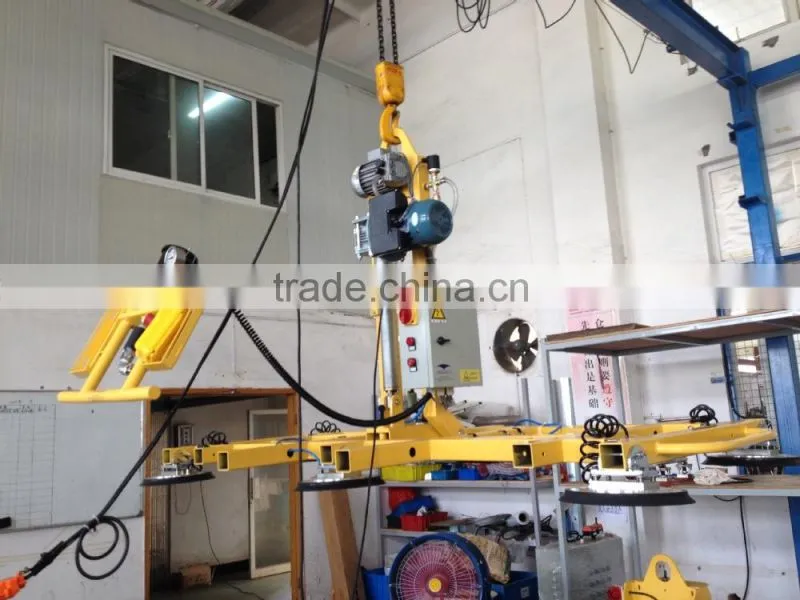

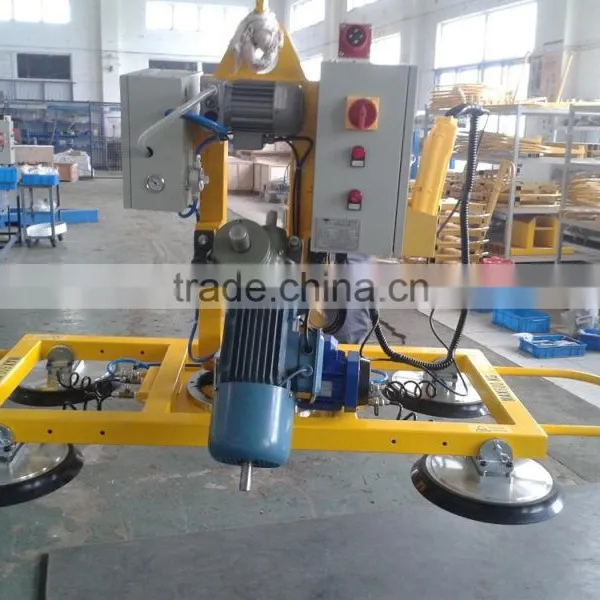

380V AC POWER SUPPLY. Max.capacity 600kg, horizontal handling, rotate 360 degrees by electrical motor, operate by remote control.

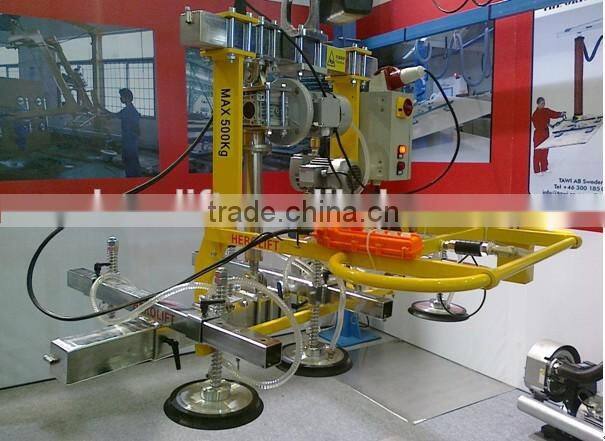

AC Power supply, Max.capacity 500kg, horizontal and vertical handling, tilting by electrical motor
Compressor air power supply, only vertical handling. max.capacity 105kg
Shanghai Herolift Automation Equipment Co., Ltdis based on factory automation (FA), logistics technology, vacuum handling and pneumatic equipment etc, and constantly develop, to bring in the new equipment, to provide design, planning, manufacturing, installation, training and after sales service etc. Our company independently design and develop various vacuum lifter equipments and non-standard equipments.
In addition, We're the agent for TAWI AB Company in Sweden providing vacuum tube lifters (VacuEasylift & VacuCobra) and Trolleys (Protema).
Our company has a group of well trained, outstanding professional design engineers and sales engineers to provide the best services and solutions. In order to let the customer be more satisfied, In the aspect of technology and constantly strive to innovation, To provide the best products to our customers, at the same time strengthen pre-sales and after-sales service.
Our products are widely used in: Glass, Mechanical processing, Food industry, Wood industry, Aluminum industry, Metal processing, Steel industry, Chemical industry, solar, Pharmaceutical industry, Plastic industry, Home appliances, Logistics packaging industry, Electronic products, etc.
Welcome enquiries!
