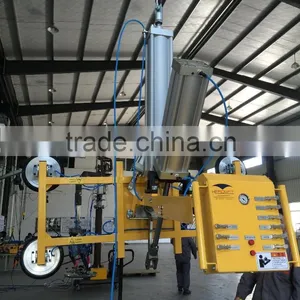

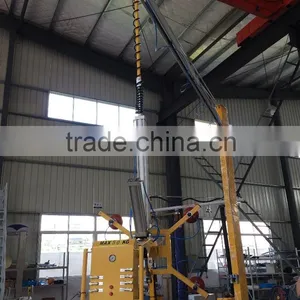

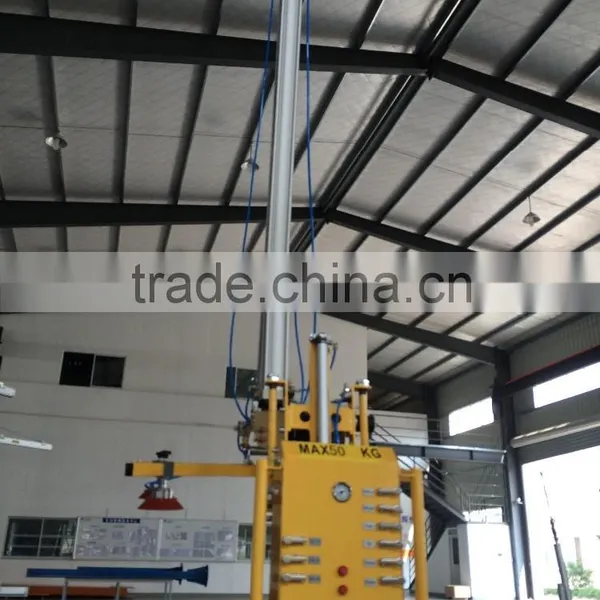

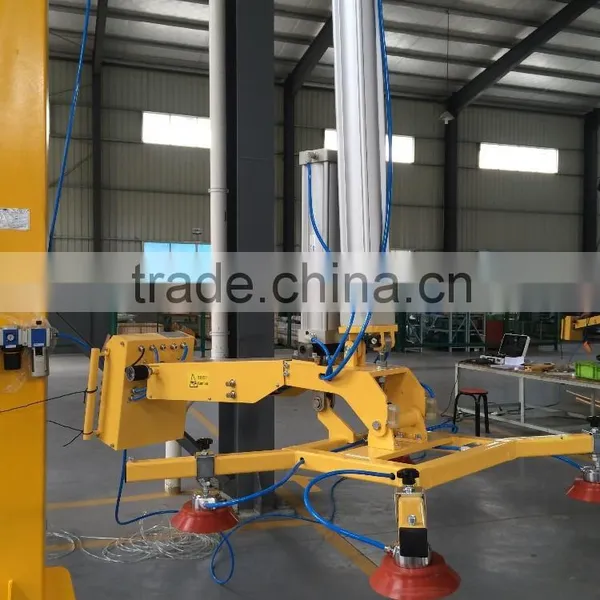

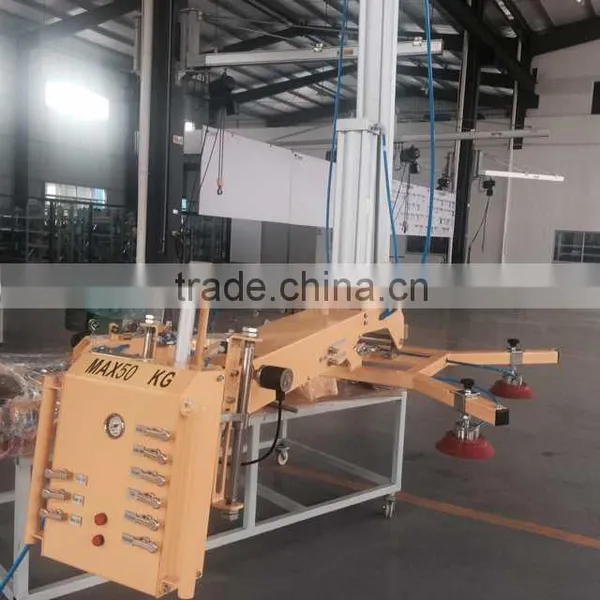

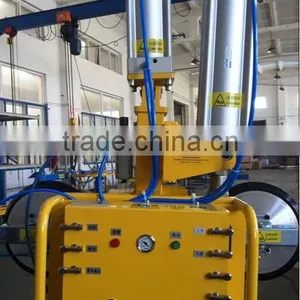

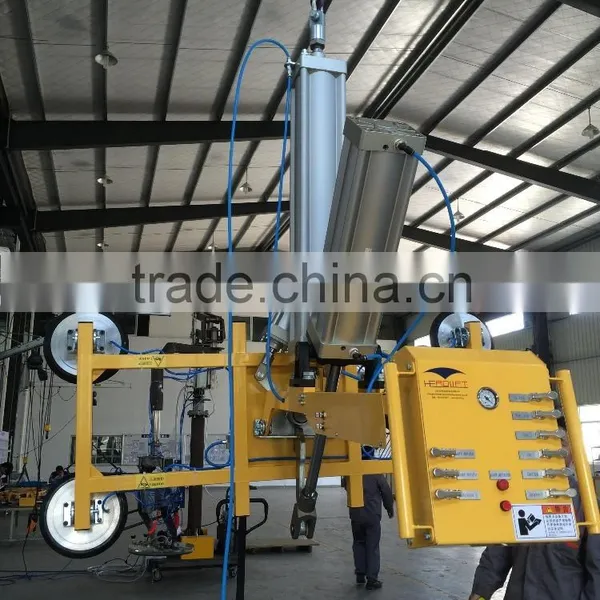

Air power sucker for glass sheet
1. PRODUCT DESCRIPTION
The lifter is designed for semi-automatic operation. The entire system consists of slide-type pillar jib
crane, cylinder hoist device, vacuum gripping device, and pneumatic tilting device, to achieve gripping,
lifting, moving and placing materials to specific location by a serial of process setting, driven by
compressed air.
3. PRODUCT TECHNIQUE
| Safety Loading Weight | 250 kg-400kg |
| Factor of Safety | 4.0 |
| Standard Working Power | 0.6~0.8 mpa |
| Noise Level | < 60 Db |
| Vacuum Holding time | More than 30 minutes after power loss |
| Gripping | Suction cups in vacuum state |
| Hoist Cylinder | 100mm diameter; 1200mm distance; universal connection; three position five way valve make cylinder stay at any height with no drop, even if power loss |
| Tilting | Flip movement up to 90 degree driven by cylinder |
| Rotation | Turn up to 90 degree driven by cylinder |
| Safety protection | Vacuum non-return system and vacuum compensation system |
| Vacuum compensator | when vacuum reaches to the specified pressure, it automatically closes the compressed air supply, to achieve energy saving; when vacuum pressure is insufficient, it automatically restore compressed air supply, to achieve vacuum compensation. |
| Control method | Color-different buttons control on the same panel |
