Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > Rubber Welding Machine Cable

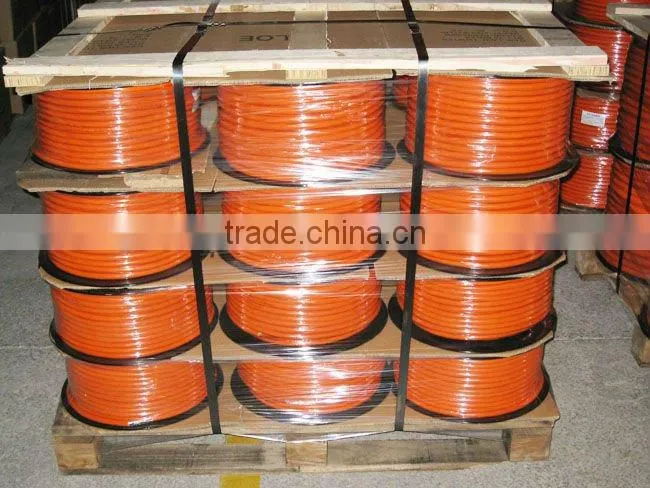

Rubber Welding Machine Cable

Name: Rubber Welding Machine Cable
Brand: hongda
SKU: 113546107

Rubber Welding Machine Cable thumbnail-1

US$ 0.1 - 20 MOQ: 1 Kilometer

Key Specifications

Get Latest Price

Place of Origin:

Henan, China

Brand Name:

hongda

Model Number:

rubber cable

Contact Supplier Request Quote Chat Now

Zhengzhou Hongda Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Henan, China

Brand Name hongda

Model Number rubber cable

Insulation Material Rubber

Type Low Voltage

Application Industrial

Conductor Material Other, Copper, copper core

Jacket Rubber

Rubber Welding Machine Cable

1. Service Conditions

This welding cable is suitable for the welding mechine whose voltage to the ground is not more than 200V and pulsating current value is 400V.

2. Model,Names and Work In the Temperature(See Table 1)

Model	Name	Working Temperature of Core≤(oC)
YH	Natural Rubber Sheath for Welding Cable	65
YHF	Horoprene Rubber or Other Syntheitic Sheath Welding Cable	65

3. Specifications,Size,Weight and Technical Data(See Table 2)

Conductor Nominal Section (mm2)	Conductive Core	Thickness of Section Sheath (mm)	Average Outer Diameter (mm)		20oC Conductor Resistance≤(Ω/km)	Reference Weight(kg/km)
Conductor Nominal Section (mm2)	Number/Diameter of Core(mm)	Thickness of Section Sheath (mm)	Min	Max	20oC Conductor Resistance≤(Ω/km)	YH	YHF
10	322/0.20	1.8	7.5	9.7	1.91	146	153.51
16	513/0.20	2.0	9.2	11.5	1.16	218.9	230.44
25	798/0.20	2.0	10.5	13.0	0.758	316.6	331.15
35	1121/0.20	2.0	11.5	14.5	0.536	426	439.87
50	1596/0.20	2.2	13.5	17.0	0.379	592.47	610.55
70	2214/0.20	2.4	15.0	19.5	0.268	790	817.52
95	2997/0.20	2.6	17.0	22.0	0.198	1066.17	1102.97
120	1702/0.30	2.8	19.0	24.0	0.161	1348.25	1392.55
150	2135/0.30	3.0	21.0	27.0	0.129	1678.5	1698.72
185	1443/0.40	3.2	22.0	29.0	0.106	1983.8	2020.74

4. Delivery Requirements

If welding cable is packed in circle,its length should be 100m long.If it is packed in bundle,its length should be no less than 100m.The short welding cable which are no less than 20m are permissible to delivery.The quantity of short welding cable should be no more than 10% of the whole delivery.If mutual agreement is made,everything will be done according to the agreement.
