Home > Products > rubber cable > Electric Trailing Rubber Cables for use in mines
Electric Trailing Rubber Cables for use in mines
USD $0.8 - $100
/ Meter
500 Meters(Min.Order)
- 3000 Kilometer / Kilometers per Month
- Qingdao or Shanghai
- T/T
You May Like
-
Mooring rope cable
-
Manufacturer of waterproof gas electric composite cable for air ducts, specialized cable for underwater divers
-
The difference between different types of automotive cables and selection advice
-
China manufacturer Communicate cable RVVP 4*0.3mm2 for power generation
-
IEC62196-2 mode 3 16A single-phase electric vehicle charging process
-
Automotive high-voltage cables with protection class IP67 characteristics
Product Details
| Place of Origin: | Henan, China | Brand Name: | Hongda | Model Number: | Rubber cable |
| Insulation Material: | Rubber | Type: | Low Voltage | Application: | Construction |
| Conductor Material: | Copper | Jacket: | Rubber |
Product Description

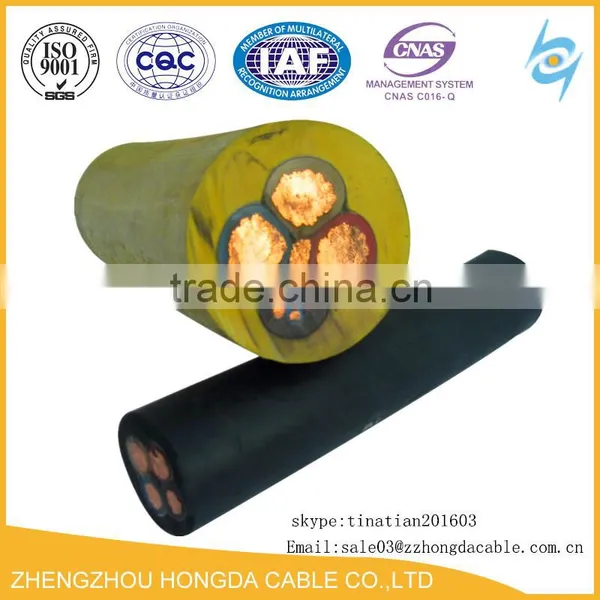

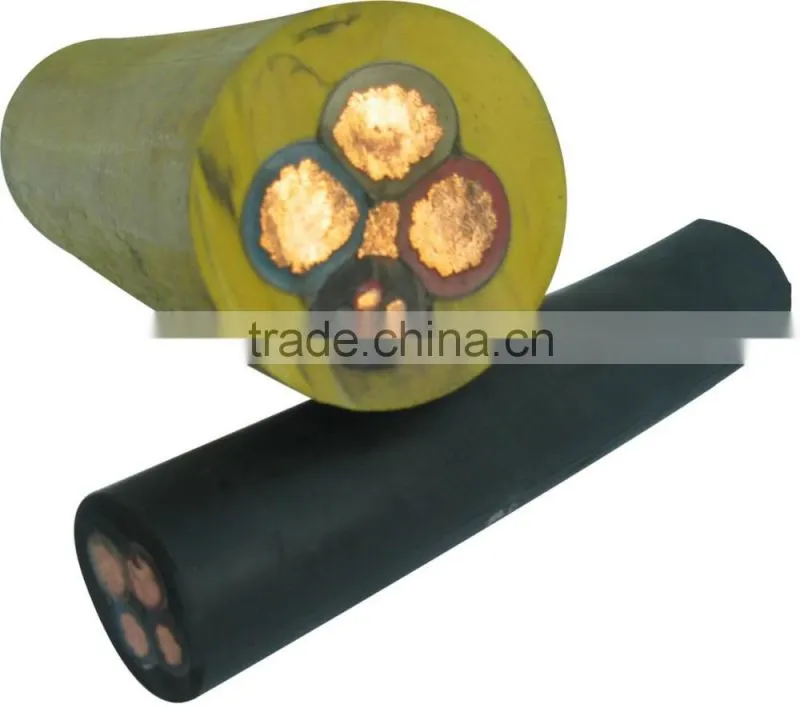

Electric Trailing Rubber Cables for use in mines
Product Description
Cable characteristic
- Cable working temperature should not exceed 65.
- Cable has a certain extent of temperature resistance and or resistance, fit to work outside and work in the smeary environment.
- Reach standard GB/T18380.1-2001 vertical flame test.
- When cable in temperature of 20, the insulation resistance between conductors above 50MΩ..

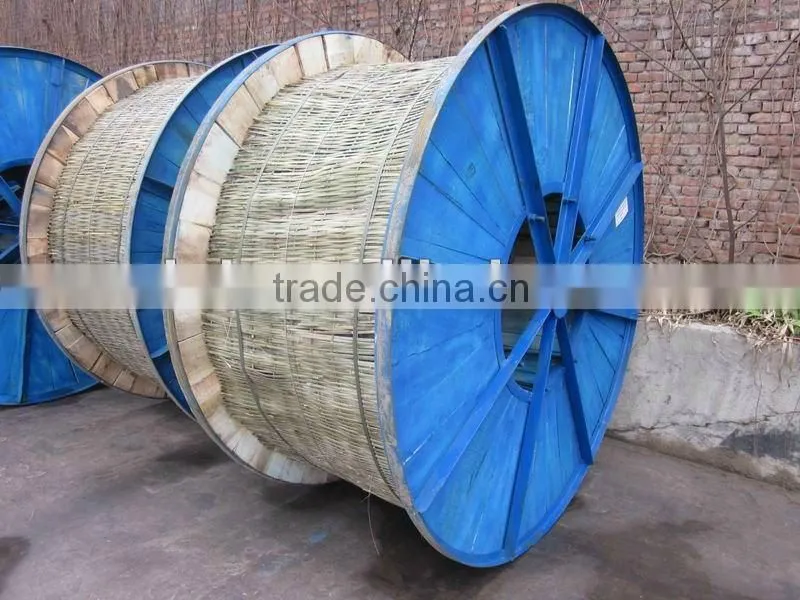

Packaging & Delivery
| Packaging Detail: | Plastic knitting bags/wooden pallets/other |
| Delivery Detail: | 7~15days |
Specifications
1 Flexible rubber cable
2 CCC and CE certifcation
3 ISO9001:2000 and IEC standard
4.More than 30 years experience
Welding cables Specifications:
MM² | MM max.diameter of cable | cable approx:weiht Kg/km | Maximun D.C.Resistance (20°C) | |
| 60245IEC81 (YH) | 6025IEC82 (YHF) | |||
| 10 | 9.7 | 133 | 138 | 1.910 |
| 16 | 11.5 | 216 | 224 | 1.160 |
| 25 | 13.0 | 300 | 309 | 0.758 |
| 35 | 14.5 | 406 | 416 | 0.536 |
| 50 | 17.0 | 568 | 581 | 0.379 |
| 70 | 19.5 | 780 | 797 | 0.268 |
| 95 | 22.0 | 1037 | 1059 | 0.198 |
| 120 | 24.0 | 1314 | 1340 | 0.161 |
| 150 | 27.0 | 1644 | 1675 | 0.129 |
| 185 | 29.0 | 1957 | 1993 | 0.106 |
