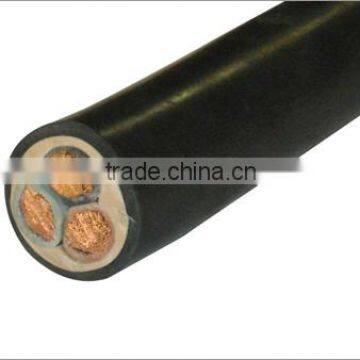

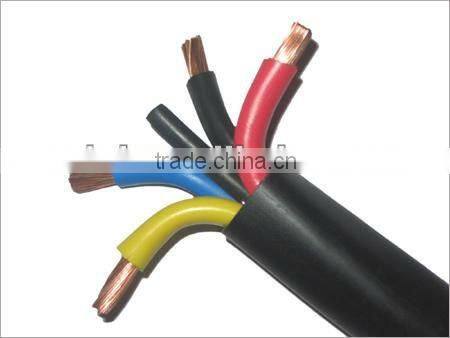

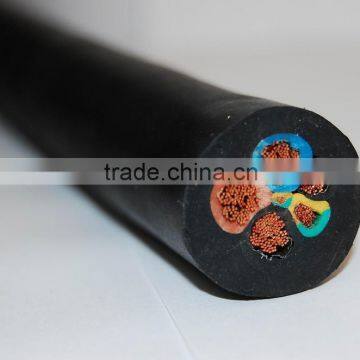

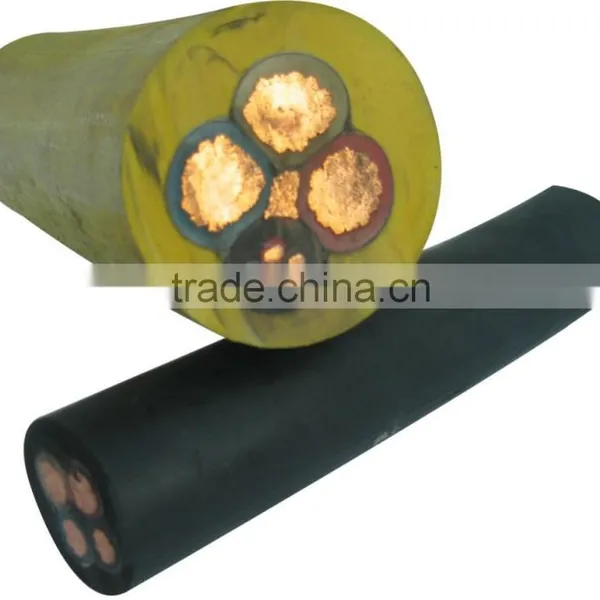

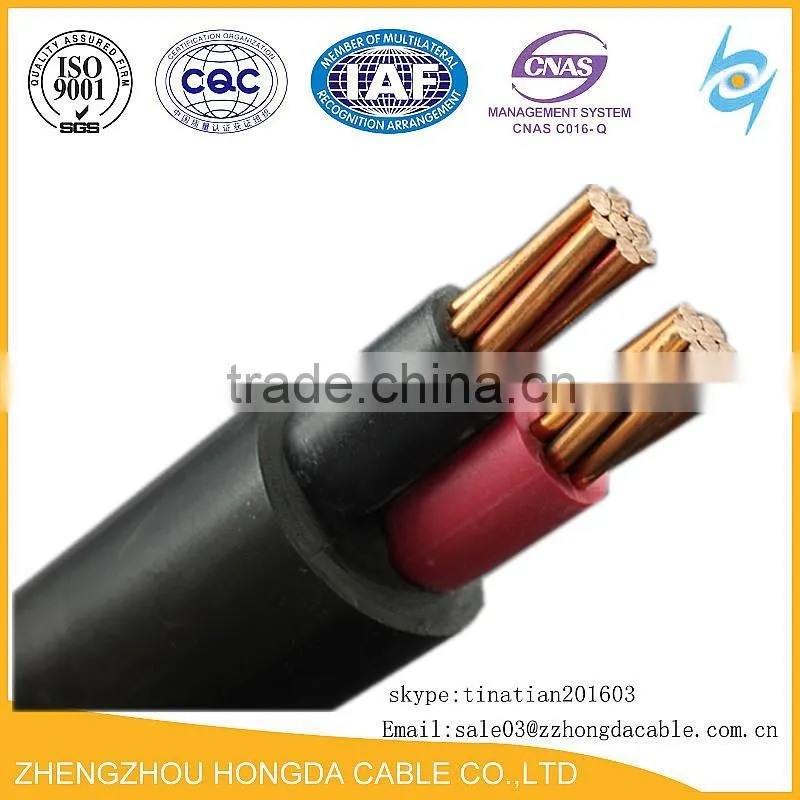

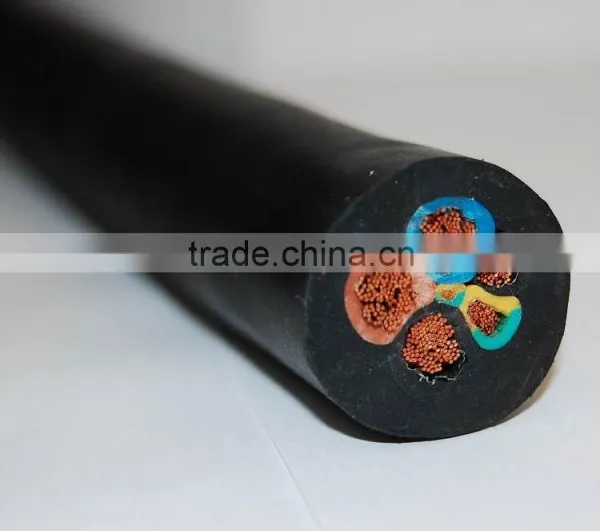

UL 2 Core Rubber Insulated Cable H07RN-F
rated voltage:450/750V
cores: 1~6
conductor: copper, 5th od HD383
insulated: temperature: -35~95 degree
Application:
These rubber-sheathed cables are intended for applications of medium load in dry, moist and wet rooms, for outdoor equipment such in agricultural and industrial applications and locations with associated fire hazards. These cables are also used for large cooking vessels, hot-plates, hand-held lighting fixtures, electric tools such as circular saws, drills, handyman tools as well as for portable motors or machinery at building sites, also used for permanent installation.

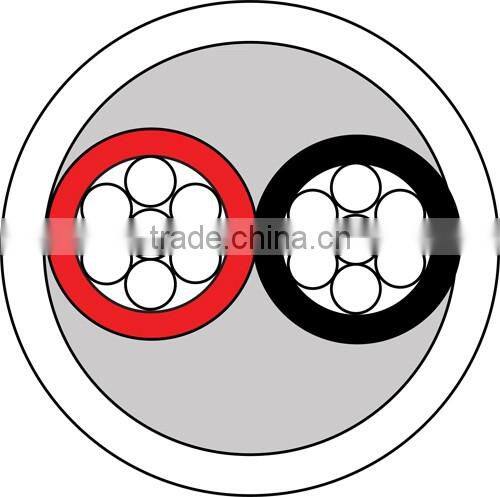

H07RN-F power cable struction | |||||
Conductor section:1.0-6.0mm2 Rated voltage:450/750v | |||||
Part no. |
Line core number and conductor nominal section |
Norminal thinkness of insulation(mm) |
Norminal thinkness of sheath (mm) |
Overall Diameter (mm) |
At 20 DC Resistance of conductor (Ω/km) |
110230 |
1x1.5 |
0.8 |
1.4 |
6.00±0.1 |
13.3 |
110231 |
1x2.5 |
0.9 |
1.4 |
6.60±0.1 |
7.98 |
110234 |
2x1.0 |
0.8 |
1.3 |
8.60±0.2 |
19.5 |
110235 |
2x1.5 |
0.8 |
1.5 |
9.60±0.2 |
13.3 |
110236 |
2x2.5 |
0.9 |
1.7 |
11.40±0.3 |
7.98 |
110237 |
2x4.0 |
1.0 |
1.8 |
13.40±0.4 |
4.95 |
110238 |
2x6.0 |
1.0 |
2.0 |
15.6±0.4 |
3.30 |
110239 |
3x1.0 |
0.8 |
1.4 |
9.2±0.2 |
19.5 |
110240 |
3x1.5 |
0.8 |
1.6 |
10.3±0.3 |
13.3 |
110241 |
3x2.5 |
0.9 |
1.8 |
12.00±0.4 |
7.98 |
110242 |
3x4.0 |
1.0 |
1.9 |
14.40±0.4 |
4.95 |
110243 |
3x6.0 |
1.0 |
2.1 |
16.80±0.5 |
3.30 |
110244 |
4x1.0 |
0.8 |
1.5 |
10.30±0.3 |
19.5 |
110245 |
4x1.5 |
0.8 |
1.7 |
11.30±0.4 |
13.3 |
110246 |
4x2.5 |
0.9 |
1.9 |
15.30±0.4 |
7.98 |
110247 |
4x4.0 |
1.0 |
2.0 |
15.90±0.4 |
4.95 |
110248 |
4x6.0 |
1.0 |
2.3 |
18.60±0.5 |
3.30 |
110249 |
5x1.0 |
0.8 |
1.6 |
11.30±0.3 |
19.5 |
110250 |
5x1.5 |
0.8 |
1.8 |
12.50±0.4 |
13.3 |
110251 |
5x2.5 |
0.9 |
2.0 |
14.60±0.4 |
7.98 |
110252 |
5x4.0 |
1.0 |
2.2 |
17.80±0.4 |
4.95 |
110253 |
5x6.0 |
1.0 |
2.5 |
20.60±0.5 |
3.30 |
110254 |
6x1.5 |
0.8 |
2.5 |
14.90±0.4 |
13.3 |
110255 |
6x2.5 |
0.9 |
2.7 |
17.40±0.4 |
7.98 |
110256 |
6x4.0 |
1.0 |
2.9 |
20.70±0.5 |
4.95 |
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance,70% T/T balance before shipment
