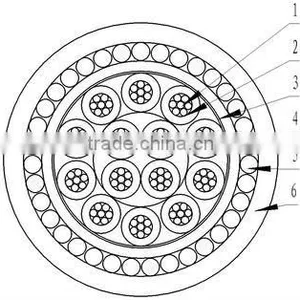

Help CenterBS5308 Multi-Pair Shielded Flame Retardant Instrument Cable
Related Products
-
Multi-Pair Multi-core Shielded Flame Retardant SWA Instrument CableUS$ 0.1 - 5MOQ: 1 Kilometer -
Multi-Pair Multi-core Shielded Flame Retardant Instrument Eletric CableUS$ 0.1 - 58MOQ: 1000 Meters
-
Pairs BS5308 Collective Screened Twisted Multi-pair Sheild Instrument CableUS$ 0.1 - 58MOQ: 1000 Meters
-
BS5308 Multi-Pair Flame Retardant Braid Instrument Power CableUS$ 0.28 - 50MOQ: 1000 Meters
-
400Hz Airport Cables 7 Core With Copper Wire Braid ShieldUS$ 0.1 - 18MOQ: 0 Meter
Specifications
instrument cable1. PE, XLPE, PVC Insulation optional
2. Al-foil, Cu Wire Braid, Cu Tape Shield Optional
Instrument Cable
For use in installations designed to connect electrical instrumentation circuits and provide communication services in and around process plants. Suitable for direct burial applications.

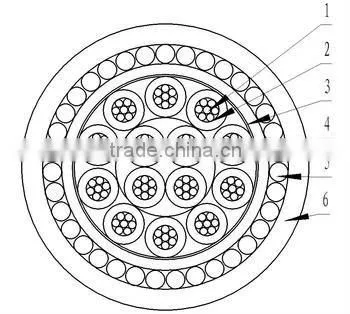

Specification of instrument cable:
Instrument Cable Conductors:
0.5mm - class 5 flexible copper
0.75mm - class 5 flexible copper
1.5mm - class 2 stranded copper
Insulation: PE (Polyethylene)
Screen: CAM (Collective Aluminium Mylar)
Bedding: PE (Polyethylene)
Armour: SWA
Outer Sheath: PVC (Polyvinyl-Chloride)
Voltage Rating: 300/500volts
Temp. Rating: 65 C
Flexible instrumentation multi-core cables about PVC insulated and twisted parallel cable
Standard: National Standard GB/T 5023; IEC60227
Rated Voltage: 300/300V;
Construction: 1. annealed flexible copper conductor
2.PVC insulated
Application: used for electric appliance, electric tool, electric instruments and lighting, automatic system
Application of insulated cable Instrument Cable :
It is used to transmit and distribute power on the power line of A. C. Rated voltage 0.6/1kV.
| XLPE insulated electric cable Instrument Cable 0.6/1kv | |||||||||||
| norminalsectional area | insulati-on thicknes | sheath thickness(mm) | overal diameter of cable (mm) | D.C resistance of conductor(km) | current rating | ||||||
| in air(A) | direct in soil(A) | ||||||||||
| cu | Al | cu | Al | cu | Al | ||||||
| 1×1.5 | 0.7 | 1.5 | 6 | <=12.1 | <=12.1 | 30 | 25 | 45 | 35 | ||
| 1×4 | 0.7 | 1.5 | 7 | <=7.41 | <=7.41 | 45 | 35 | 60 | 50 | ||
| 1×6 | 0.7 | 1.5 | 7 | <=3.08 | <=4.61 | 55 | 45 | 70 | 55 | ||
| 1×35 | 0.9 | 1.5 | 12 | <=0.524 | <=0.868 | 175 | 140 | 190 | 150 | ||
| 1×50 | 1 | 1.5 | 13 | <=0.387 | <=0.641 | 210 | 170 | 225 | 180 | ||
| 1×70 |
1 .1 |
1.5 | 14 | <=0.268 | <=0.443 | 270 | 215 | 280 | 225 | ||
| 1×95 | 1.1 | 1.5 | 16 | <=0.193 | <=0.320 | 340 | 275 | 335 | 270 | ||
| 1×120 | 1.2 | 1.5 | 18 | <=0.153 | <=0.253 | 400 | 320 | 380 | 305 | ||
| 1×150 | 1.4 | 2 | 21 | <=0.124 | <=0.206 | 460 | 370 | 425 | 340 | ||
| 1×185 | 1.6 | 2 | 23 | <=0.0991 | <=0.164 | 530 | 415 | 480 | 375 | ||
| 1×240 | 1.7 | 2 | 25 | <=0.0754 | <=0.125 | 625 | 490 | 555 | 435 | ||
| … | |||||||||||
| 3×1.5 | 0.7 | 1.5 | 10 | <=12.1 | <=12.1 | 25 | 25 | 30 | 30 | ||
| 3×2.5 | 0.7 | 1.5 | 11 | <=7.41 | <=12.1 | 30 | 25 | 35 | 30 | ||
| 3×4 | 0.7 | 1.5 | 12 | <=4.61 | <=7.41 | 40 | 30 | 50 | 40 | ||
| … | |||||||||||
| Attention: We can provide more info than above data, if needed.The above are just some examples. | |||||||||||
Using features of insulated cable Instrument Cable :
1. Rated voltage: Uo/U: 0.6/1kV
2. No. Of core: Single-core, Two-core, Three-core, Four-core, Five-core, Three core and earth(Three primary conductor and one Neutral conductor), Three core and two((Three primary conductor and Two Neutral conductor), Four core and earth((Four primary conductor and One Neutral conductor).
3. The highest allowed operating temperature of conductor for long-term working is 70oC. In short-circuit (Max. Long-term is no more than 5 seconds). The highest temperature for conductor is no more than 160oC.
4. D. C. Resistance of the conductor complies with the stipulations of GB/T3956-1997.
5. The environment temperature should be no lower than 0oC when lay. Otherwise it should be preheated.
Model: insulated cable, insulated cable, insulated cable, insulated cable, insulated cable, insulated cable, insulated cable, insulated cable, insulated cable, insulated cable, insulated cable, insulated cable, insulated cable, insulated cable, insulated cable, insulated cable, insulated cable, insulated cable, insulated cable, insulated cable, insulated cable, insulated cable
