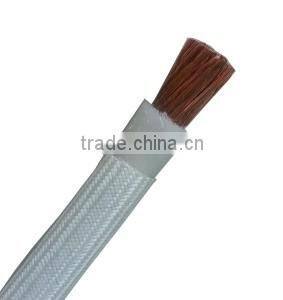

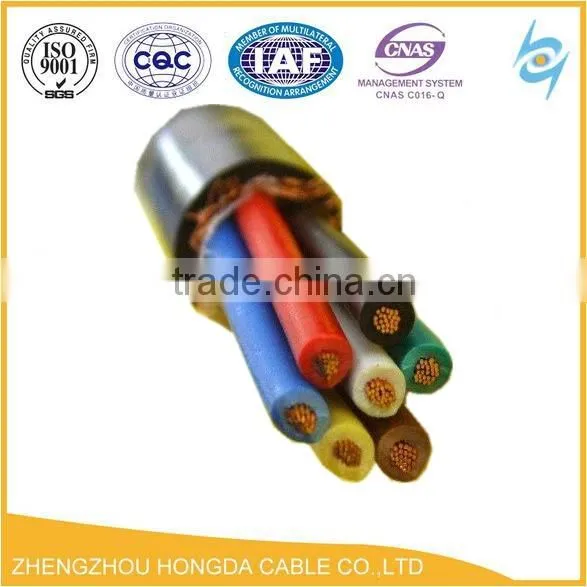

0.6/1KV multi-core pvc shield electric wire cable braided cables electric wire
electric wire

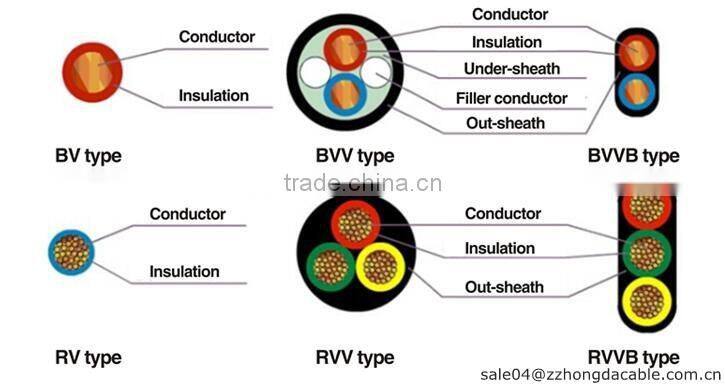

| Model | Name |
| RV | Copper core PVC insulation flexible electric wire |
| RVB | Copper core PVC insulation flat flexible electric wire |
| RVS | Copper core PVC insulation twist flexible electric wire |
| RVV | Copper core PVC insulation PVC sheath flexible electric wire |
| RVVB | Copper core PVC insulation PVC sheath flat flexible electric wire |
| RV-105 | Copper core heat-resistance PVC insulation flexible electric wire |
Specification Sizes and Technological Data ( braided electric wire )
Model |
Rated Voltage |
Normal Area (mm) |
Wire core structure Cores/Diameters (mm) |
Max Diameter (mm) |
Reference Weight (KG/KM) |
| RV | 300/500V | 0.3 |
16/0.15 | 2.3 | 6.4 |
| 0.4 | 23/0.15 | 2.5 | 8.1 | ||
0.5 |
16/0.2 | 2.6 | 9.1 | ||
| 0.75 | 24/0.2 | 2.8 | 12.2 | ||
| 1.0 | 32/0.2 | 3.0 | 15.1 | ||
| 450/750V | 1.5 | 30/0.25 | 3.5 | 21.4 | |
| 2.5 | 49/0.25 | 4.2 | 24.5 | ||
| 4 | 56/0.20 | 4.8 | 51.8 | ||
| 6 | 84/0.3 | 6.4 | 74.1 | ||
| 10 | 142/0.3 | 8.0 | 124.0 | ||
| RVB | 300/300V | 2x0.3 | 2x16/0.15 | 3.5 | 21.4 |
| 2x0.4 | 2x23/0.15 | 4.2 | 24.5 | ||
| 2x0.5 | 2x28/0.15 | 4.8 | 51.8 | ||
| 2x0.75 | 2x42/0.15 | 6.4 | 74.1 | ||
| 2x1.0 | 2x32/0.120 | 8.0 | 124.0 | ||
| RVS | 300/300V | 2x0.3 | 2x16/0.15 | 4.3 | 12.8 |
| 2x0.4 | 2x23/0.15 | 4.6 | 16.2 | ||
| 2x0.5 | 2x28/0.15 | 5.8 | 22.9 | ||
| 2x0.75 | 2x42/0.15 | 6.2 | 29.6 | ||
| RVV | 300/500V | 2x0.75 | 2x24/0.20 | 7.6 | 50 |
| 2x1.0 | 2x32/0.20 | 7.8 | 57.8 | ||
| 2x1.5 | 2x30/0.25 | 8.8 | 74.7 | ||
| 2x2.5 | 2x49/0.25 | 11.0 | 120 | ||
| 3x0.75 | 3x24/0.20 | 8.0 | 63.1 | ||
| 3x1.0 | 3x32/0.20 | 8.4 | 74.0 | ||
| 3x1.5 | 3x30/0.25 | 9.6 | 102.0 | ||
| 3x2.5 | 3x49/0.25 | 11.5 | 162.0 | ||
| 4x0.75 | 4x24/0.20 | 8.6 | 78.5 | ||
| 4x1.0 | 4x32/0.20 | 9.2 | 97.2 | ||
| 4x1.5 | 4x30/0.25 | 11.0 | 133.0 | ||
| 4x2.5 | 4x49/0.25 | 12.5 | 204.0 | ||
| 5x0.75 | 5x24/0.20 | 9.4 | 96.9 | ||
| 5x1.0 | 5x32/0.20 | 11.0 | 115 | ||
| 5x1.5 | 5x30/0.25 | 12.0 | 158 | ||
| 5x2.5 | 5x49/0.25 | 14.0 | 249 | ||
| RVVB | 300/300V | 2x0.5 | 2x16/0.2 | 3.8x6.0 | 27.7 |
| 2x0.75 | 2x24/0.2 | 3.9x6.4 | 34.5 | ||
| RV-105 | 450/750V | 0.5 | 16/0.2 | 2.4 | 10.2 |
| 0.75 | 24/0.2 | 3.0 | 13.5 | ||
| 1.0 | 32/0.2 | 3.2 | 16.4 | ||
| 1.5 | 30/0.25 | 3.5 | 21.4 | ||
| 2.5 | 49/0.25 | 4.2 | 34.5 | ||
| 4 | 56/0.30 | 4.8 | 51.8 | ||
| 6 | 84/0.30 | 6.4 | 74.1 |
electric wire
braided electric wire

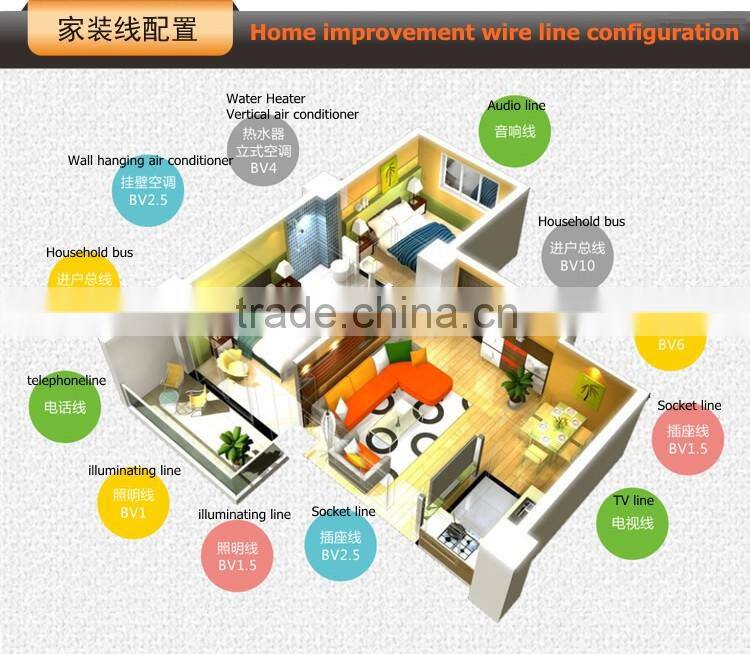

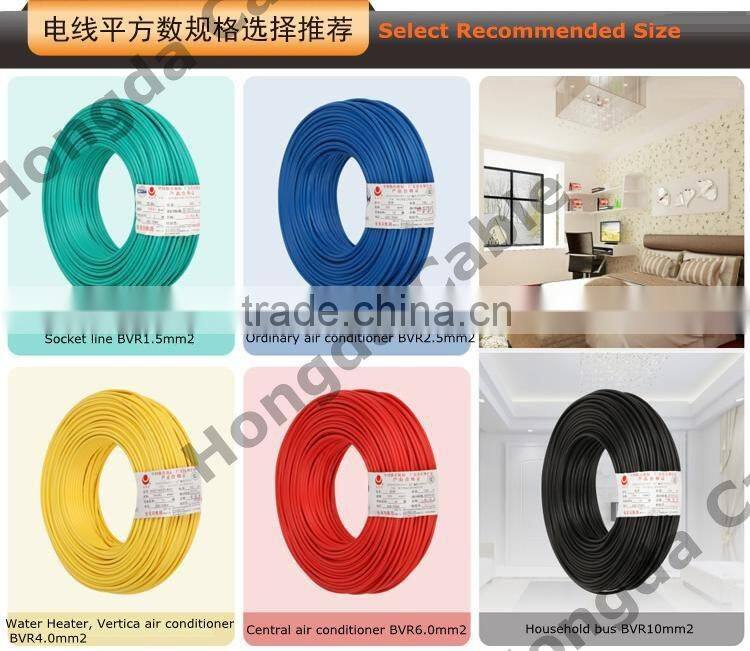

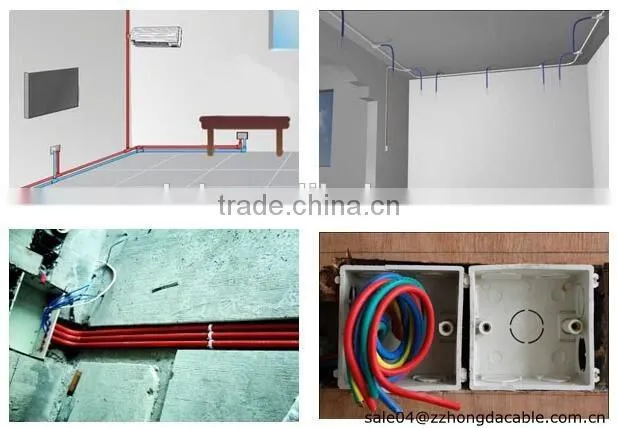

Application of braided electric wire:

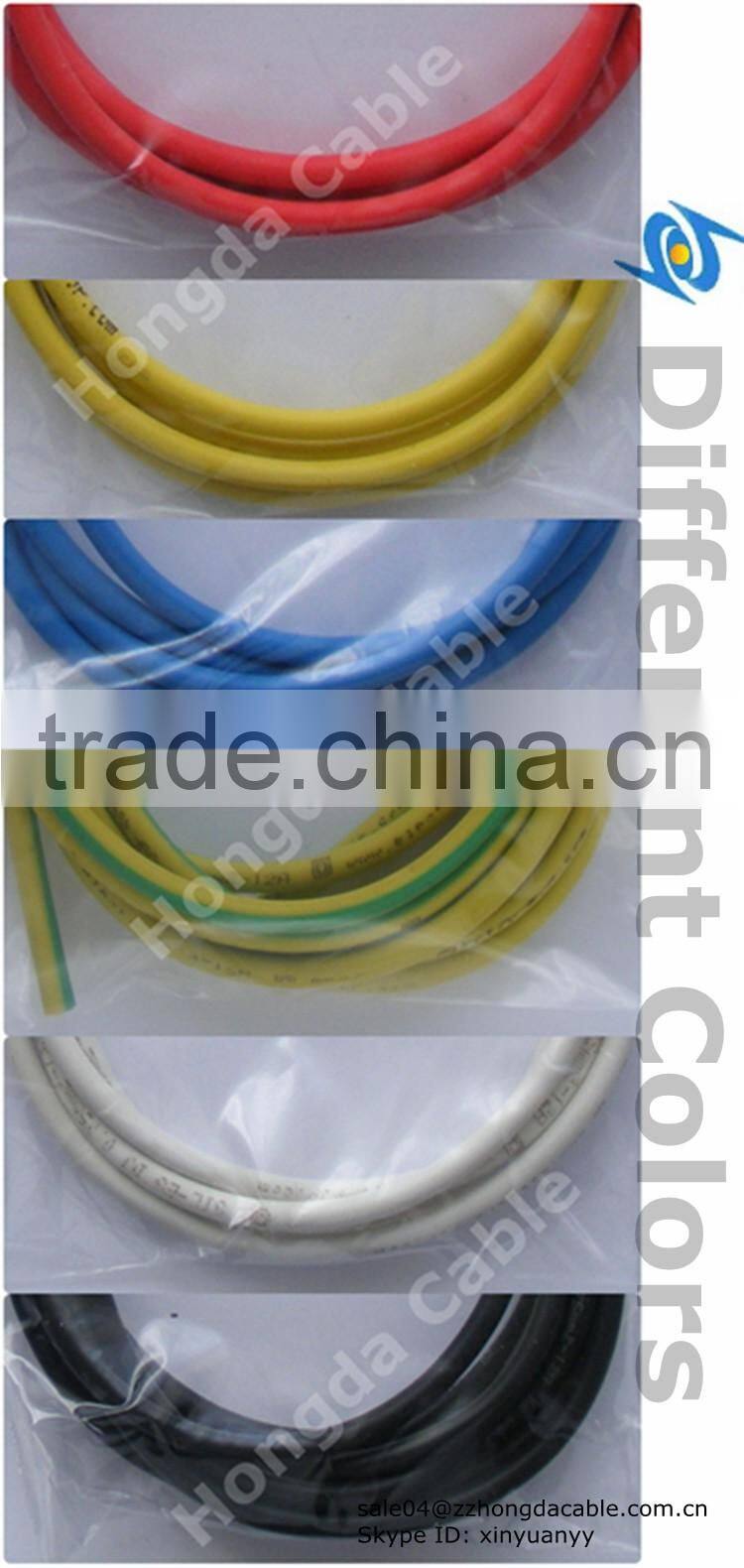

The color of the braided electric wire:
| Type | Spec. (mm2) | Application | Color |

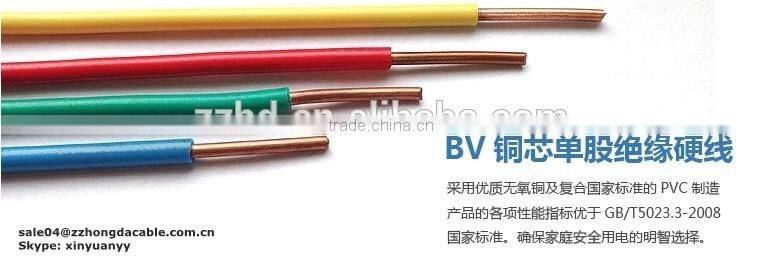

| BV - braided electric wire | 1 |
illumination |
red, yellow, blue, green, two-color (yellow and green) |
| 1.5 |
illumination |
red, yellow, blue, green, two-color (yellow and green) | |
| 2.5 |
Illumination, socket, wall hanging air conditioner |
red, yellow, blue, green, two-color (yellow and green) | |
| 4 |
Central air conditioner, the main line into the household (small set) |
red, yellow, blue, green, two-color (yellow and green) | |
| 6 |
Household bus |
red, yellow, blue, green, two-color (yellow and green) | |
| 10 |
Household bus |
red, yellow, blue, green, two-color (yellow and green) | |
| 16 |
Household bus (200m2) |
red, yellow, blue, green, two-color (yellow and green) | |
|
BVR - braided electric wire |
1 | illumination | red, yellow, blue, green, black, white, two-color (yellow and green), brown |
| 1.5 | illumination | red, yellow, blue, green, black, white, two-color (yellow and green), brown | |
| 2.5 | illumination, socket, wall hanging air conditioner | red, yellow, blue, green, black, white, two-color (yellow and green), brown | |
| 5 | Center air conditioner, the main line into the household (small set) | red, yellow, blue, green, black, white, two-color (yellow and green), brown | |
| 6 | Household bus | red, yellow, blue, green, black, white, two-color (yellow and green), brown | |
| 10 | Household bus | red, yellow, blue, green, black, white, two-color (yellow and green), brown | |
| 16 | Household bus (200m2) | red, yellow, blue, green, black, white, two-color (yellow and green), brown |
braided electric wire

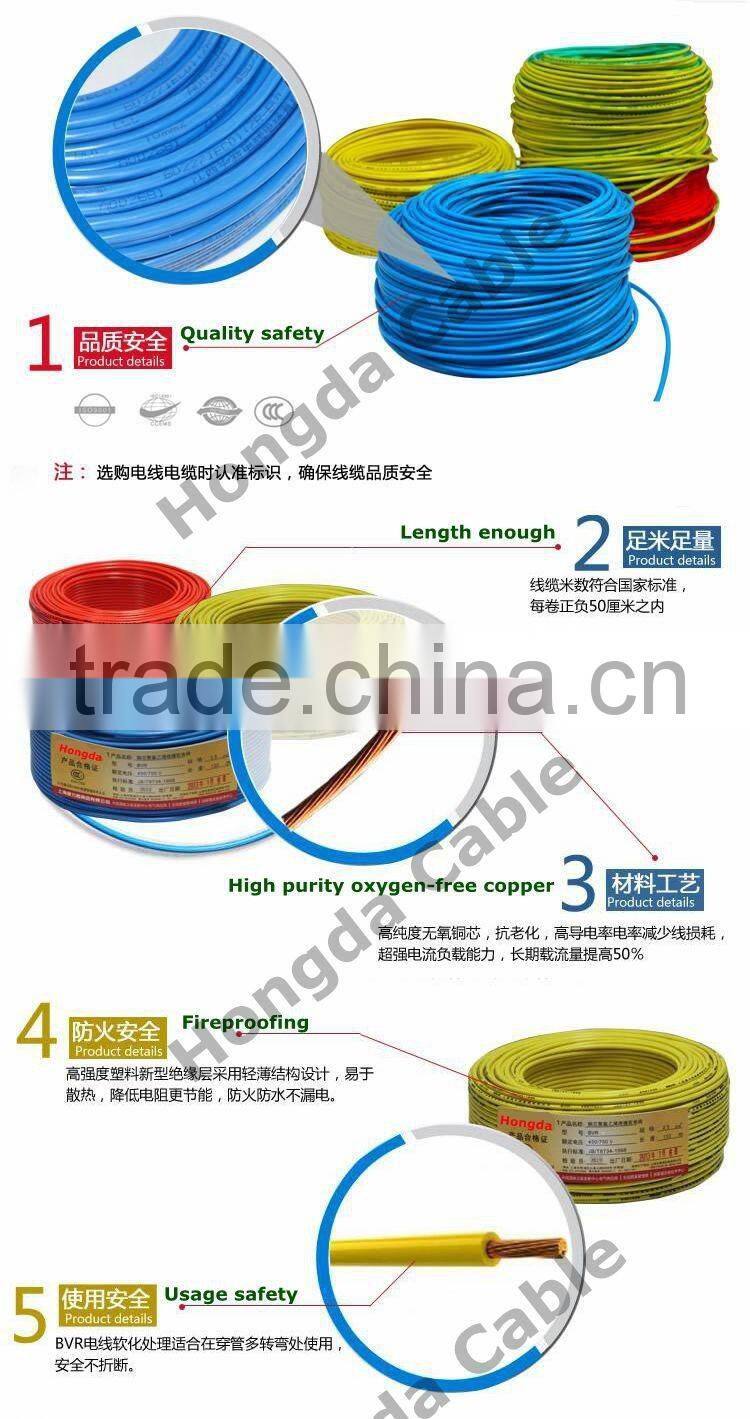

Warranty of braided electric wire:
30 Years Safety, Length enough!!

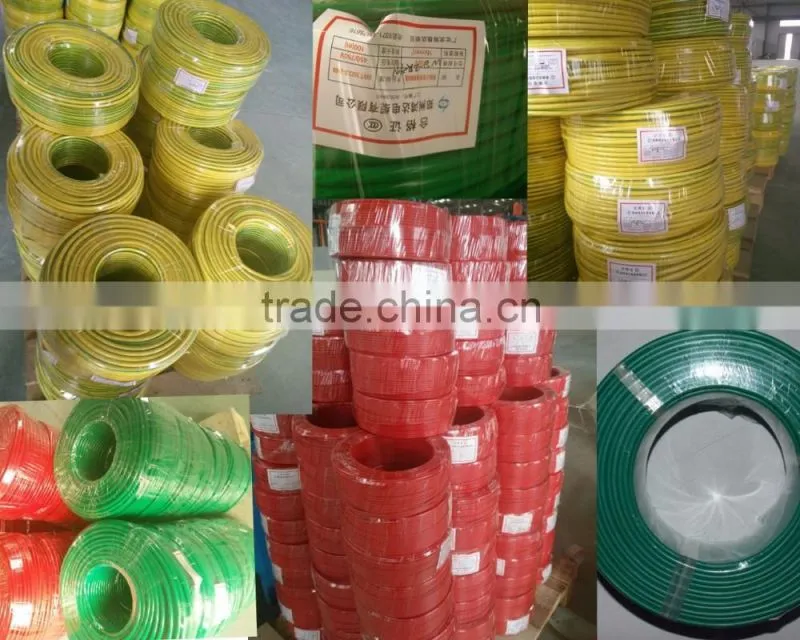

Package of braided electric wire:

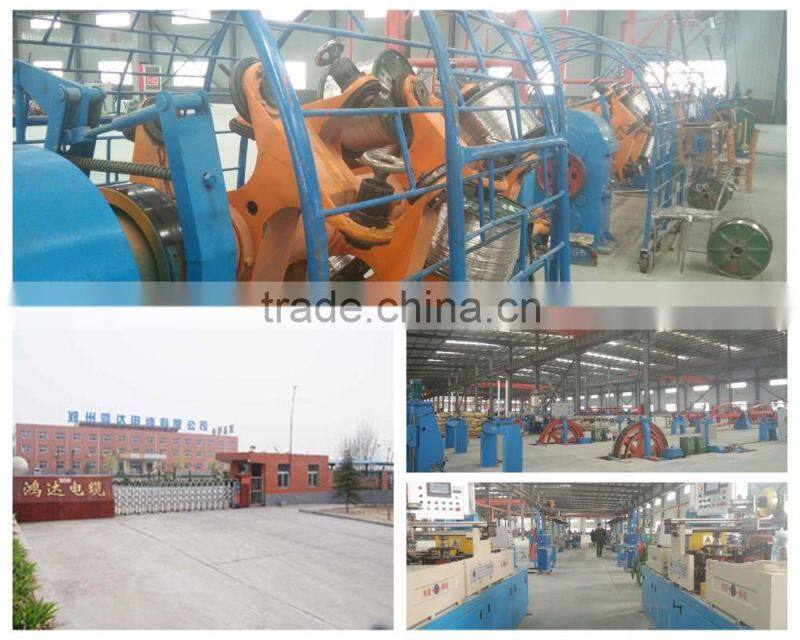

7. Company information copper wire building

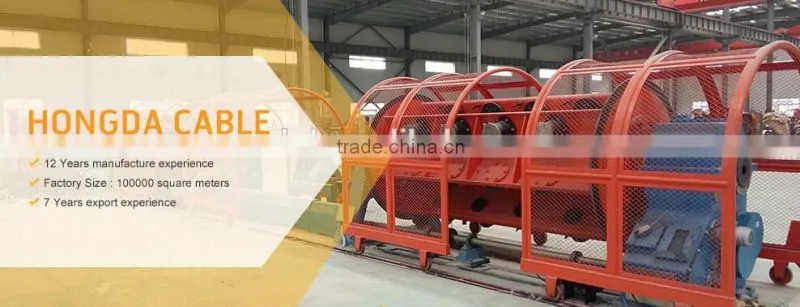

Zhengzhou hongda cable Co., Ltd.
Established Year:1999
Registered capital of RMB:5,000,000
Factory Area:300,000m2
Main products: ABC cable Areial bundle cable ,XLPE insulated power cable ,PVC insulated power cable ,electrical wire ,bare aluminum conductor(AAC AAAC ACSR )and so on
Main export county: USA, Philippines, Malaysia, Indonesia, Venezuela, Colombia, Mexico, Dominica, India, South Africa, Zambia, Kenya and so on.
copper wire building
braided electric wire

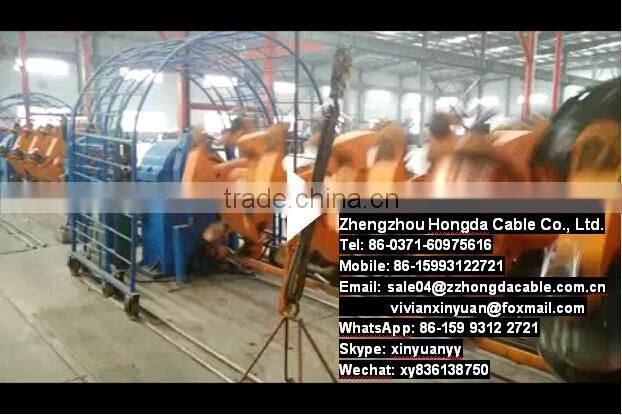

The braided electric wire production process:
Any other information of braided electric wire pls contact with me: copper wire building
Vivian Yuan | Sales Director
Zhengzhou Hongda Cable CO., LTD.
Landline: +86 371 6097 5616 | Fax: +86 371 6097 5616
Email: | Skype ID: xinyuanyy
Cellphone/WhatsApp/Wechat/ICQ: +86 158 3829 0725
Address: Houzhai Industrial Park, Erqi Zone, Zhengzhou, China,450000
braided electric wire
