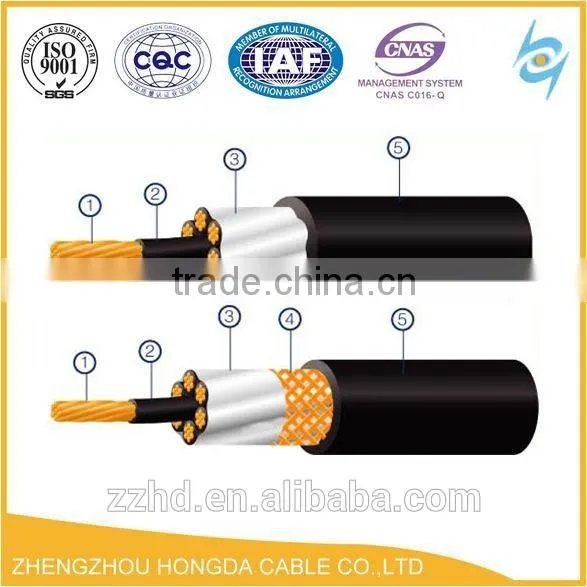

copper pvc insulation electrical control cable
1. Standard
The cable meets the standards requirements of GB9330-88 or IEC 227 (1979). It is suitable for connection of electric apparatus and instruments in electricity
distribution equipment with A.C. rated voltage up to 450V/750V or D.C.1000V
2. Type and Designation
|
Ordinary type |
Flame resistant type |
Designation |
KVV |
ZR-KVV ZRB-KVV ZRA-KVV |
Cu conductor, PVC insulated and sheathed control cables |
KVV22 |
ZR-KVV22 ZRB-KVV22 ZRA-KVV22 |
Cu conductor, PVC insulated, PVC sheathed and tape (steel wire) armored control cables |
KVVP |
ZR-KVVP |
Cu conductor, PVC insulated, PVC sheathed and copper wire braid control cables |
KVVP2 |
ZR-KVVP2 |
Cu conductor, PVC insulated, PVC sheathed and copper tape shielded control cables |
KVVP2-22 |
ZR-KVVP2-22 |
Cu conductor, PVC insulated, PVC sheathed, copper tape shielded and steel tape armored control cables |
Note: The control cable of flame retardant type is mainly used in the place where fire-proof performance is required. The cable compiles to the requirement of the combustion test of
GB12666.5-90 or IEC60332 3:2000. The ZR, ZRA and ZRB represent, respectively, flame retardant Category C, Category A and
Category B. The cable can be produced with steel tape or steel wire armor.
3. Specifications
Type |
Nominal Cross-sectional Area (mm2) |
Number of cores |
|
KVV ZR-KVV KVVP KVVP2 ZR-KVVP ZR-KVVP2 |
1.0,1.5,2.5 |
2,3,4,5,6,7,8,10,12,14,16,19,24,27,30,37,41,44,48,52,61 |
|
4.6 |
2,3,4,5,7,8,10,14 |
|
10 |
2,4 |
|
KVV22 ZR-KVV22 KVVP2-22 ZR-KVVP2-22 |
1.0 |
