VDE Standard Flexible in Stranded Bare Copper YY / CY / LIYCY / LIYCY (TP) Paired Control Cable

VDE Standard Flexible in Stranded Bare Copper YY / CY / LIYCY / LIYCY (TP) Paired Control Cable thumbnail-1
VDE Standard Flexible in Stranded Bare Copper YY / CY / LIYCY / LIYCY (TP) Paired Control Cable thumbnail-2
VDE Standard Flexible in Stranded Bare Copper YY / CY / LIYCY / LIYCY (TP) Paired Control Cable thumbnail-3
VDE Standard Flexible in Stranded Bare Copper YY / CY / LIYCY / LIYCY (TP) Paired Control Cable photo-1
VDE Standard Flexible in Stranded Bare Copper YY / CY / LIYCY / LIYCY (TP) Paired Control Cable photo-2
VDE Standard Flexible in Stranded Bare Copper YY / CY / LIYCY / LIYCY (TP) Paired Control Cable photo-3
US$ 0.1 - 18 MOQ: 0 Meter
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
Hongda Cable
Model Number:
YY / CY / LIYCY / LIYCY (TP) Paired Control Cable
Contact Supplier Request Quote Chat Now
Zhengzhou Hongda Cable Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name Hongda Cable
Model Number YY / CY / LIYCY / LIYCY (TP) Paired Control Cable
Application Instrumentation
Conductor Material Copper
Jacket PVC
Insulation Material PVC

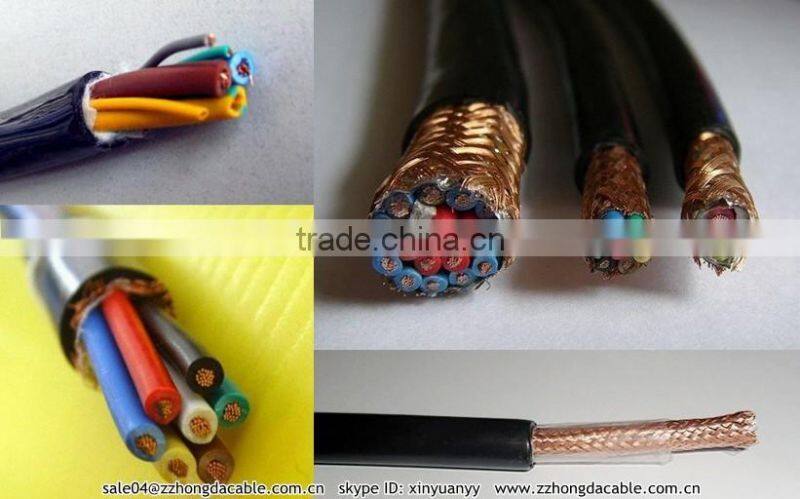

VDE Standard Flexible in stranded bare copper YY / CY / LIYCY / LIYCY (TP) Paired Control Cable

Product Description

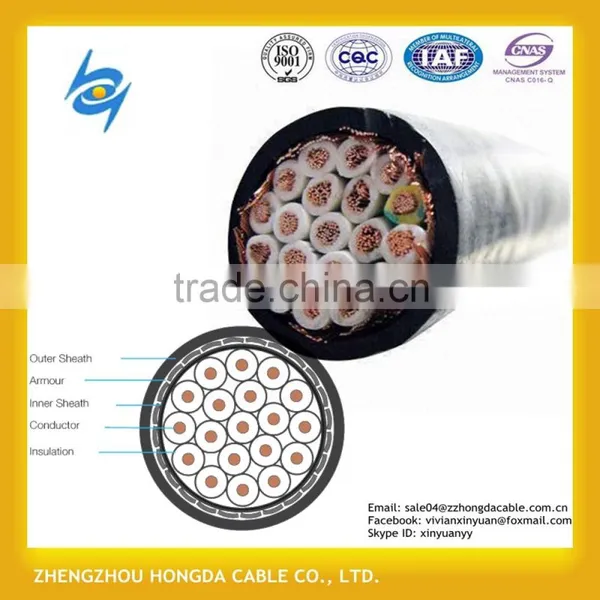

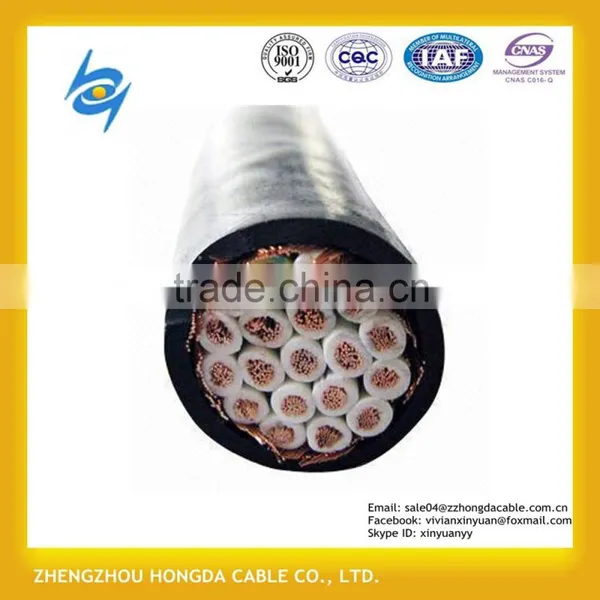

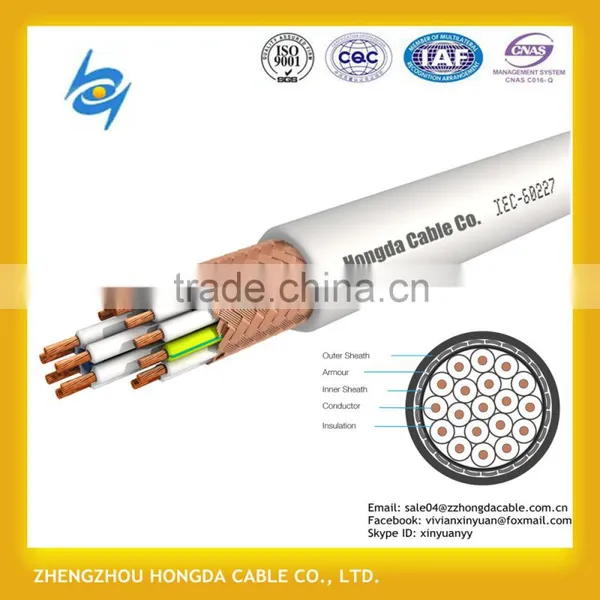

VDE Standard Control Cable

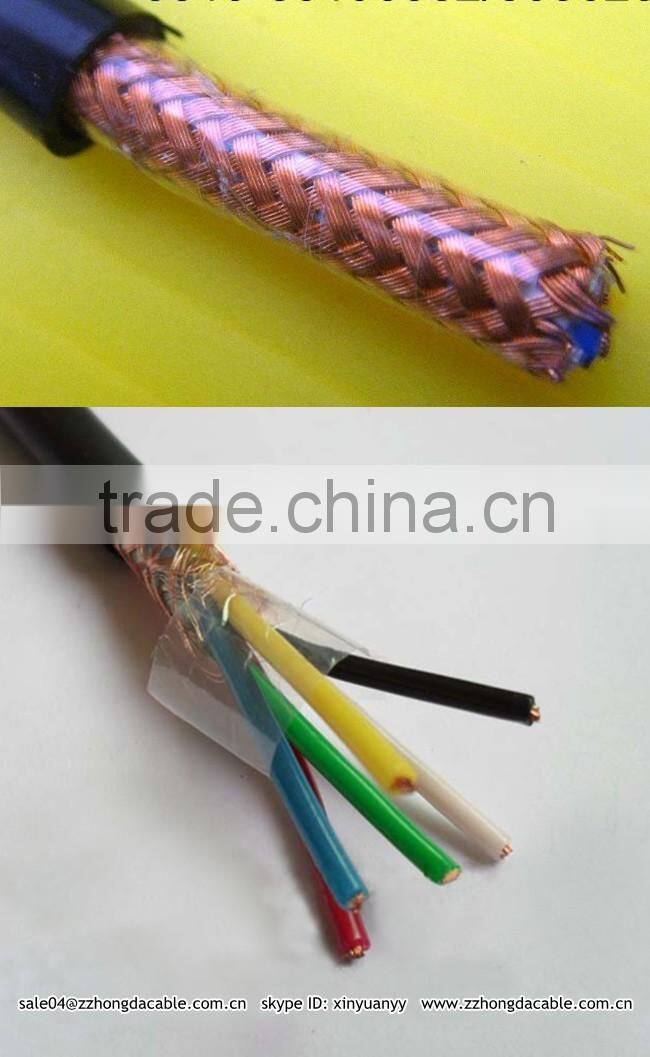

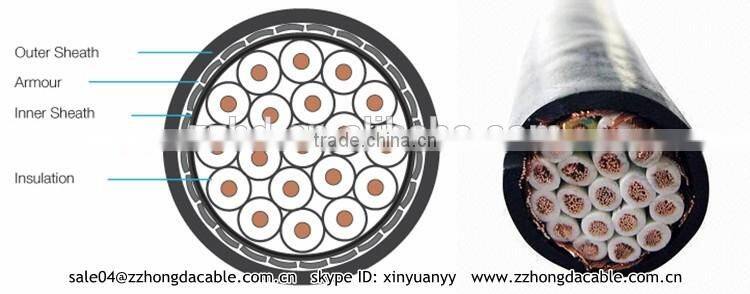

LiYCY PVC/TCWB/PVC Control Cable

  1. Application : Indoor installation for electronic control and regulating gear office machinery. These cables have feature for screening which defect external electrical influences and ensures precise flues transmission.
  2. Standards: Generally to BS6500 and VDE0250
  3. Conductor: Fine Wire Strands of Plain Annealed Copper strands to BS6360.
  4. Insulation: PVC
  5. Laying UP: Cores twisted together
  6. Wrapping: Polyester tape

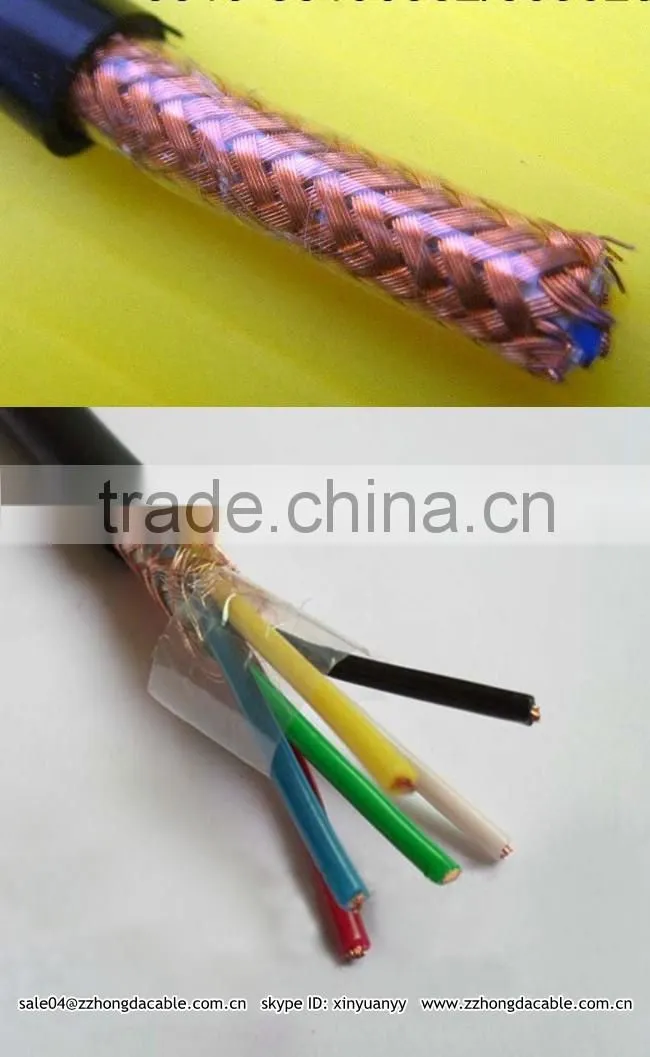

  7. Screen: Tinned Copper Wire Braid
  8. Sheath: Grey PVC
  9. Voltage Rating : Working Test
    0.14 - 0.34 mm2 250v 1000v
    0.5 - 1.5 mm2 300v 2000v
    2.5 - 6 mm2 500v 2000v
  10. Temperature Range: Static -20°C to +80°C ,Flexing -5°C to +70°C
  11. Minimum Bending Radius: Fixed: 6 x Cable Diameter ,Flexing: 15 x Cable Diameter
  12. Core Identification : Number Coded, Black Cores with White Numbers + Green/Yellow
  13. Mutual capacitance: C/C approx 120 nF / km ,C/C approx 160 nF/ km
  14. Inductance: approx. 0,65 mH/km

VDE Standard Flexible in stranded bare copper YY / CY / LIYCY / LIYCY (TP) Paired Control Cable

0.14 mm 2 LiYCY control cable

Cores
& mm 2

Weight
Kg/KM

O/D
mm

1 x 0.14

16

3.6

2 x 0.14

20

3.8

3 x 0.14

25

4.0

4 x 0.14

30

4.3

5 x 0.14

36

4.6

6 x 0.14

40

5.0

7 x 0.14

41

5.2

8 x 0.14

44

5.6

10 x 0.14

56

6.3

12 x 0.14

60

6.4

14 x 0.14

65

6.7

16 x 0.14

81

7.2

18 x 0.14

93

7.6

21 x 0.14

103

8.3

24 x 0.14

117

9.0

25 x 0.14

120

9.0

27 x 0.14

124

9.1

30 x 0.14

136

9.4

36 x 0.14

160

10.0

40 x 0.14

170

10.3

44 x 0.14

186

11.1

52 x 0.14

200

11.5

61 x 0.14

250

12.1



0.25 mm 2 LiYCY control cable

Cores
& mm2

Weight
Kg/KM

O/D
mm

1 x 0.25

17

3.1

2 x 0.25

30

4.5

3 x 0.25

37

5.1

4 x 0.25

44

5.2

5 x 0.25

51

5.7

6 x 0.25

55

6.1

7 x 0.25

60

6.4

8 x 0.25

77

7.1

10 x 0.25

93

8.1

12 x 0.25

104

8.4

14 x 0.25

115

8.7

16 x 0.25

132

8.9

18 x 0.25

137

9.4

21 x 0.25

173

10.4

24 x 0.25

184

11.4

25 x 0.25

190

11.5

27 x 0.25

198

11.6

30 x 0.25

212

11.9

36 x 0.25

238

12.7

40 x 0.25

260

13.1

44 x 0.25

290

14.3

52 x 0.25

333

14.9

61 x 0.25

382

15.8



0.34 mm2 LiYCY control cable

Cores
& mm 2

Weight
Kg/KM

O/D
mm

2 x 0.34

33

5.0

3 x 0.34

42

5.4

4 x 0.34

49

5.8

5 x 0.34

59

6.1

6 x 0.34

64

6.6

7 x 0.34

69

6.7

8 x 0.34

84

7.4

10 x 0.34

106

8.5

12 x 0.34

119

8.7

14 x 0.34

132

9.1

16 x 0.34

146

9.6

18 x 0.34

188

10.1

21 x 0.34

193

10.9

24 x 0.34

213

12.0

27 x 0.34

232

12.3

30 x 0.34

253

12.7

36 x 0.34

292

13.6

40 x 0.34

318

14.0

52 x 0.34

400

15.8

61 x 0.34

454

16.6



0.5 mm2 LiYCY control cable

Cores
& mm2

Weight
Kg/KM

O/D
mm

2 x 0.5

42

5.4

3 x 0.5

51

5.8

4 x 0.5

61

6.5

7 x 0.5

98

7.8

12 x 0.5

156

10.1

18 x 0.5

215

11.8

25 x 0.5

314

14.4



0.75 mm2 LiYCY control cable

Cores
& mm2

Weight
Kg/KM

O/D
mm

2 x 0.75

56

6.7

3 x 0.75

70

7.1

4 x 0.75

95

7.6

5 x 0.75

130

8.2

7 x 0.75

168

8.9

12 x 0.75

232

12.0

18 x 0.75

315

13.9

25 x 0.75

418

16.5

30 x 0.75

500

18.0



1 mm2 LiYCY control cable

Cores
& mm2

Weight
Kg/KM

O/D
mm

2 x 1

84

7.7

3 x 1

110

8.5

4 x 1

130

9.2

5 x 1

156

9.9

7 x 1

192

10.7

12 x 1

265

13.7

18 x 1

380

15.9

25 x 1

475

17.5

34 x 1

629

21.5



1.5 mm2 LiYCY control cable

Cores
& mm 2

Weight
Kg/KM

O/D
mm

2 x 1.5

97

8.1

3 x 1.5

125

8.9

4 x 1.5

165

9.7

5 x 1.5

193

10.5

7 x 1.5

245

11.3

12 x 1.5

365

14.5

18 x 1.5

553

16.9

25 x 1.5

720

20.1

30 x 1.5

776

20.7

42 x 1.5

1140

25.5



2.5 mm2 LiYCY control cable

Cores
& mm2

Weight
Kg/KM

O/D
mm

2 x 2.5

148

10.1

3 x 2.5

188

10.6

4 x 2.5

236

11.6

5 x 2.5

270

12.6

7 x 2.5

340

13.7

12 x 2.5

585

18.5

18 x 2.5

725

19.7



4 mm2 LiYCY control cable

Cores
& mm2

Weight
Kg/KM

O/D
mm

3 x 4

250

12.4

4 x 4

302

13.5

5 x 4

370

14.8

7 x 4

473

16.1



6 mm2 LiYCY control cable

Cores
& mm2

Weight
Kg/KM

O/D
mm

3 x 6

285

13.9

4 x 6

412

15.2

5 x 6

505

16.7



10 mm2 LiYCY control cable

Cores
& mm2

Weight
Kg/KM

O/D
mm

4 x 10

620

20.8

5 x 10

796

22.9



16 mm2 LiYCY control cable

Cores
& mm2

Weight
Kg/KM

O/D
mm

4 x 16

1090

23.2

5 x 16

2070

25.6



25 mm2 LiYCY control cable

Cores
& mm2

Weight
Kg/KM

O/D
mm

4 x 25

1787

28.2

5 x 25

2047

31.1



35 mm2 LiYCY control cable

Cores
& mm2

Weight
Kg/KM

O/D
mm

4 x 35

2142

31.5



VDE Standard Flexible in stranded bare copper YY / CY / LIYCY / LIYCY (TP) Paired Control Cable

VDE Standard Flexible in stranded bare copper YY / CY / LIYCY / LIYCY (TP) Paired Control Cable



VDE Standard Flexible in stranded bare copper YY / CY / LIYCY / LIYCY (TP) Paired Control Cable

VDE Standard Flexible in stranded bare copper YY / CY / LIYCY / LIYCY (TP) Paired Control Cable

VDE Standard Flexible in stranded bare copper YY / CY / LIYCY / LIYCY (TP) Paired Control Cable

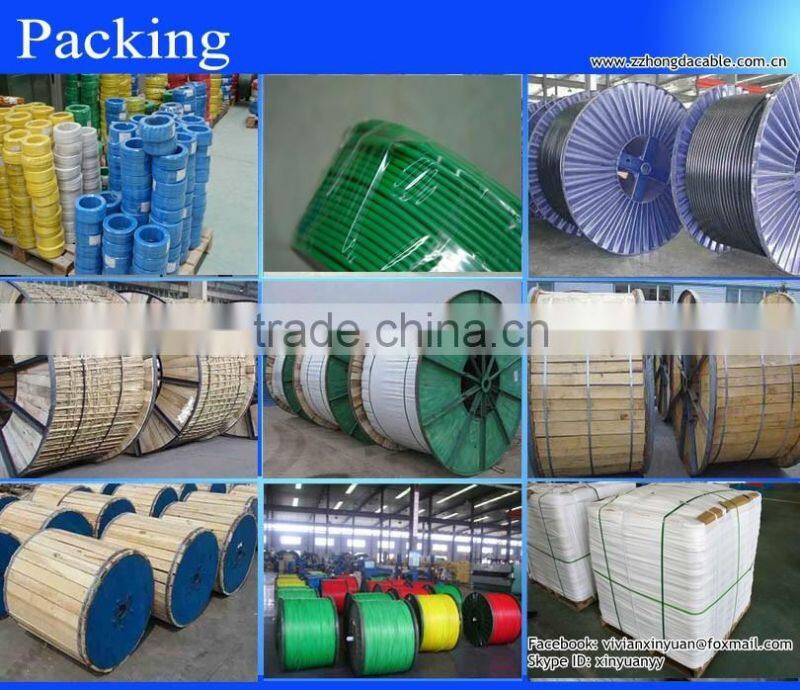

Packaging & Shipping



Packaging & shipping

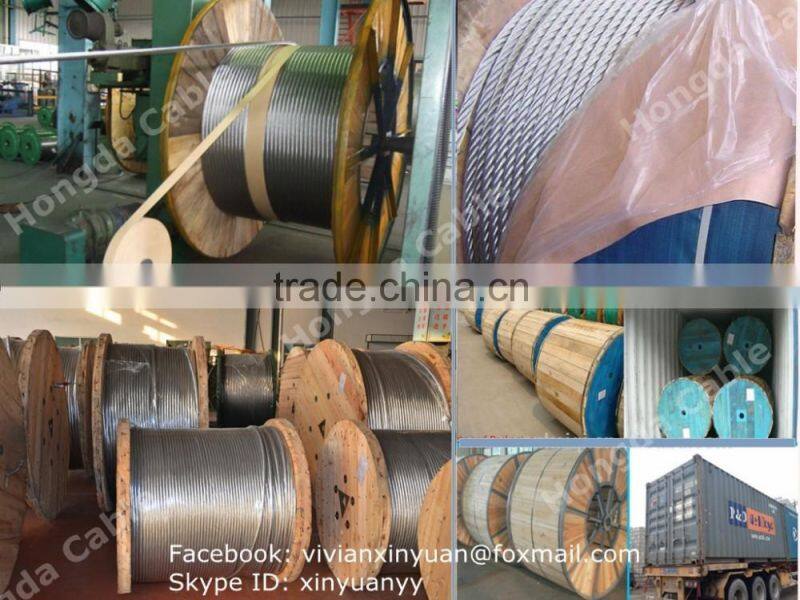

Packaging Detail: export wooden drum ,wooden iron drum and other export standard package

Delivery Detail: 10 days and also depend on the quantity

VDE Standard Flexible in stranded bare copper YY / CY / LIYCY / LIYCY (TP) Paired Control Cable

VDE Standard Flexible in stranded bare copper YY / CY / LIYCY / LIYCY (TP) Paired Control Cable



Our Services



Our service

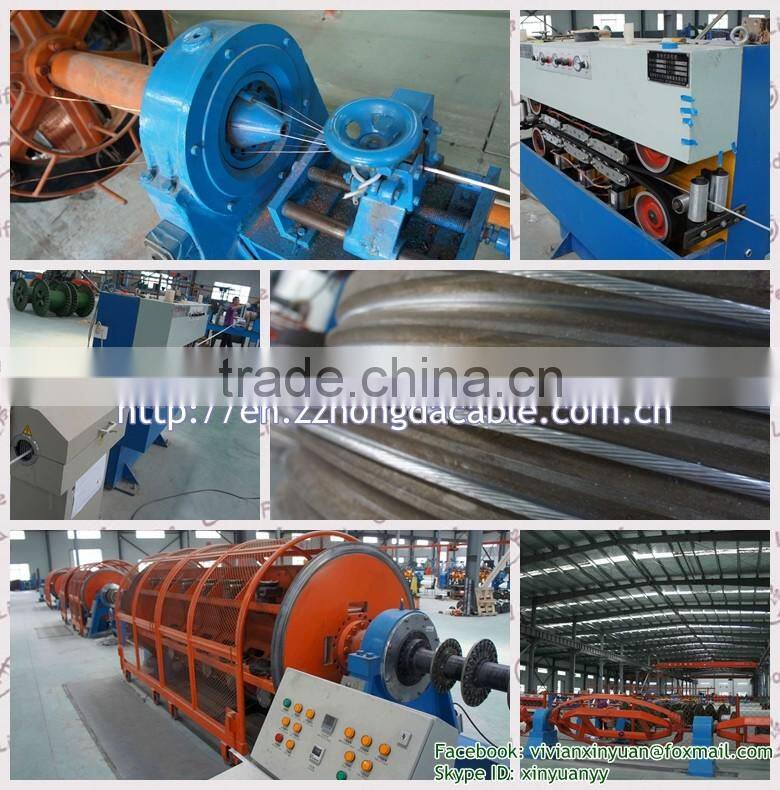

we are one of the biggest manufacture in china mainland. We will give you a perfect shopping experience . If you need visit our factory , we will meet you at the airport or train station.

Also we can offer other service

Custom Merchandise:we can make cable as your need include the color ,size and so on.we also offer OEM .

Complete Course Tracking:we can offer you the service from the business begin to you get the cable and use it .

Company Information



Company information

Cable sample: we can offer the sample free .

Zhengzhou hongda cable Co., Ltd.
Established Year:1999
Registered capital of RMB:5,000,000
Factory Area:300,000m2

Main products:

Areial bundle cable ,XLPE insulated power cable ,PVC insulated power cable ,electrical wire ,bare aluminum conductor(AAC AAAC ACSR )and so on

Main export county:

USA Philippines Malaysia Indonesia Venezuela, Colombia  Mexico

Dominica  India  South  Africa  Zambia  Kenya and so on .

VDE Standard Flexible in stranded bare copper YY / CY / LIYCY / LIYCY (TP) Paired Control Cable

VDE Standard Flexible in stranded bare copper YY / CY / LIYCY / LIYCY (TP) Paired Control Cable

Why Choose Us

1. We have a large production base, and advanced production equipment
2.  Have an competitive price and high quality
3.  Excellent after-sale service
4.  Attractive design and various styles
5.  Free issue:packaging list,invoice,CD installation
6.  Powerful technology R&D team
7.  Strict quality assurance system and perfect testing means
8.  Advanced process equipment
9.  Painted with powerful antiseptic Anticorrosion material paints
10. Delivery on  time
11. Our roller coaster sales to Middle East,Africa,Russia,Southeast Asia, etc.
12.We have a good reputation in the overseas
