Multi Copper Core XLPE Insulated PVC Jacket External Power Cablegood quality
fast delivery
External Power Cable
IEC ASTM UL

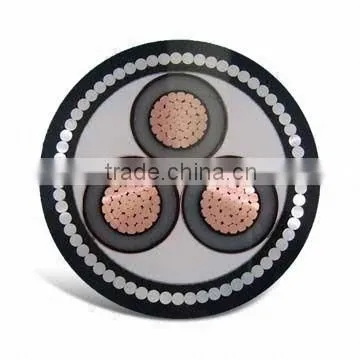

Multi Copper Core XLPE Insulated PVC Jacket External Power Cable
1). Standard: IEC60502
2). The rated voltages U0/U(Um) of the cables considered in this standard are as follows: U0/U(Um) =0.6/1KV 3.6/6(7.2)-6/10(12)-8.7/15(17.5)-12/20(24)-18/30(36)KV
XLPE cable, medium voltage armored XLPE power cable(cu/XLPE/cts/PVC/swa/PVC) is included the followings:
1kv-35 kv multi-cores/ copper or aluminium conductor/ XLPE insulation / copper tape or copper wire screen / galvanized steel wire armored / PVC or PE sheath / power cable,
The products are mainly complying with iec 60502 standard, also can be produced according to OEM requirements and other standards, such as bs standard, din standard, ASTM standard, etc.
Voltage grade is up to 35kv, cross-section area can be up to 400 sqmm (copper or aluminiun conductor). Conductor long-time operating temperature is 90 degrees. In short circuit, conductor highest temperature should be not more than 250 degrees.
3). Detail Description or Construction:
Conductor: Solid or stranded copper
Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)
Filler: Polypropylene filament with lapped binding tape
Binder: Binding tape
Inner sheath: Polyvinyl chloride (PVC)
Amour: Galvanized steel wire armored or steel tape armored
Sheath: Polyvinyl chloride (PVC)
4). Application: For laying in ground along route with large difference of level able to bear external mechanical forces.
5). Mark: According to the customer.
6). Installation: CU/XLPE/SWA/PVC and CU/PVC/SWA/PVC power cable can be installed in air, duct, conduit or direct burial. It is recommended that the installation instructions indicated by the Local Electric Code, or any equivalent, be followed, so that the safeguarding of persons and the integrity of the product will not be affected by deficiencies in the installation.
7). Properties and functions:
The cable is extruding weather ability XLPE insulation, weather ability
HDPE insulation or black weather ability PVC insulation out of the compacting
Copper, and aluminum conductor. With simple construction, good mechanical, physical and electrical properties, enough safety, it also has good properties of resistance to tracking, surface discharge resistance, resistance to weathering. It has smaller laying distance, line length, voltage drop when comparing with bare wire, especially in reducing accident and ensuring safety of the body. The cable can be used in city, country, mountain area, forest area, mining area, and is an all-weather new product of cable.
Application: Construction,Industrial,Power Plant, Mines, Petrochemical industry, steel & iron plants, high buildings, tunnel, metro shuttle, ships, civil projects and so on.
We can also supply customized products according to your request.
Table1-1, Type Description & Application Occasion of Cable
| Description | Application Occasion | GB China Type | |
| Cu | Al | ||
| XLPE Insulated PVC Sheath Power Cable | To be laid indoors,in tunnel,cable pipeline,the cable couldn't bear mechanical force outside. | YJV | YJLV |
| XLPE Insulated PE Sheath Power Cable | YJY | YJLY | |
| XLPE Insulated,Steel Tape Armored,PVC Sheathed Power Cable | To be laid underground,able to bear a certain positive pressure. | YJV22 | YJLV22 |
| XLPE Insulated,Steel Tape Armored,PE Sheathed Power Cable | YJV23 | YJLV23 | |
| XLPE Insulated,Non-Magnetic Steel Tape Armored,PVC Sheathed Power Cable | YJV62 | YJLV62 | |
| XLPE Insulated,Thin Steel Wire Armored,PVC Sheathed Power Cable | Apply to shafts,water and soil,able to bear the larger positive pressure. | YJV32 | YJLV32 |
| XLPE Insulated,Non-Magnetic Thick Steel Wire Armored,PVC Sheathed Power Cable | YJV72 | YJLV72 | |
| XLPE Insulated,Thick Steel Wire Armored,PVC Sheathed Power Cable | Apply to shafts,underwater and seabed,able to bear the positive pressure and the pull. | YJV42 | YJLV42 |
| XLPE Insulated,Concentric Conductor,PVC Sheathed Power Cable | It is used for power transmission on power lines with voltage rated at 0.6/1 kV and below.It is widely used in petrochemical industry,metallurgy,mines and high-rise buildings,etc. | YJV-TP | YJLV-TP |
| XLPE Insulated,Concentric Conductor Steel Tape Armored, PVC Sheathed Power Cable | YJV22-TP | YJLV22-TP | |
| XLPE Insulated,Metallic Shielded,PVC Sheathed Power Cable | It is specially suitable for occasions with precision electronic devices,such as computer center,space & aviation supervision center,intellectual buildings,etc. | YJVP2 | YJLVP2 |
| XLPE Insulated,Steel Tape Armored,Metallic Shielded,PVC Sheathed Power Cable | YJV22P2 | YJLV22P2 | |
| XLPE Insulated,PVC Sheathed,Fire-Proof Power Cable | It is used for important occasions with high demand on fire-resistant performance,such as high-rise building,power station,power plant,mine,chemical industry,subway,etc. | NH-YJV | / |
| XLPE Insulated,PVC Sheathed,Steel Tape Armored Fire-Proof Power Cable | NH-YJV22 | / | |
| XLPE Insulated,PVC Sheathed,Fire-Proof Control Cable | NH-KYJV | / | |
| XLPE Insulated,PVC Sheathed,Steel Tape Armored Fire-Proof Control Cable | NH-KYJV22 | / | |
