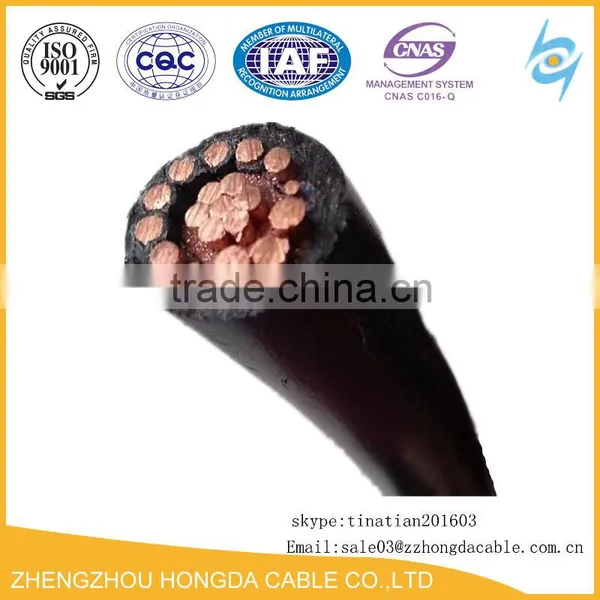

Help CenterAluminum/Copper Conductor Concentric Cable Wire With Neutral Conductor Price
Related Products
-
Types of Electrical Underground Cable 16mm Aluminium XLPE Insulated CableUS$ 0.1 - 100MOQ: 1 Kilometer -
Full Sizes Cables and WiresUS$ 0.2 - 25MOQ: 1 Kilometer
-
Aerial Service Concentric 600V CableUS$ 0.5 - 10MOQ: 5000 Kilometers
-
Copper Aluminum Conductor PVC/XLPE Insulation Hot Sale Concentric Overhead CableUS$ 0.1 - 10MOQ: 5000 Kilometers
-
0.6/1KV Copper Wire Armoured PVC Jacket Copper Concentric Overhead Aerial CableUS$ 0.5 - 10MOQ: 5000 Kilometers
Concentric Cables PVC Insulated Copper Wire Armored Cable
Voltage:
600/1000V

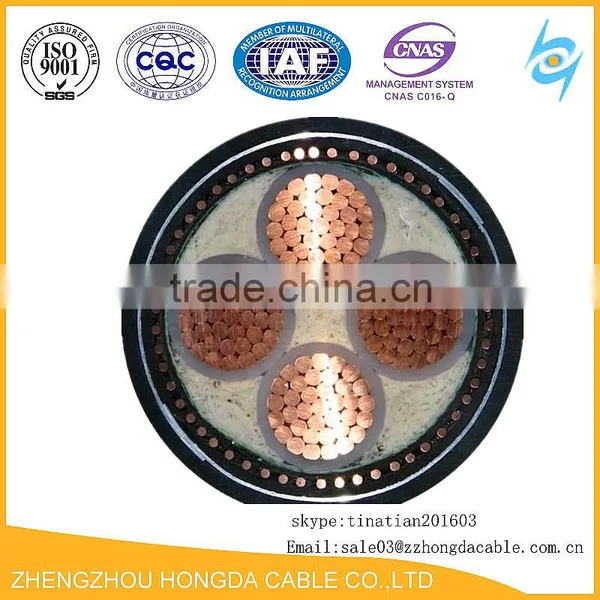

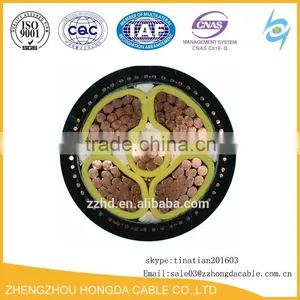

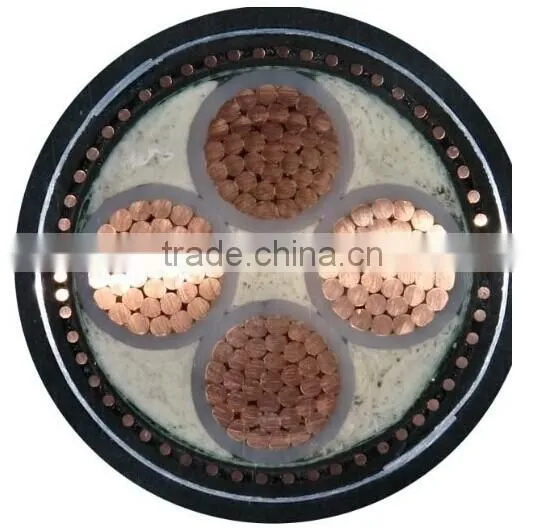

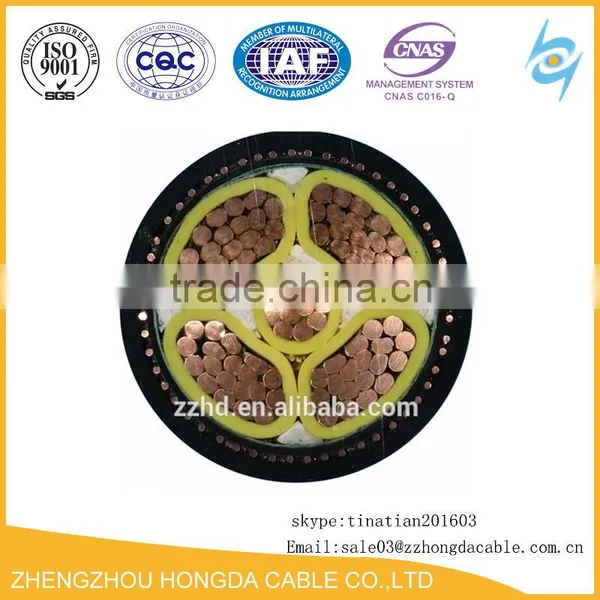

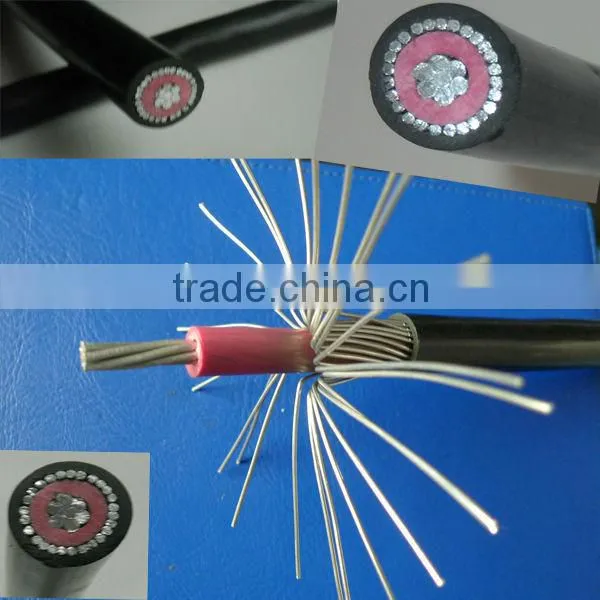

Concentric Cable Construction
Conductor of concentric cable
Plain copper or aluminum conductors, IEC 60228, solid or stranded versions, conductor types
10-16 mm² round, solid conductors .
10-25 mm², stranded conductor.
35-240 mm², sector shaped conductor, stranded
Insulation of concentric cable
PVC(Polyvinyl Chloride ), XLPE(Cross-Linked Polyethylene)
Filler
PVC(Polyvinyl Chloride)

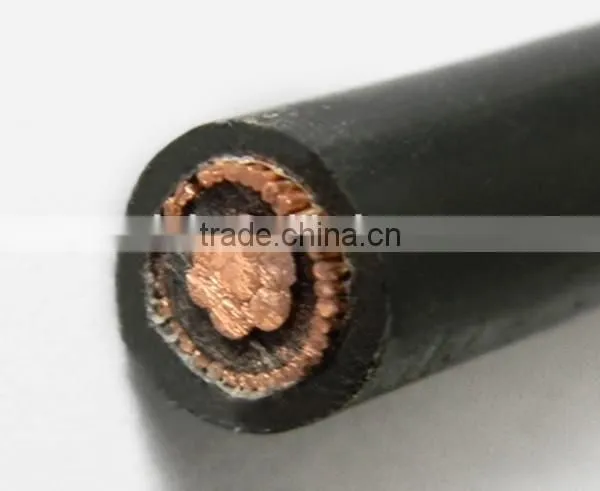

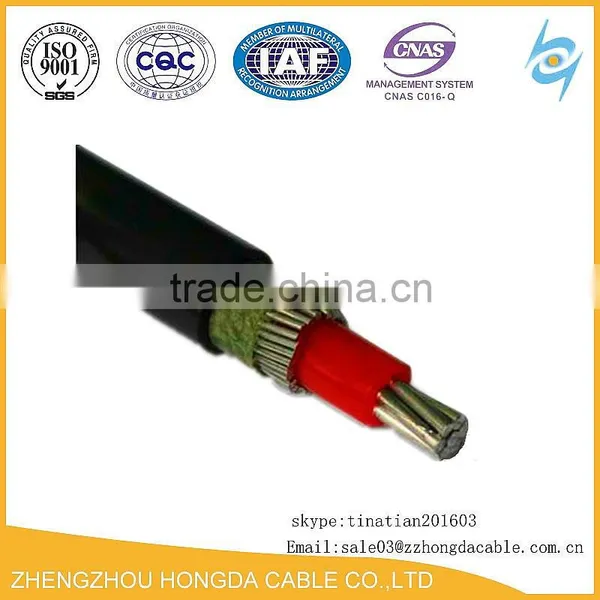

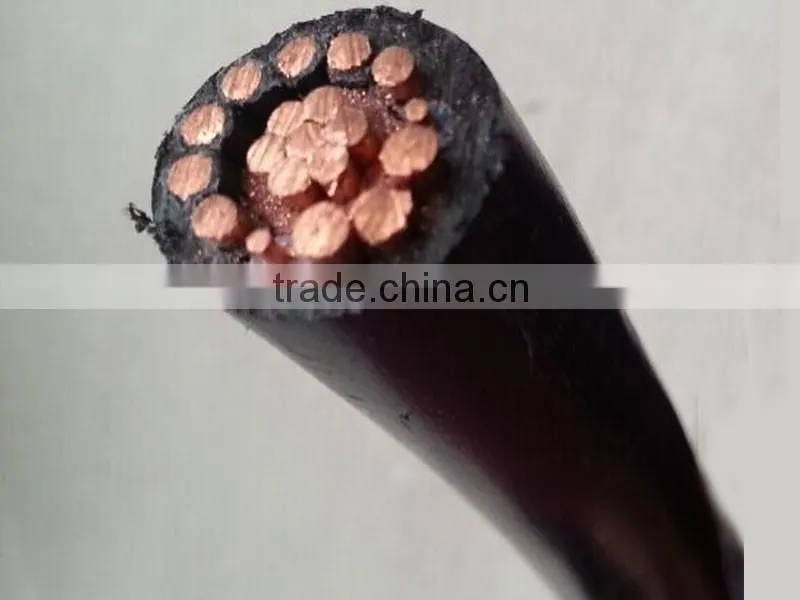

Concentric Conductor
Copper wires , Aluminum wires
Sheath
PVC(Polyvinyl Chloride)
Application
Distribution and signalling power cable for static outdoor application (with protection against direct UV-irradiation), in ground, in water, within facilities, in cable canals, in concrete, in conditions requiring increased electric protection and protection against mechanical damages. Used in electric power plants, transformer stations, industrial plants, metropolitan networks and other electric plants and for connection of signalling devices in industry, traffic and similar. Concentric conductor can be used as neutral, protective or earth connection, and if there is a danger of damages caused by digging, it acts as protection against contact voltage in case of rough insulation damage.
Minimum Bending Radius
Single Core: 15* overall diameter
Multi Core: 12* overall diameter
0.6/1kV 1+1-core Cu(Al)/PVC/PVC Concentric Conductor Cable |
Nominal cross sectional area of conductor(mm2) |
1×10+1×10 |
1×16+1×16 |
1×25+1×25 |
2×10+1×10 |
2×16+1×16 |
2×25+1×25 |
