Specifications
1,V.35 Male Connetor Crimp Housing2,ROHS compliant
3,High quality, Competitive price
4,Quick delivery time
Material & Finish
PRODUCT CLASSIFICATION : V.35 CONNECTOR

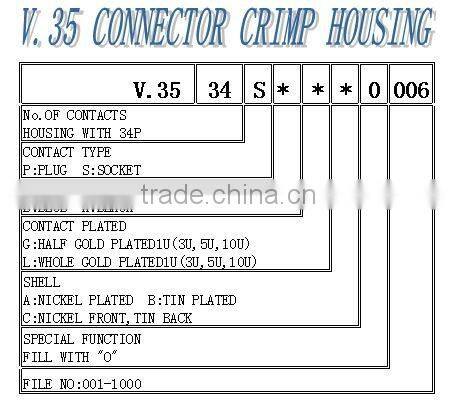

MODEL : FUYV.35006-34
CONNECTOR Gender : Male
TERMINAL GENDER : Male
CONTACT PLATED : 1U,3U,5U,10U,15U,30U
NO. OF CONTACT : 34 way
INSULATOR MATERIAL: PBT & Glass-fibre reinforced
SHELL : Tin Plated
ELECTROCAL
CURRENT RATING : 7AMP
DIELECTRIC WITHSTANDING VOLTAGE : AC 500Vmin(for 1 minute)
INSULATION RESISTANCE : 500Mn min.(at 500v DC)
CONTACT RESISTANCE : 25Mn max.mated
WORKING TEMPERATURE : -55 °C to +105°C
Order Information
Remark : This is general information for each of order.
Plz reference to filling out this form before inquiry.
We will feedback the latest information to you on time.
We are look forwar to long term business cooperation with you.
Features
1)V.35 series connectors have been designed for use in industrial and commercial telecommunication systems that require a UL-approved high quality interconnect for data transfer.
2) V.35 connector can provide a simple and inexpensive solution that allows for superior speed and noise immunity by using differential signalling on the data and clock lines.
3) V.35 connector is in use on DSU, CSU, router, and frame relay systems throughout the world, with achieved speeds of up to 2 mbps.
4) It can be loaded in any contact pattern from 1 to 34 contacts per connector and can be custom loaded in any configuration.
