competitive price FRP fiberglass pultrusion machine
- 100 Set / Sets per Month
- Tianjin Shanghai and other we can talk about
- T/T Credit Card
Product Details
Condition: | New | Application: | Pipe | Plastic Processed: | Polystyrene |
Place of Origin: | Hebei, China | Brand Name: | Sinta | Model Number: | ST-ST-P0906 |
Power(W): | 3.7KW*2 | Dimension(L*W*H): | 7.95*0.75*1.55M | Certification: | CE |
After-sales Service Provided: | Overseas service center available |
Product Description

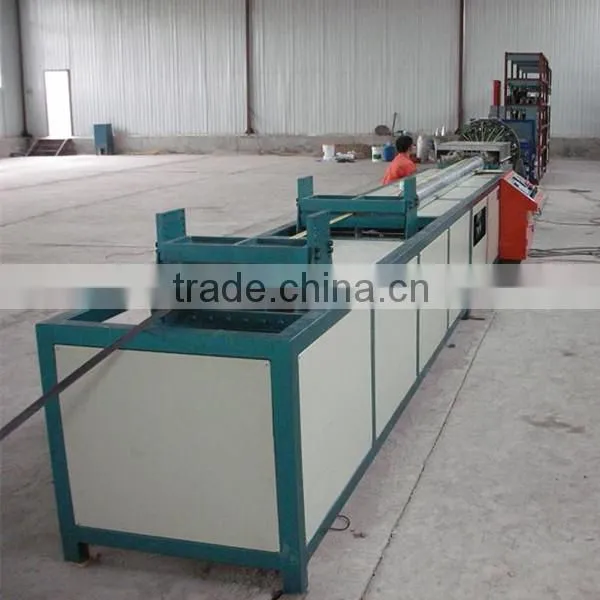

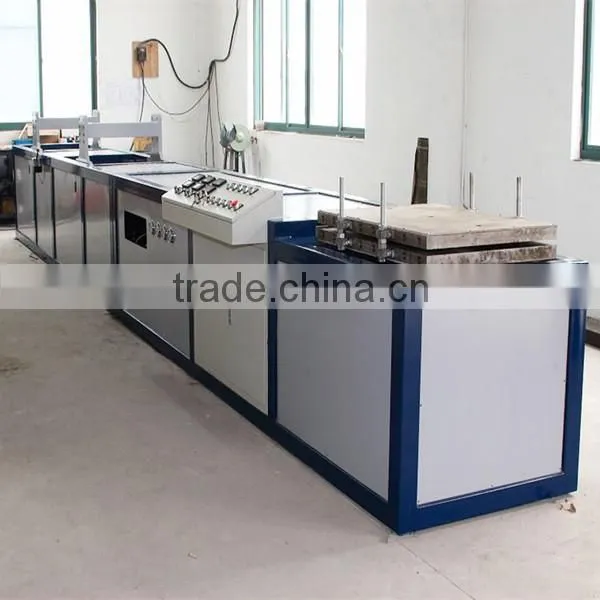

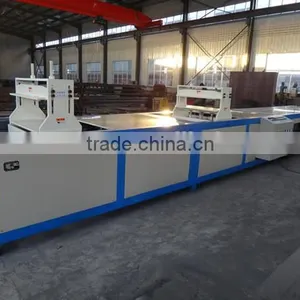

competitive price FRP fiberglass pultrusion machine
12T pultrusion equipment parameters:
1) Drive: hydraulic drive, two sets of independent hydraulic systems
2) the use of Shaanxi Qin Chuanheng hydraulic pressure variable vane pump as a power source,
solenoid valve Beijing, China and Germany, the governor valve using Shanghai Lixin products
3) Motor power: 3.7KW * 2 (Hebei Hengshui)
4) Traction: 6000kg / f
5) Clamping force: 6000kg / f
6) pultrusion speed: 0.1 m -1.5 m / min
7) Heating temperature range :0-400 °C
8) heating zone: 3
9) heating control mode: smart meter solid state relay trigger
10) holding space dimensions: 600mm * 250mm gantry plate width is 250mm
11) clamp from the bottom up clamping
12) maximum hydraulic system pressure: 8MPa; Bore 125mm
13) Equipment Dimensions: 7.95 m * 0.75 m * 1.55 m
14) heating plate size: 850mm * 700mm * 40mm
15) Electric control: the main circuit of Chint products, the control circuit for the PLC, has a speed digital functions.
16) gantry structure: from the bottom up pressure type structure; single gantry maximum stroke 500mm.
17) linear rail mounted dust cover.
1, The whole production line occupe 20-30M at length, 3 meter at width, about 60-100square meter
2,The main machine is steel structure, stainless steel panel, side panle is paint.
3,Traction gantry make ordered according to requestd length.
4,Hydraulic station: weused the latest technology: pump is multi-group pump source (to ensure stability in forward speed.) Hydraulic parts are made of stacked clip (easy maintenance), and the tension and clamping force can make stepless adjustment. Traction speed with precision throttle, to ensure the stability of traction speed, and stepless speed adjustment of the traction. Hydraulic station with switch, so as to control the hydraulic oil heating up and down, so as to ensure the normal operation of the hydraulic system
5,Using function: it have single and double manually operated gantry and double gantry automatic reciprocating running function. Automatic intermittent time can be automatically setted, and the actual production tension can be feedback.by sensor
6, Three-stage temperature control of thermal temperature control device, to achieve automatic control of heating temperature of the mold
the products
