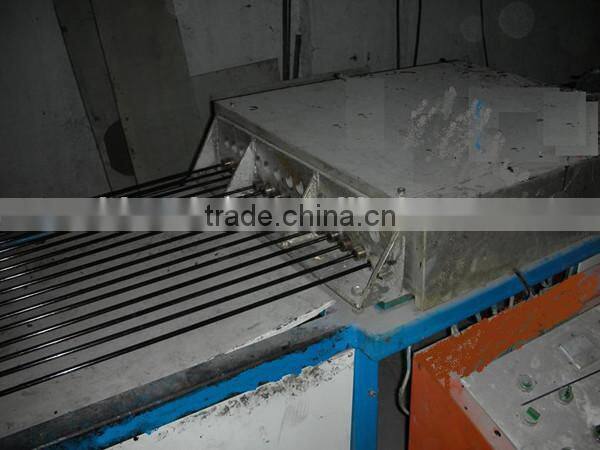

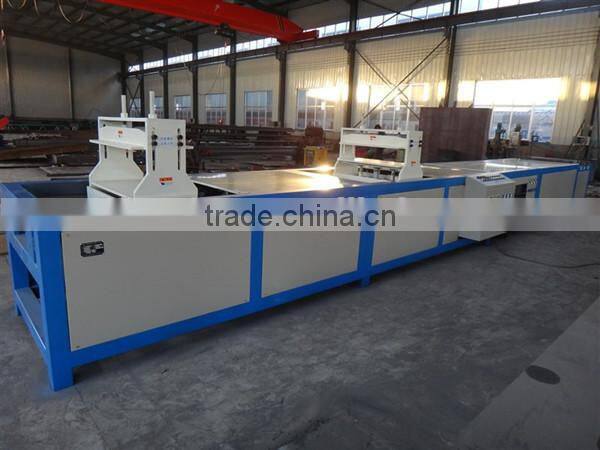

FRP products fiberglass pultrusion machine
12T pultrusion equipment parameters:
1) Drive: hydraulic drive, two sets of independent hydraulic systems
2) the use of Shaanxi Qin Chuanheng hydraulic pressure variable vane pump as a power source,
solenoid valve Beijing, China and Germany, the governor valve using Shanghai Lixin products
3) Motor power: 3.7KW * 2 (Hebei Hengshui)
4) Traction: 6000kg / f
5) Clamping force: 6000kg / f
6) pultrusion speed: 0.1 m -1.5 m / min
7) Heating temperature range :0-400 °C
8) heating zone: 3
9) heating control mode: smart meter solid state relay trigger
10) holding space dimensions: 600mm * 250mm gantry plate width is 250mm
11) clamp from the bottom up clamping
12) maximum hydraulic system pressure: 8MPa; Bore 125mm
13) Equipment Dimensions: 7.95 m * 0.75 m * 1.55 m
14) heating plate size: 850mm * 700mm * 40mm
15) Electric control: the main circuit of Chint products, the control circuit for the PLC, has a speed digital functions.
16) gantry structure: from the bottom up pressure type structure; single gantry maximum stroke 500mm.
17) linear rail mounted dust cover.
25T pultrusion machine:
25T pultrusion machinery | |
Drive mold |
Hydraulic drive |
power |
7.5KW*2 |
pulling force |
20000kg/f |
clamping force |
20000kg/f |
pulling speed range |
0.1m-1m/min |
Heating temperature range |
0-300°C |
Heating zone |
6 places |
Clamping spatial size plate width |
8 50mm*350mm 300mm |
Maximum hydraulic system pressure |
13MPa |
Equipment outer dimensions |
11m*1.15m*1.75m |
Heating plate size |
850mm*900mm*40mm |
1. Any inquires will be replied within 8 working hours.
2. Professional FRP products manufacturer, welcome to visit our website (on-line store) and factory.
3. Customized design is available, OEM and ODM are welcomed.
4. High quality, reasonable & competitive price.
5. Fast lead time,
6. Payment: we usual accept payment by T/T, L/C and western union.
7. We have strong cooperation with forwarder, you also can chose your own shipping forwarder.
8.The product will be sent as soon as possibl
