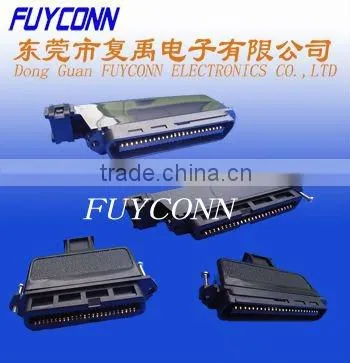

57 SERIES CHAMP IDC CENTRONIC CONNECTOR D-SUB V.35

Specifications

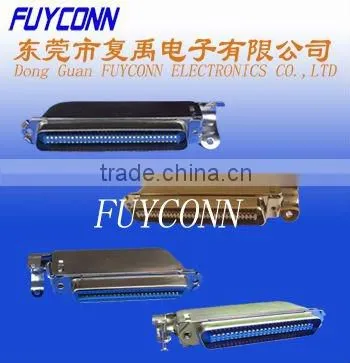

1, CENTRONIC CONNECTOR
2,57 Series Champ Connector
3,UL -94-VO,ROHS Compliant
4, Approved the ISO9001:2008 ISO14001;2004

Welcome to visit our website on alibaba.



Advantage Product

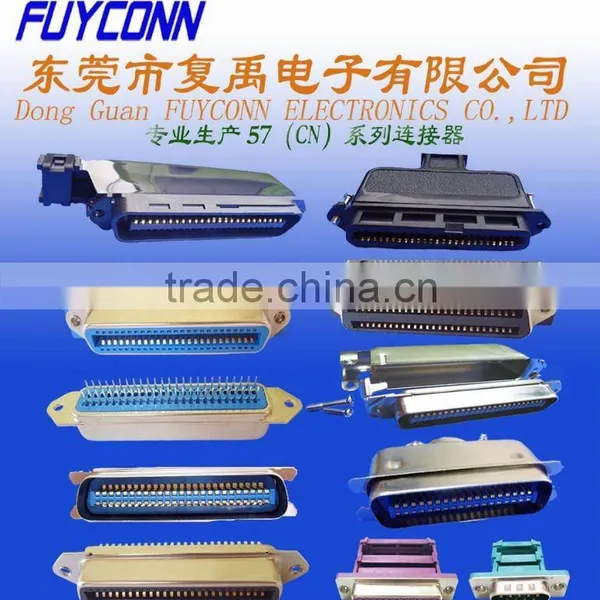

1)57 series Centronic Connector

A:Centronic PCB DIP Right Angel(Straight)Type

B:Centronic PCB DIP Right Angel(Straight)Easy(Classic) Type

C:Centronic PCB Straight SMT(MD)Type

D:Centronic older Type

E:Centronic 90 (180)degree cable exit angel Solder Type

F:Centronic I.D.C 90 (180)degree cable exit angel Type(CHAMP)

G:Centronic I.D.C for Flat Cable Type



Shell	Stainless Stell,Tin Plated(Nickel front & Tin back)
Contact Material	Phosphor Bronze or Brass Gold Plated
Contact Plating	Selective Gold Flash
	(1U”,5U”,10U”,5U”,30U”)
Insulator Material	PBT & Glass-fibre reinforced
	UL-94-VO
Current Rating	5Amp
Voltage rating	DC 1000V per minute
Insulator Resistance	1000Mn MIN.(at 500V DC)
Operation Temperature	-55°C to +105°C

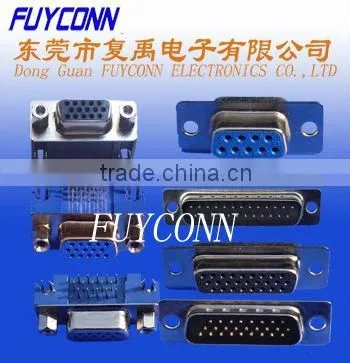

2)D-SUB

A:D-SUB Solder Type

B:D-SUB PCB Straight(Right Angel) Type

C:D-SUB IDC for Flat Cable Type

D:D-SUB Crimp Housing Type

E:D-SUB PCB DIP Straight

F:D-SUB Slim Right Angel SMT Type

3)High Density D-SUB

A:D-SUB High Density Solder Type

B:D-SUB High Density PCB Solder Straight(Right Angel) Type

C:D-SUB High Density Crimp Housing Type

4)V.35

A:V.35 Crimp Housing

B:V.35 Connector PCB Right Angel Type



Shell	Stainless Stell,Tin Plated(Nickel front & Tin back)
Contact Material	Selective Gold Flash
	(1U”,5U”,10U”,5U”,30U”)
Insulator Material	PBT & Glass-fibre reinforced
	UL-94-VO
Rated Voltage	300 V DC
Current Rating	5Amp
Voltage rating	AC 500v per minute
Insulator Resistance	1000Mn MIN.(at 500V DC)
Operation Temperature	-55°C to +105°C

Application

All designed for use in industrial,commercial;

telecommunication systems;VDSL Teleccom Equipment ;

Computer Peripherals;healthcare, aerospace ;

Communication networks,automotive;data communications;

consumer devices

About FUYCONN

DongGuang FUYCONN ELECTRONICS CO.,LTD was found in 2004.In 2008, we experienced a historic of transition .But we are always to persist provide the most cost-effective pricing, on time delivery, and stable quality's products, as well as we have a professional R&D and engineering team to enabling smarter, faster, better technologies to connect products to possibilities.
