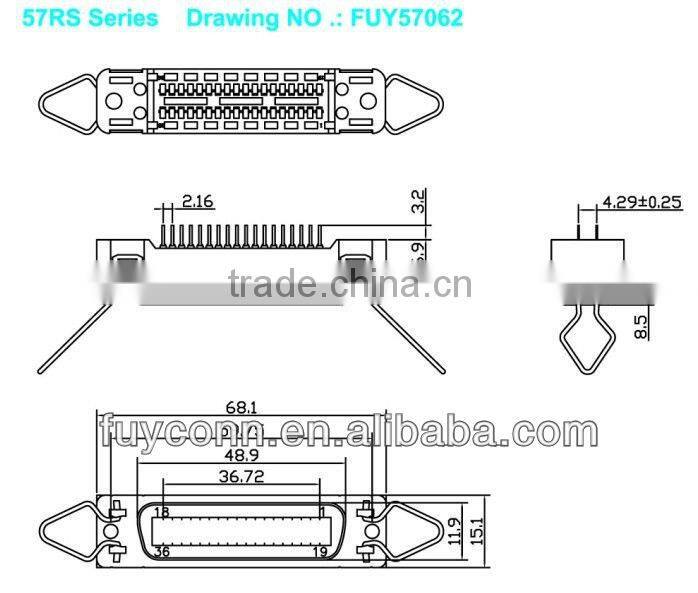

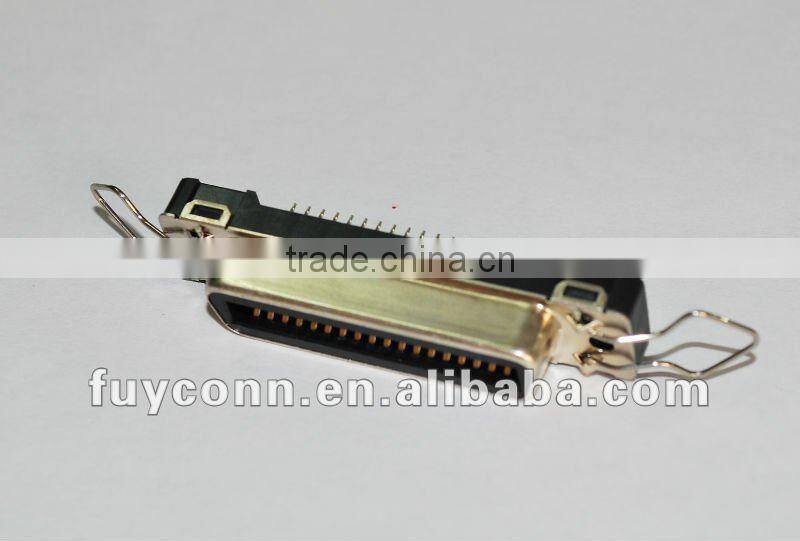

Help CenterCentronics 36 Pin PCB Mounting Parallel Port Printer Connector Female Receptacle Type for Dot Matrix Printer
Related Products
-
TYCO 50 Pin RJ21 Ribbon Cable Champ Solder Pin Centronics Connector Female Type Receptacle Header SocketUS$ 2 - 4MOQ: 1000 Pieces -
57 Series Centronics Connector 50 Pin RJ21 Cable Champ Female Solder Type Receptacle Socket With All Plastic CoverUS$ 2 - 4MOQ: 1000 Pieces
-
57 Series Centronics Solder Type Connector Female Receptacle Header Socket With Hex Head Nuts and Spring LatchesUS$ 1.5 - 3MOQ: 1000 Pieces
-
DDK Ribbon Solder Cup Contacts Female Receptacle Header Socket Centronics Connector Riveting Triangle Plate With Spring LatchesUS$ 1.5 - 3MOQ: 1000 Pieces
-
90 Degree Metal Cover DDK 2.16mm Pitch Champ Solder 50 Pin Header 25 Pair Centronic Connector Male Plug TypeUS$ 1.5 - 3MOQ: 1000 Pieces
Specifications
Item No.: FUY570621,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample
Specifications
1) Product features
1. Product Type: Connector
2. Product Line:CENTRONIC
3. Connector Style: Female
4. Certerline :2.16mm(0.85 in)
5. Number of Position:14,24, 36,50,64 pin
6. Contact Material: Copper Alloy
7. Contact Plating: Gold (A:5u" ,B:10u",C:15u"A:30u'')
8. Comb Material:Thermoplastic
9. UL Flammability Rating: UL-94-V0
10. Shell: Stainless steel,Zinc plated,Tin ploted or Nickel plated steel
11. Orientation:Standard
12. Special Function:(Pan Holes)
A: Screw Lock B:Rivet Insert
C: 4.8mm Hex Screw Lock
D: IEEE488 Hex Screw Lock
2) Electrical Specifications
1. Current Rating: 5Amp
2. Voltage rating: DC 1000v per minute
3. Insulator Resistance: 1000Mn MIN.(at 500V DC)
4. Operation Temperature: -55°C to +105°C
3) Technology Parameters
