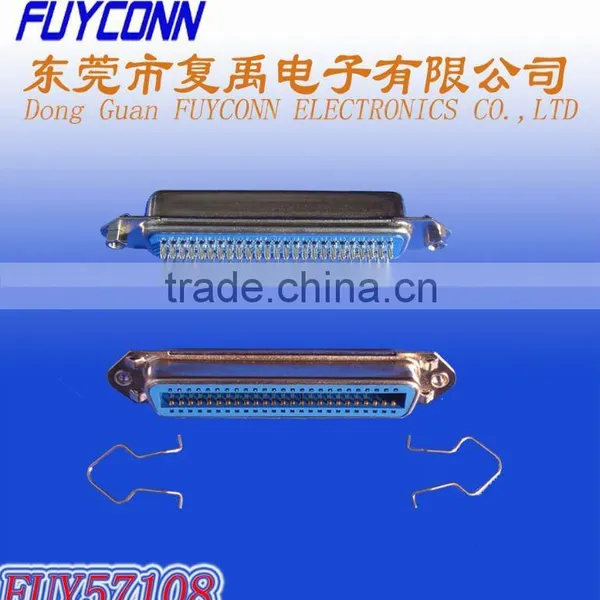

Help Center57 Series Centronics Solder Type Connector Female Receptacle Header Socket With Hex Head Nuts and Spring Latches
Related Products
-
DDK Ribbon Solder Cup Contacts Female Receptacle Header Socket Centronics Connector Riveting Triangle Plate With Spring LatchesUS$ 1.5 - 3MOQ: 1000 Pieces -
90 Degree Metal Cover DDK 2.16mm Pitch Champ Solder 50 Pin Header 25 Pair Centronic Connector Male Plug TypeUS$ 1.5 - 3MOQ: 1000 Pieces
-
DDK 25 Pair Centronics Connector 50 p Male Plug Solder Type Header With Right Angle Metal CoverUS$ 2 - 4MOQ: 1000 Pieces
-
180 Degree Matel Cover DDK Female Receptale Header Centronics Connector Solder Pin Type Socket With Spring LatchUS$ 1 - 2MOQ: 1000 Pieces
-
Right Angle 50 Pin Solder Contacts Centronics Connector 25 Pairs Female Receptacle Type UL ApprovedUS$ 1 - 2MOQ: 1000 Pieces
Specifications
Item No.: FUY571081,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample
Specifications
Product features:
Product Type: Connector

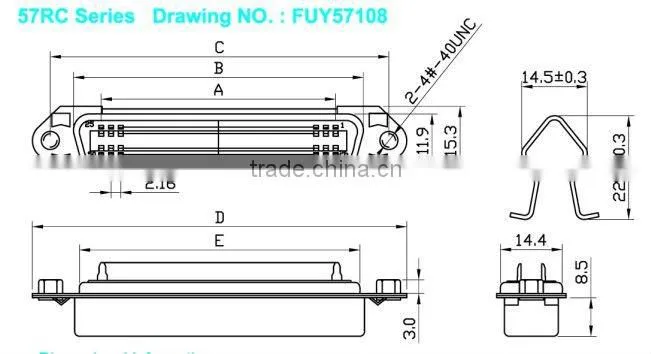

Connector Modul: FUY57108
Product Line:CENTRONIC/CHAMP
Connector Style: Female
Orientation: Standard Orientation
PCB Mount Style: Straight
Mechanical Attachment:
Panel Attachment Style: Revit Insert
Com Material:Thermoplastic
Shield: Stainless Steel
Terminal Related Features:
Solder Tail Contact Plating: Tin
Terminal Related Features:
Certerline :2.16mm(0.85 in)
Number of Position: 14,24,36,50,64 pins
PCB Mount Retention Type: Straight
Contact Plating: Gold (A:5u" ,B10u",C:15u",D:30u")
Contact Material: Copper Alloy
Housing Features:
Connector Style: Socket
Housing Material: Thermoplastic-GF
UL Flammability Rating: UL 94-VO
Special Function
A:90°C Solder Hex Rear Revit Insert(11.7mm) type
B:"Z" Fork Nut (M 3.0mm Through Thread)
C: With Bail Lock
Technical Parameters
Application
VDSL Teleccommunications Industry
Computer termial ,Test Equipment
Computer Peripherals,Telemetering etc.,
