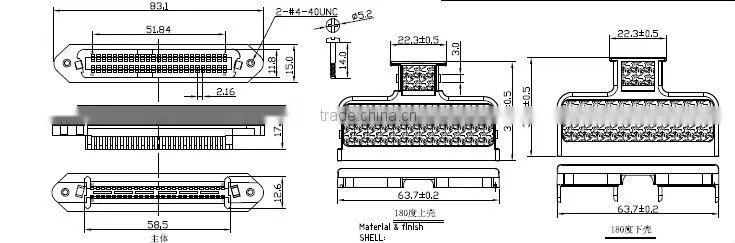

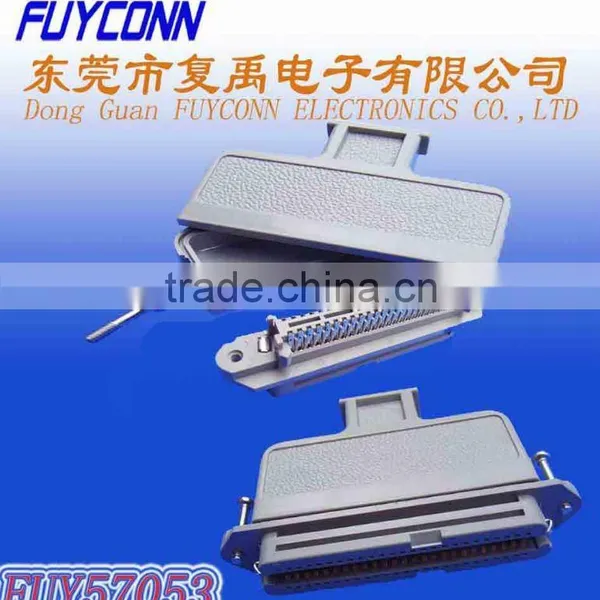

Help Center57 Series Centronics Connector 50 Pin RJ21 Cable Champ Female Solder Type Receptacle Socket With All Plastic Cover
Related Products
-
57 Series Centronics Solder Type Connector Female Receptacle Header Socket With Hex Head Nuts and Spring LatchesUS$ 1.5 - 3MOQ: 1000 Pieces -
DDK Ribbon Solder Cup Contacts Female Receptacle Header Socket Centronics Connector Riveting Triangle Plate With Spring LatchesUS$ 1.5 - 3MOQ: 1000 Pieces
-
90 Degree Metal Cover DDK 2.16mm Pitch Champ Solder 50 Pin Header 25 Pair Centronic Connector Male Plug TypeUS$ 1.5 - 3MOQ: 1000 Pieces
-
DDK 25 Pair Centronics Connector 50 p Male Plug Solder Type Header With Right Angle Metal CoverUS$ 2 - 4MOQ: 1000 Pieces
-
180 Degree Matel Cover DDK Female Receptale Header Centronics Connector Solder Pin Type Socket With Spring LatchUS$ 1 - 2MOQ: 1000 Pieces
Specifications
Item No.: FUY570531,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample
Specifications
Product features:
Model: FUY57053
Connector Classification:Socket
Product Type: Connector
Product Line:CENTRONIC/CHAMP
Connector Style: Female
Cover Type :Straight Cover
Mechanical Attachment:
Com Material:Thermoplastic
Terminal Related Features:
Certerline :2.16mm(0.85 in)
Number of Position: 50 pins
Contact Plating: Gold (A:5u" ,B:10u"C:15u",D:30u")
Contact Material: High Strenght Copper Alloy
Housing Features:
Connector Style: Socket
Housing Material:All Plastics Cover
UL Flammability Rating: UL-94-V0
Finish
Electrical Specifications:
Current Rating: 5Amp
Voltage rating: DC 1000v per minute
Insulator Resistance: 1000Mn MIN.(at 500V DC)
Operation Temperature: -55°C to +105°C
Technical Parameters
Application
VDSL Teleccom Equipment
Computer Peripherals
