Plastic Water Storage Tanks

Plastic Water Storage Tanks thumbnail-1
Plastic Water Storage Tanks photo-1
US$ 25 - 500 MOQ: 100 Sets
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
sinta
Model Number:
ST-WT033
Contact Supplier Request Quote Chat Now
Hebei Sinta FRP Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
TianJin port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name sinta
Model Number ST-WT033

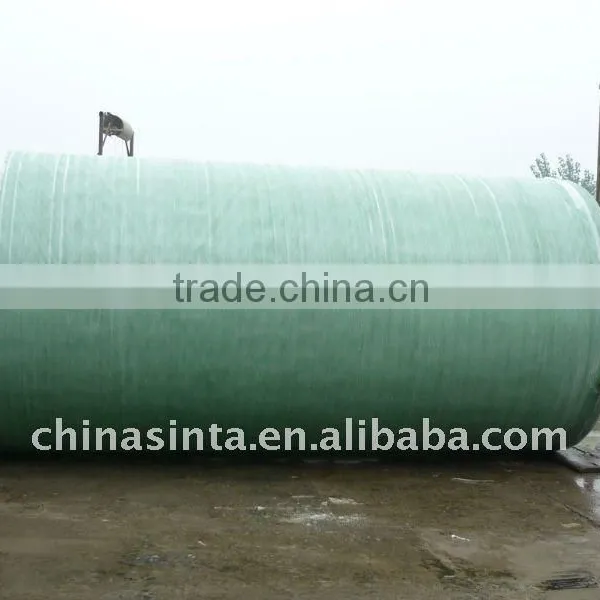

FRP tanks  characteristics:

1. FRP tank is made of the advanced winding technique, with entire shaping internal bladder.

2. Compared with the same models, it has the characteristics of corrosion resisting, good quality, good appearance, convenient transportation installation, good seepage prevention, long using life.

3. Operation pressure is less than 0.6Mpa and operation temperature is less than 49°C.

4. FRP tank has upper and under openings, and flange connections, which can form a complete set with control valves in different kinds of models and brands.

5. FRP tanks have many different Models: 871-96126(upper and under openings and side openings), 2.5', 4', 6', 16', 18' flange.

6. Accessories: upper and under distributor, black cock, multiport valves, central tube, resin, activated carbon and other relative parts



 Technical  parameters:

Model

Upper shed

Under shed

Diameter height

volume m3

Net weight

Suggestion flow

Box packing size

YB-818

2.5" thread

No

200×450

0.02

2.8

0~0.2

232×232×480

YB-1252

2.5" thread

No

300×1300

0.12

10.5

1.6~2.2

332×332×1350

YB-1265

2.5" thread

No

300×1625





2.0~2.5

332×332×1710

YB-1354

2.5" thread

No

325×1350

0.15

12.2

2.0~2.5

350×350×1400

YB-1465

2.5" thread

No

350×1625

0.21

17

2.5~3.0

360×360×1670

YB-1665

2.5"/4"thread

No

400×1625

0.27

19

3.2~4.5

420×420×1700

YB-1865

4"thread

No

460×1625

0.33

23

4.5~5.0

480×480×1750

YB-2162

4"thread

No

525×1500(top equipped)

0.474

31

4.5~6.0



YB-2162

4"thread

4"thread

525×1500(side equipped)

0.474

31

4.5~6.0



YB-2472

4"thread

4"thread

600×1800

0.713

46

6.2~8.2



YB-3072

4"thread

4"thread

750×1800

1.13

64

7.2~12.2



YB-3672

4"thread

4"thread

900×1800

1.64

88

13.2~16.2



YB-4272

6"flange

6"flange

1050×1800

2.39

125

17.0~23.0



YB-4872

6"flange

6"flange

1200×1800

3.1

157

22.0~27.0



YB-4896

6"flange

6"flange

1200×2400

3.5

180

28.0~38.0



YB-6096

6"flange

6"flange

1500×2400

5.4

360

38.0~55.0



YB-7296

6"flange

6"flange

1800×2400

7.78

500

55.0~80.0



YB-8096

6"flange

6"flange

2000×2400

9.6

510

80.0~100.0
