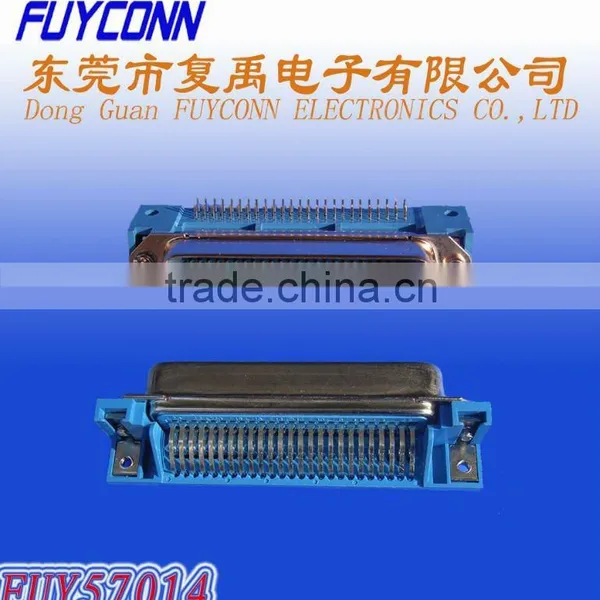

Help CenterDDK DIP Type PCB Mount Right Angle Telecom System Connector Male Plug Type
Related Products
-
DDK Female Receptacle DIP Type Socket Centronics Connector PCB Right Angle CertifiedUS$ 1 - 2MOQ: 1000 Pieces -
57 Series Telecom System Centronics Connector PCB DIP Right Angle Male Type Certified ULE 346172US$ 1 - 2MOQ: 1000 Pieces
-
Amphenol 957 2.16mm Pitch Champ IDC Type Side Cable Exit 100 Pin Connector PlugUS$ 5 - 8MOQ: 1000 Pieces
-
57 Series Centronics 64 Pin Right Angle Type Female Socket 32 Pairs Connector PCB MountingUS$ 1 - 2MOQ: 1000 Pieces
-
14 Pin 24 Pin 36 Pin 50 Pin and 64 Pin Configurations Combo Connector Female Type PCB Mount Right AngleUS$ 1 - 2MOQ: 1000 Pieces
Specifications
Item No.: FUY570141,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample
Specifications
1) Product features
1. Product Type: Connector
2. Product Line:CENTRONIC
3. Connector Style: male
4. Certerline :2.16mm(0.85 in)
5. Number of Position:14,24, 36,50,64 pin
6. Contact Material: Copper Alloy
7. Contact Plating: Gold (A:5u" ,B:10u",C:15u"A:30u'')
8. Comb Material:Thermoplastic
9. UL Flammability Rating: UL-94-V0
10. Shell: Stainless steel,Zinc plated,Tin ploted or Nickel plated steel
11. Orientation:Standard
12. Special Function:
A: Screw Lock B:Rivet Insert
C: 4.8mm Hex Screw Lock
D: IEEE488 Hex Screw Lock
2) Electrical Specifications
1. Current Rating: 5Amp
2. Voltage rating: DC 1000v per minute
3. Insulator Resistance: 1000Mn MIN.(at 500V DC)
4. Operation Temperature: -55°C to +105°C
3) Order Information
Remark : 1. This is general information for each of order.
2. Plz reference to filling out this form before inquiry.
3. We will feedback the latest information to you on time.
4. We are look forwar to long term business cooperation with you.
4)Application
| 1, VDSL Telecom Equipment | |
| 2, Computer Peripherals | |
| 3, Communication Equipment | |
| 4, PCB Board | |
| 5, Cable to Panel | |
| 6, Cable to cable | |
| 7,Computer terminal | |
| 8,Telemetering | |
| 9,Test Equipment | |
| 10, Printer |
5) Technology Parameters
