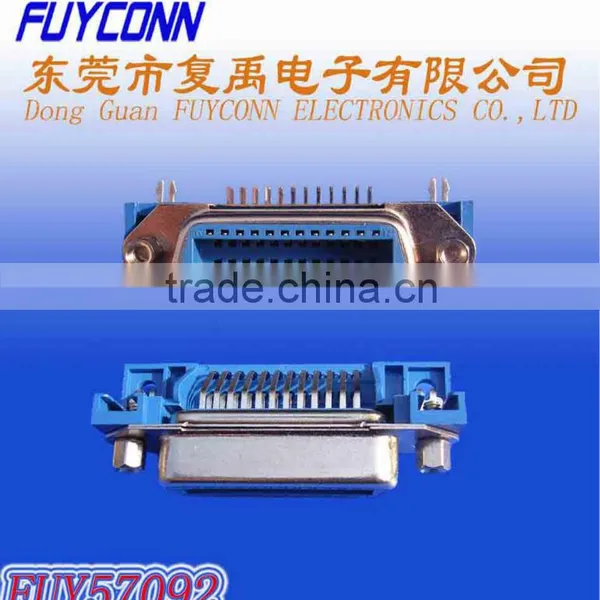

Help CenterCentronics Champ Female PCB Mouting Right Angle Header Connector 2.16mm Pitch
Related Products
-
57 Series PCB Mouting 90 Degree Male Centronics Connector Plug DIP TypeUS$ 1 - 2MOQ: 1000 Pieces -
57RR Centronics Connector PCB 90 Degree Male Plug TypeUS$ 1 - 2MOQ: 1000 Pieces
-
Centronics Right Angle DIP Solder Termination Connector PCB 90 Degree Male PlugUS$ 1 - 2MOQ: 1000 Pieces
-
DDK DIP Type PCB Mount Right Angle Telecom System Connector Male Plug TypeUS$ 1 - 2MOQ: 1000 Pieces
-
DDK Female Receptacle DIP Type Socket Centronics Connector PCB Right Angle CertifiedUS$ 1 - 2MOQ: 1000 Pieces
Specifications
Item No.: FUY570921,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample
Specifications
Product features
Product Type: Connector
Connector Model: FUY57092
Product Line:CENTRONIC/CHAMP
Connector Style: Female
Orientation:Standard Orientation
Shell: Stainless steel,Zinc plated,Tin ploted or Nickel plated steel
PCB Mount Style: Right Angle
Mechanical Attachment
Panel Attachment Style:Screw Lock
Core Material:Thermoplastic
Terminal Related Features

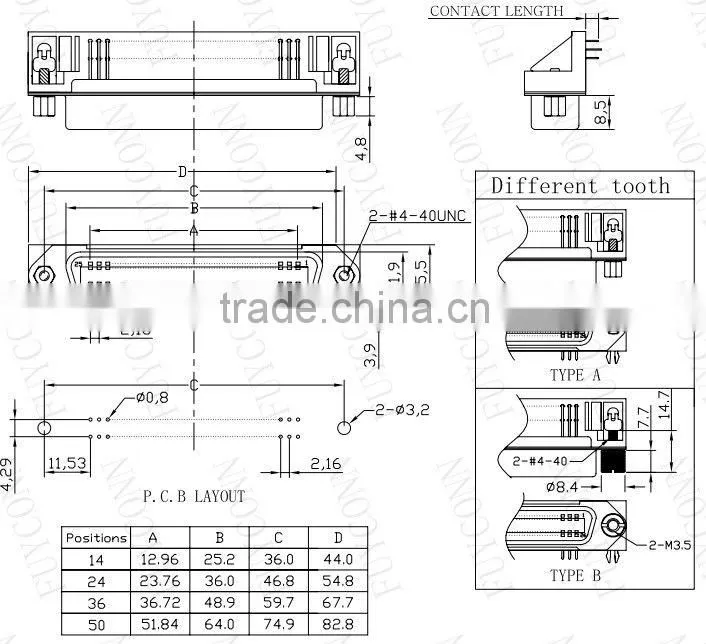

Certerline :2.16mm(0.85 in)
Number of Position:24 pins
PCB Mount Retention Type: Right Angel
Contact Plating: Gold (A:5u" ,B10u",C:15u",D:30u")
Contact Material: Copper Alloy
Housing Features
Connector Style:Receptacle
Housing Material: Thermoplastic
UL Flammability Rating: UL 94-V0
Special Function
A:90°C DIP Pan Head Hex Screw (11.8*4.8)
B:Screw Lock
C:3.9mm"Z" Fork Board Lock (Both with #4-40 UNC Thread)
Finish
Electrical Specifications:
Current Rating: 5Amp
Voltage rating: DC 1000v per minute
Insulator Resistance: 1000Mn MIN.(at 500V DC)
Operation Temperature: -55°C to +105°C
Application
| 1, VDSL Telecom Equipment | |
| 2, Computer Peripherals | |
| 3, Communication Equipment | |
| 4, PCB Board | |
| 5, Cable to Panel | |
| 6, Cable to cable | |
| 7,Computer terminal | |
| 8,Telemetering | |
| 9,Test Equipment | |
| 10, Printer |
Technology Parameters
