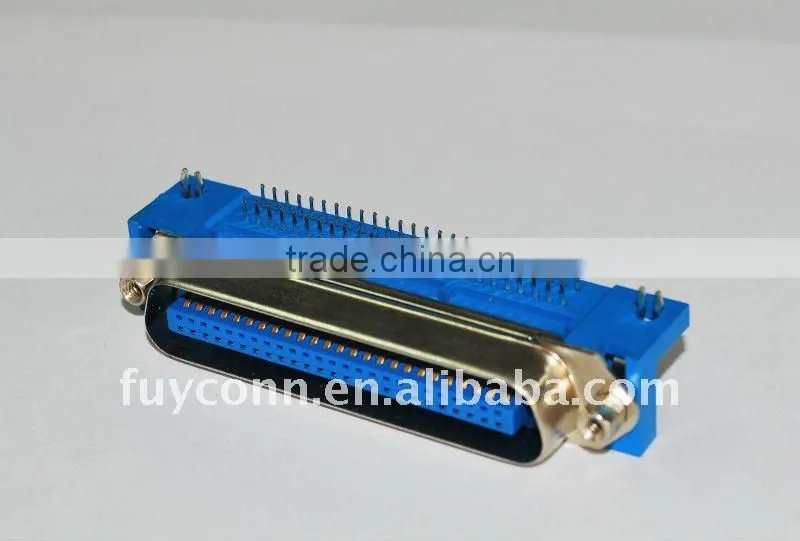

Help Center57 Series PCB Mouting 90 Degree Male Centronics Connector Plug DIP Type
Related Products
-
57RR Centronics Connector PCB 90 Degree Male Plug TypeUS$ 1 - 2MOQ: 1000 Pieces -
Centronics Right Angle DIP Solder Termination Connector PCB 90 Degree Male PlugUS$ 1 - 2MOQ: 1000 Pieces
-
DDK DIP Type PCB Mount Right Angle Telecom System Connector Male Plug TypeUS$ 1 - 2MOQ: 1000 Pieces
-
DDK Female Receptacle DIP Type Socket Centronics Connector PCB Right Angle CertifiedUS$ 1 - 2MOQ: 1000 Pieces
-
57 Series Telecom System Centronics Connector PCB DIP Right Angle Male Type Certified ULE 346172US$ 1 - 2MOQ: 1000 Pieces
Specifications

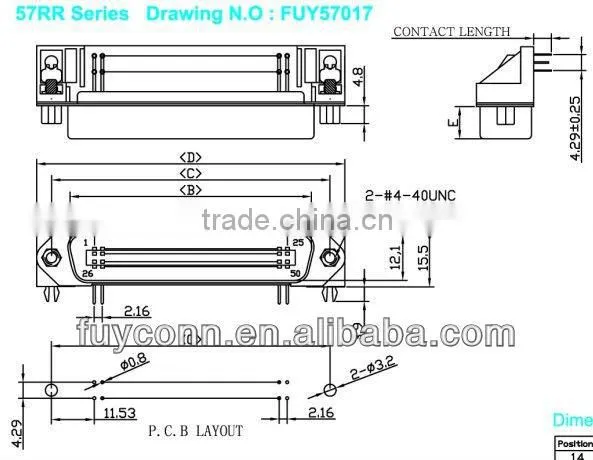

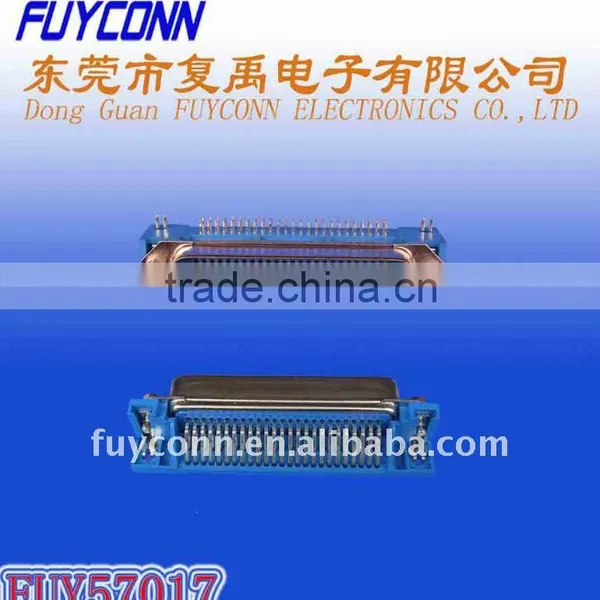

Item No.: FUY570171,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample
Specifications
Product features
Product Type: Connector
Product Line:CENTRONIC
Connector Style: Female
Shell: Stainless steel,Zinc plated,Tin ploted or Nickel plated steel
PCB Mount Style: Right Angle
Orientation:Standard
Mechanical Attachment
Panel Attachment Style:Rear to Rivet
Insulator Material:Thermoplastic
Terminal Related Features
Certerline :2.16mm(0.85 in)
Number of Position: 14,24,36,50,64 pin
PCB Mount Retention Type: Right Angle
Contact Plating: Gold (A:5u" ,B10u",C:15u",D:30u")
Contact Material: Copper Alloy
Housing Features
Connector Style: Receptacle
Housing Material: Steel
UL Flammability Rating: UL 94V-O
Special Function
A:90°C DIP pan holes type
B:Pan holes,riveting
C:“Z”Fork Board Lock
Finish
Electrical Specifications:
Current Rating: 5Amp
Voltage rating: DC 1000v per minute
Insulator Resistance: 1000Mn MIN.(at 500V DC)
Operation Temperature: -55°C to +105°C
Application
| 1, VDSL Telecom Equipment | |
| 2, Computer Peripherals | |
| 3, Communication Equipment | |
| 4, PCB Board | |
| 5, Cable to Panel | |
| 6, Cable to cable | |
| 7,Computer terminal | |
| 8,Telemetering | |
| 9,Test Equipment | |
| 10, Printer |
