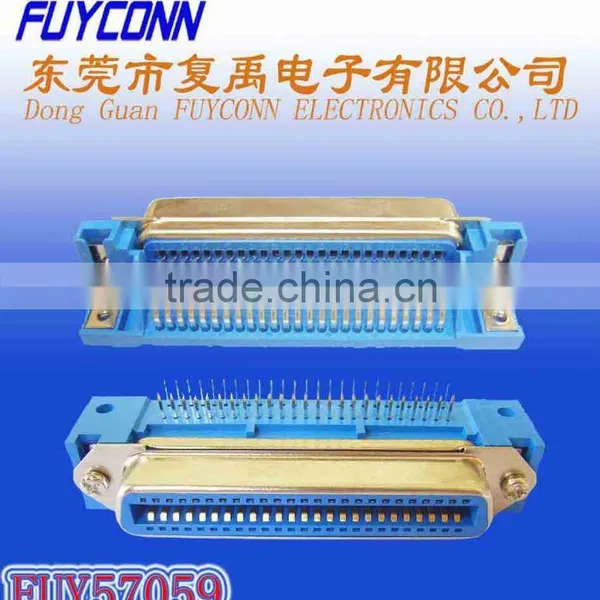

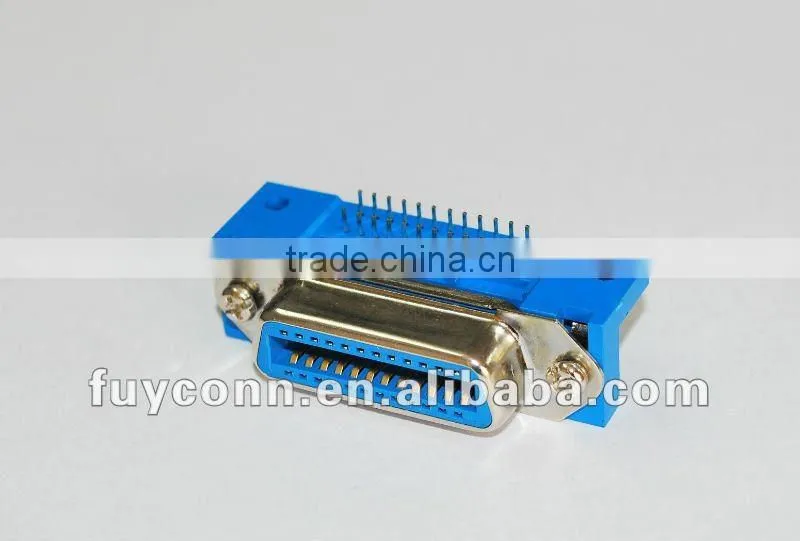

TYCO 50 Pin Centronic PCB DIP Right Angle Type Connector Female

Specifications

CENTRONIC PCB CONNECTOR
Rack and Panel Assembly
90 DEG Cable Exit Angle
Solid Copper Conductor
Compliance:ROHS

Specifications

1) Product features

1. Product Type: Connector

2. Product Line:CENTRONIC

3. Connector Style: Female

4. Certerline :2.16mm(0.85 in)

5. Number of Position:14,24, 36,50,64 pin

6. Contact Material: Copper Alloy

7. Contact Plating: Gold (A:5u" ,B:10u",C:15u"A:30u'')

8. Comb Material:Thermoplastic

9. UL Flammability Rating: UL-94-V0

10. Shell: Stainless steel,Zinc plated,Tin ploted or Nickel plated steel

11. Orientation:Standard

12. Special Function:(Pan Holes)

  A: Screw Lock  B:Rivet Insert

  C: 4.8mm Hex Screw Lock

  D: IEEE488 Hex Screw Lock



2) Electrical Specifications

1. Current Rating: 5Amp
2. Voltage rating: DC 1000v per minute
3. Insulator Resistance: 1000Mn MIN.(at 500V DC)
4. Operation Temperature: -55°C to +105°C



3) Order Information

Remark : 1. This is general information for each of order.

                2. Plz reference to filling out this form before inquiry.

                3. We will feedback the latest information to you on time.

                4. We are look forwar to long term business cooperation with you.
