Sinta half circle galvanized corrugated steel pipe for sale
The main application of corrugated steel pipe:
1. Road, railway, hidden trench for waterways, tunnels, culverts, animal channels, and filter wells.
2. For the load-bearing structure for bridge.
3. Down-flow pipes, rainwater pipes, sewage pipes for the city.
4. Underground pipelines.
5. Reinforcement and reconstruction for tunnels, bridges, culverts.
Four types of the corrugated steel pipes as below:
| Items |
Annular flanged corrugated metal pipe |
The spiral corrugated steel pipe |
The nestable corrugated steel pipe |
structure plate corrugated steel pipe |
| Material | SS400 or Q235 | JIS G3302 SGHC | Q235 | SS400 or Q235 |
| Thickness | 3.0mm-5.0mm | 1.6-4.2mm | 1.6-4.5mm | 2.0-10.0mm |
|
Diameter (span) |
500-2500mm | 300-3600mm | 500-2800mm | 2000mm-16000mm |
| corrugation |
125mm×25mm 150mm×50mm 200mm×55mm |
68mm×13mm 76mm×25mm 125mm×25mm |
68mm×13mm 76mm×25mm |
150mm×50mm 200mm×55mm 400mm×150mm |
| Lifetime | >75years | >75years | >75years | >75years |
|
Anticorrosion treatment |
Hot dip galvanized≥63 µm 2nd anticorrosive |
hot dip galvanized≥63 µm 2nd anticorrosive |
hot dip galvanized≥63 µm 2nd anticorrosive |
hot dip galvanized≥63 µm 2nd anticorrosive |
Advantage of our products1.Our protucts has both rigid and flexible ;stucforce structure is reasonable force, load distribution ,has a certain resistance to deformation
2.The use of standardized designs,factory-scale production ;short production cycle.high s reduce costs and improve quslity .
3.on-site installation of speed ,short construction period ,social economic benifit.
4.year-round nstruction not subject to seasonal effects.not environmental impact.
5.can effectively solve the freezing cold north area of concrete bridges and culverts due to repeated failure problems.
6.especially for loading soil ,expansive soil, loess and other special areas, to aviod distortion caused by uneven ground settlement of the culvert damage.
uction of cement. sand,gravel and other conventional buildingmaterialsused.environmentally significant
pared with concrete bridges and culverts,the same span of the corrugated steel bridge and lower total cost .

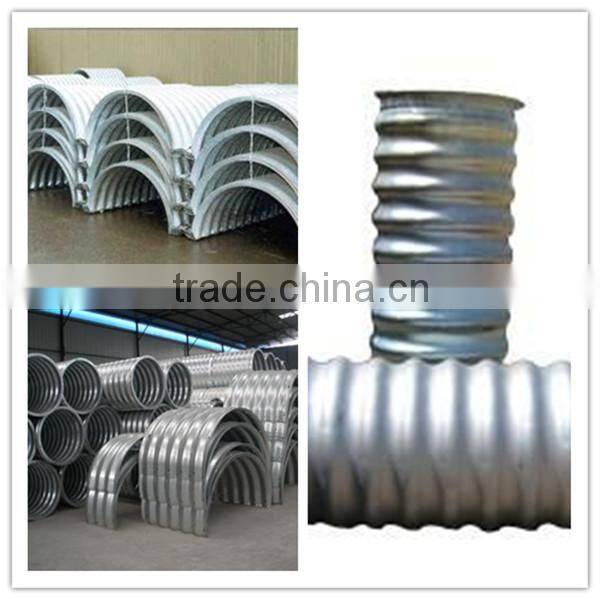

9.a small post maintenance work,maintenance and low cost.,More pictires about the corrugated steel pipe
1. Any inquires will be replied within 8 working hours.
2. Professional FRP products manufacturer, welcome to visit our website (on-line store) and factory.
3. Customized design is available, OEM and ODM are welcomed.
4. High quality, reasonable & competitive price.
5. Payment: we usual accept payment by T/T, L/C and western union.
6. We have strong cooperation with forwarder, you also can chose your own shipping forwarder.
7.The product will be sent as soon as possible
the cases
