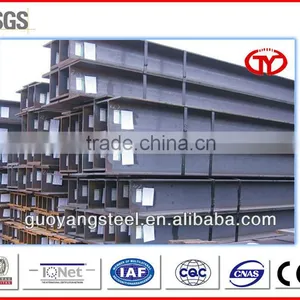

High-frequency Welding H-beam

High-frequency Welding H-beam thumbnail-1
High-frequency Welding H-beam photo-1
US$ 580 - 680 MOQ: 20 Metric Tons
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Grade:
Q235
Technique:
Welded
Contact Supplier Request Quote Chat Now
Qinhuangdao Guoyang Steel Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
anyport
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Grade Q235
Technique Welded
Thickness 8-35mm
Application the plant, high-rise building construction, the bridge, ship
Length 6-12m
Standard ASTM
Flange Width 100-900mm
Web Width 100-300mm
Web Thickness 8-35mm
Brand Name GUOYANG
Model Number H-beam

Specifications

Material:Q195,Q235,Q275,Q345
Web Width (H): 100-900mm
Flange Width (B): 100-300mm
Web Thickness (t1): 6-21mm
Flange Thicknes

No H (mm) B  (mm) T/ web (mm) t/ flange (mm) KG/M
1 100 50 2.3 3.2 4.20
2 100 50 3.2 4.5 5.82
3 100 100 4.5 6 12.53
4 100 100 6 8 16.52
5 120 120 3.2 4.5 11.27
6 120 120 4.5 6 15.12
7 150 75 3.2 4.5 8.84
8 150 75 4.5 6 11.94
9 150 100 3.2 4.5 10.61
10 150 100 3.2 6 12.89
11 150 100 4.5 6 14.29
12 150 150 3.2 6 17.60
13 150 150 4.5 6 19.00
14 150 150 6 8 25.15
15 200 100 3 3 9.28
16 200 100 3.2 4.5 11.86
17 200 100 3.2 6 14.14
18 200 100 4.5 6 16.06
19 200 100 6 8 21.23
20 200 150 3.2 4.5 15.40
21 200 150 3.2 6 18.85
22 200 150 4.5 6 20.77
23 200 150 6 8 27.51
24 200 200 6 8 33.79
25 250 125 3 3 11.63
26 250 125 3.2 4.5 14.89
27 250 125 3.2 6 17.75
28 250 125 4.5 6 20.18
29 250 125 4.5 8 23.97
30 250 125 6 8 26.72
31 250 150 3.2 4.5 16.65
32 250 150 3.2 6 20.11
33 250 150 4.5 6 22.54
34 250 150 4.5 8 27.11
35 250 150 4.5 9 29.39
36 250 150 6 8 29.86
37 250 150 6 9 32.12
38 250 200 4.5 8 33.39
39 250 200 4.5 9 36.46
40 250 200 4.5 10 39.52
41 250 200 6 8 36.14
42 250 200 6 9 39.19
43 250 200 6 10 42.23
44 250 250 4.5 8 39.67
45 250 250 4.5 9 43.52
46 250 250 4.5 10 47.37
47 250 250 6 8 42.42
48 250 250 6 9 46.25
49 250 250 6 10 50.08
50 300 150 3.2 4.5 17.91
51 300 150 3.2 6 21.36
52 300 150 4.5 6 24.30
53 300 150 4.5 8 28.87
54 300 150 4.5 9 31.16
55 300 150 4.5 10 33.44
56 300 150 6 8 32.22
57 300 150 6 9 34.48
58 300 150 6 10 36.74
59 300 200 4.5 8 35.15
60 300 200 4.5 9 38.22
61 300 200 4.5 10 41.29
62 300 200 6 8 38.50
63 300 200 6 9 41.54
64 300 200 6 10 44.59
65 300 250 4.5 8 41.43
66 300 250 4.5 9 45.29
67 300 250 4.5 10 49.14
68 300 250 6 8 44.78
69 300 250 6 9 48.61
70 300 250 6 10 52.44
71 350 150 3.2 4.5 19.16
72 350 150 3.2 6 22.62
73 350 150 4.5 6 26.07
74 350 150 4.5 8 30.64
75 350 150 4.5 9 32.92
76 350 150 4.5 10 35.21
77 350 150 6 8 34.57
78 350 150 6 9 36.83
79 350 150 6 10 39.09
80 350 175 4.5 6 28.42
81 350 175 4.5 8 33.78
82 350 175 4.5 9 36.46
83 350 175 4.5 10 39.13
84 350 175 6 8 37.71
85 350 175 6 9 40.36
86 350 175 6 10 43.02
87 350 200 4.5 8 36.92
88 350 200 4.5 9 39.99
89 350 200 4.5 10 43.06
90 350 200 6 8 40.85
91 350 200 6 9 43.90
92 350 200 6 10 46.94
93 350 250 4.5 8 43.20
94 350 250 4.5 9 47.05
95 350 250 4.5 10 50.91
96 350 250 6 8 47.13
97 350 250 6 9 50.96
98 350 250 6 10 54.79
99 400 150 4.5 8 32.40
100 400 150 4.5 9 34.69
101 400 150 4.5 10 36.97
102 400 150 6 8 36.93
103 400 150 6 9 39.19
104 400 150 6 10 41.45
105 400 200 4.5 8 38.68
106 400 200 4.5 9 41.75
107 400 200 4.5 10 44.82
108 400 200 6 8 43.21
109 400 200 6 9 46.25
110 400 200 6 10 49.30
111 400 250 4.5 8 44.96
112 400 250 4.5 9 48.82
113 400 250 4.5 10 52.67
114 400 250 6 8 49.49
115 400 250 6 9 53.32
116 400 250 6 10 57.15
117 450 200 4.5 8 40.45
118 450 200 4.5 9 43.52
119 450 200 4.5 10 46.59
120 450 200 6 8 45.56
121 450 200 6 9 48.61
122 450 200 6 10 51.65
123 450 250 4.5 8 46.73
124 450 250 4.5 9 50.59
125 450 250 4.5 10 54.44
126 450 250 6 8 51.84
127 450 250 6 9 55.67
128 450 250 6 10 59.50
129 500 200 4.5 8 42.22
130 500 200 4.5 9 45.29
131 500 200 4.5 10 48.36
132 500 200 6 8 47.92
133 500 200 6 9 50.96
134 500 200 6 10 54.01
135 500 250 4.5 8 48.50
136 500 250 4.5 9 52.35
137 500 250 4.5 10 56.21
138 500 250 6 8 54.20
139 500 250 6 9 58.03
140 500 250 6 10 61.86
141 500 250 8 10 69.39
142 500 250 8 12 76.99
143 550 200 6 8 50.27
144 550 200 6 10 56.36
145 550 200 6 12 62.45
146 550 200 8 10 64.68
147 550 200 8 12 70.71
148 550 200 8 14 76.74
149 550 200 10 12 78.97
150 550 200 10 14 84.94
151 550 200 12 14 93.13
152 550 250 6 8 56.55
153 550 250 6 10 64.21
154 550 250 6 12 71.87
155 550 250 8 10 72.53
156 550 250 8 12 80.13
157 550 250 8 14 87.73
158 550 250 10 12 88.39
159 550 250 10 14 95.93
160 550 250 12 14 104.12
161 550 300 6 8 62.83
162 550 300 6 10 72.06
163 550 300 6 12 81.29
164 550 300 8 10 80.38
165 550 300 8 12 89.55
166 550 300 8 14 98.72
167 550 300 10 12 97.81
168 550 300 10 14 106.92
169 550 300 12 14 115.11
170 550 350 6 8 69.11
171 550 350 6 10 79.91
172 550 350 6 12 90.71
173 550 350 8 10 88.23
174 550 350 8 12 98.97
175 550 350 8 14 109.71
176 550 350 10 12 107.23
177 550 350 10 14 117.91
178 550 350 12 14 126.10
179 600 200 6 8 52.63
180 600 200 6 10 58.72
