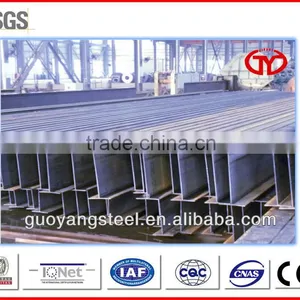

High-frequency welding steel
USD $580 - $680
/ Metric Ton
20 Metric Tons(Min.Order)
- 100000 Ton / Tons per Month
- anyport
- T/T D/P D/A
You May Like
- H-shaped steel bridge steel columns hot-rolled galvanized Q235B Q355B steel structure
- Steel H-Beams fromChinese rigid material H-beam I-beam
- Steel H-Beams fromChinese rigid material H-beam I-beam
- Good Quality Steel Channel C Channel Standard Sizes Supplied for All C U Z Shape Steel Channel Profile Price
- Standard Hot Rolled H-Beams Hot Rolled cold formed steel profile steel C U Z Shape Steel Channel Profile Price
- High Performance mild steel w40 Astm Hot Rolling Carbon Steel H Shape Steel Beam 150x100 h beam
Product Details
Place of Origin: | Hebei, China | Grade: | Q235 | Technique: | Welded |
Thickness: | 8-35mm | Application: | the plant, high-rise building construction, the bridge, ship | Length: | 6-12m |
Standard: | ASTM | Flange Width: | 100-900mm | Web Width: | 100-300mm |
Web Thickness: | 8-35mm | Brand Name: | GUOYANG | Model Number: | H-beam |
Product Description
Specifications
Material:Q195,Q235,Q275,Q345Web Width (H): 100-900mm
Flange Width (B): 100-300mm
Web Thickness (t1): 6-21mm
Flange Thicknes
No | H (mm) | B (mm) | T/ web (mm) | t/ flange (mm) | KG/M |
1 | 100 | 50 | 2.3 | 3.2 | 4.20 |
2 | 100 | 50 | 3.2 | 4.5 | 5.82 |
3 | 100 | 100 | 4.5 | 6 | 12.53 |
4 | 100 | 100 | 6 | 8 | 16.52 |
5 | 120 | 120 | 3.2 | 4.5 | 11.27 |
6 | 120 | 120 | 4.5 | 6 | 15.12 |
7 | 150 | 75 | 3.2 | 4.5 | 8.84 |
8 | 150 | 75 | 4.5 | 6 | 11.94 |
9 | 150 | 100 | 3.2 | 4.5 | 10.61 |
10 | 150 | 100 | 3.2 | 6 | 12.89 |
11 | 150 | 100 | 4.5 | 6 | 14.29 |
12 | 150 | 150 | 3.2 | 6 | 17.60 |
13 | 150 | 150 | 4.5 | 6 | 19.00 |
14 | 150 | 150 | 6 | 8 | 25.15 |
15 | 200 | 100 | 3 | 3 | 9.28 |
16 | 200 | 100 | 3.2 | 4.5 | 11.86 |
17 | 200 | 100 | 3.2 | 6 | 14.14 |
18 | 200 | 100 | 4.5 | 6 | 16.06 |
19 | 200 | 100 | 6 | 8 | 21.23 |
20 | 200 | 150 | 3.2 | 4.5 | 15.40 |
21 | 200 | 150 | 3.2 | 6 | 18.85 |
22 | 200 | 150 | 4.5 | 6 | 20.77 |
23 | 200 | 150 | 6 | 8 | 27.51 |
24 | 200 | 200 | 6 | 8 | 33.79 |
25 | 250 | 125 | 3 | 3 | 11.63 |
26 | 250 | 125 | 3.2 | 4.5 | 14.89 |
27 | 250 | 125 | 3.2 | 6 | 17.75 |
28 | 250 | 125 | 4.5 | 6 | 20.18 |
29 | 250 | 125 | 4.5 | 8 | 23.97 |
30 | 250 | 125 | 6 | 8 | 26.72 |
31 | 250 | 150 | 3.2 | 4.5 | 16.65 |
32 | 250 | 150 | 3.2 | 6 | 20.11 |
33 | 250 | 150 | 4.5 | 6 | 22.54 |
34 | 250 | 150 | 4.5 | 8 | 27.11 |
35 | 250 | 150 | 4.5 | 9 | 29.39 |
36 | 250 | 150 | 6 | 8 | 29.86 |
37 | 250 | 150 | 6 | 9 | 32.12 |
38 | 250 | 200 | 4.5 | 8 | 33.39 |
39 | 250 | 200 | 4.5 | 9 | 36.46 |
40 | 250 | 200 | 4.5 | 10 | 39.52 |
41 | 250 | 200 | 6 | 8 | 36.14 |
42 | 250 | 200 | 6 | 9 | 39.19 |
43 | 250 | 200 | 6 | 10 | 42.23 |
44 | 250 | 250 | 4.5 | 8 | 39.67 |
45 | 250 | 250 | 4.5 | 9 | 43.52 |
46 | 250 | 250 | 4.5 | 10 | 47.37 |
47 | 250 | 250 | 6 | 8 | 42.42 |
48 | 250 | 250 | 6 | 9 | 46.25 |
49 | 250 | 250 | 6 | 10 | 50.08 |
50 | 300 | 150 | 3.2 | 4.5 | 17.91 |
51 | 300 | 150 | 3.2 | 6 | 21.36 |
52 | 300 | 150 | 4.5 | 6 | 24.30 |
53 | 300 | 150 | 4.5 | 8 | 28.87 |
54 | 300 | 150 | 4.5 | 9 | 31.16 |
55 | 300 | 150 | 4.5 | 10 | 33.44 |
56 | 300 | 150 | 6 | 8 | 32.22 |
57 | 300 | 150 | 6 | 9 | 34.48 |
58 | 300 | 150 | 6 | 10 | 36.74 |
59 | 300 | 200 | 4.5 | 8 | 35.15 |
60 | 300 | 200 | 4.5 | 9 | 38.22 |
61 | 300 | 200 | 4.5 | 10 | 41.29 |
62 | 300 | 200 | 6 | 8 | 38.50 |
63 | 300 | 200 | 6 | 9 | 41.54 |
64 | 300 | 200 | 6 | 10 | 44.59 |
65 | 300 | 250 | 4.5 | 8 | 41.43 |
66 | 300 | 250 | 4.5 | 9 | 45.29 |
67 | 300 | 250 | 4.5 | 10 | 49.14 |
68 | 300 | 250 | 6 | 8 | 44.78 |
69 | 300 | 250 | 6 | 9 | 48.61 |
70 | 300 | 250 | 6 | 10 | 52.44 |
71 | 350 | 150 | 3.2 | 4.5 | 19.16 |
72 | 350 | 150 | 3.2 | 6 | 22.62 |
73 | 350 | 150 | 4.5 | 6 | 26.07 |
74 | 350 | 150 | 4.5 | 8 | 30.64 |
75 | 350 | 150 | 4.5 | 9 | 32.92 |
76 | 350 | 150 | 4.5 | 10 | 35.21 |
77 | 350 | 150 | 6 | 8 | 34.57 |
78 | 350 | 150 | 6 | 9 | 36.83 |
79 | 350 | 150 | 6 | 10 | 39.09 |
80 | 350 | 175 | 4.5 | 6 | 28.42 |
81 | 350 | 175 | 4.5 | 8 | 33.78 |
82 | 350 | 175 | 4.5 | 9 | 36.46 |
83 | 350 | 175 | 4.5 | 10 | 39.13 |
84 | 350 | 175 | 6 | 8 | 37.71 |
85 | 350 | 175 | 6 | 9 | 40.36 |
86 | 350 | 175 | 6 | 10 | 43.02 |
87 | 350 | 200 | 4.5 | 8 | 36.92 |
88 | 350 | 200 | 4.5 | 9 | 39.99 |
89 | 350 | 200 | 4.5 | 10 | 43.06 |
90 | 350 | 200 | 6 | 8 | 40.85 |
91 | 350 | 200 | 6 | 9 | 43.90 |
92 | 350 | 200 | 6 | 10 | 46.94 |
93 | 350 | 250 | 4.5 | 8 | 43.20 |
94 | 350 | 250 | 4.5 | 9 | 47.05 |
95 | 350 | 250 | 4.5 | 10 | 50.91 |
96 | 350 | 250 | 6 | 8 | 47.13 |
97 | 350 | 250 | 6 | 9 | 50.96 |
98 | 350 | 250 | 6 | 10 | 54.79 |
99 | 400 | 150 | 4.5 | 8 | 32.40 |
100 | 400 | 150 | 4.5 | 9 | 34.69 |
101 | 400 | 150 | 4.5 | 10 | 36.97 |
102 | 400 | 150 | 6 | 8 | 36.93 |
103 | 400 | 150 | 6 | 9 | 39.19 |
104 | 400 | 150 | 6 | 10 | 41.45 |
105 | 400 | 200 | 4.5 | 8 | 38.68 |
106 | 400 | 200 | 4.5 | 9 | 41.75 |
107 | 400 | 200 | 4.5 | 10 | 44.82 |
108 | 400 | 200 | 6 | 8 | 43.21 |
109 | 400 | 200 | 6 | 9 | 46.25 |
110 | 400 | 200 | 6 | 10 | 49.30 |
111 | 400 | 250 | 4.5 | 8 | 44.96 |
112 | 400 | 250 | 4.5 | 9 | 48.82 |
113 | 400 | 250 | 4.5 | 10 | 52.67 |
114 | 400 | 250 | 6 | 8 | 49.49 |
115 | 400 | 250 | 6 | 9 | 53.32 |
116 | 400 | 250 | 6 | 10 | 57.15 |
117 | 450 | 200 | 4.5 | 8 | 40.45 |
118 | 450 | 200 | 4.5 | 9 | 43.52 |
119 | 450 | 200 | 4.5 | 10 | 46.59 |
120 | 450 | 200 | 6 | 8 | 45.56 |
121 | 450 | 200 | 6 | 9 | 48.61 |
122 | 450 | 200 | 6 | 10 | 51.65 |
123 | 450 | 250 | 4.5 | 8 | 46.73 |
124 | 450 | 250 | 4.5 | 9 | 50.59 |
125 | 450 | 250 | 4.5 | 10 | 54.44 |
126 | 450 | 250 | 6 | 8 | 51.84 |
127 | 450 | 250 | 6 | 9 | 55.67 |
128 | 450 | 250 | 6 | 10 | 59.50 |
129 | 500 | 200 | 4.5 | 8 | 42.22 |
130 | 500 | 200 | 4.5 | 9 | 45.29 |
131 | 500 | 200 | 4.5 | 10 | 48.36 |
132 | 500 | 200 | 6 | 8 | 47.92 |
133 | 500 | 200 | 6 | 9 | 50.96 |
134 | 500 | 200 | 6 | 10 | 54.01 |
135 | 500 | 250 | 4.5 | 8 | 48.50 |
136 | 500 | 250 | 4.5 | 9 | 52.35 |
137 | 500 | 250 | 4.5 | 10 | 56.21 |
138 | 500 | 250 | 6 | 8 | 54.20 |
139 | 500 | 250 | 6 | 9 | 58.03 |
140 | 500 | 250 | 6 | 10 | 61.86 |
141 | 500 | 250 | 8 | 10 | 69.39 |
142 | 500 | 250 | 8 | 12 | 76.99 |
143 | 550 | 200 | 6 | 8 | 50.27 |
144 | 550 | 200 | 6 | 10 | 56.36 |
145 | 550 | 200 | 6 | 12 | 62.45 |
146 | 550 | 200 | 8 | 10 | 64.68 |
147 | 550 | 200 | 8 | 12 | 70.71 |
148 | 550 | 200 | 8 | 14 | 76.74 |
149 | 550 | 200 | 10 | 12 | 78.97 |
150 | 550 | 200 | 10 | 14 | 84.94 |
151 | 550 | 200 | 12 | 14 | 93.13 |
152 | 550 | 250 | 6 | 8 | 56.55 |
153 | 550 | 250 | 6 | 10 | 64.21 |
154 | 550 | 250 | 6 | 12 | 71.87 |
155 | 550 | 250 | 8 | 10 | 72.53 |
156 | 550 | 250 | 8 | 12 | 80.13 |
157 | 550 | 250 | 8 | 14 | 87.73 |
158 | 550 | 250 | 10 | 12 | 88.39 |
159 | 550 | 250 | 10 | 14 | 95.93 |
160 | 550 | 250 | 12 | 14 | 104.12 |
161 | 550 | 300 | 6 | 8 | 62.83 |
162 | 550 | 300 | 6 | 10 | 72.06 |
163 | 550 | 300 | 6 | 12 | 81.29 |
164 | 550 | 300 | 8 | 10 | 80.38 |
165 | 550 | 300 | 8 | 12 | 89.55 |
166 | 550 | 300 | 8 | 14 | 98.72 |
167 | 550 | 300 | 10 | 12 | 97.81 |
168 | 550 | 300 | 10 | 14 | 106.92 |
169 | 550 | 300 | 12 | 14 | 115.11 |
170 | 550 | 350 | 6 | 8 | 69.11 |
171 | 550 | 350 | 6 | 10 | 79.91 |
172 | 550 | 350 | 6 | 12 | 90.71 |
173 | 550 | 350 | 8 | 10 | 88.23 |
174 | 550 | 350 | 8 | 12 | 98.97 |
175 | 550 | 350 | 8 | 14 | 109.71 |
176 | 550 | 350 | 10 | 12 | 107.23 |
177 | 550 | 350 | 10 | 14 | 117.91 |
178 | 550 | 350 | 12 | 14 | 126.10 |
179 | 600 | 200 | 6 | 8 | 52.63 |
180 | 600 | 200 | 6 | 10 | 58.72 |
