Specifications
the hospital water supply system:>Automatic Operation
>Flow rate (T/H):60-240
>Pump power(KW):11-75
>ASME/API

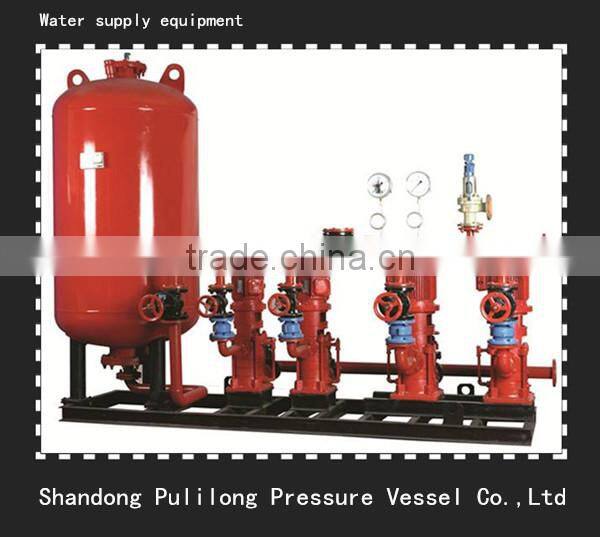

the hospital water supply system produced by Pulilong
Specifications:
>Automatic Operation
>Flow rate (T/H):60-240
>Pump power(KW):11-75
>Design pressure(Mpa):0.6-1.6
>ISO9001&ISO14001&GB/T28001
Introduction:
NG-type air pressure water pump package system is one kind of pressurized water supply equipment, it has the same function with the high cistern, water towers The package system is widely used in the fields of hotels,
hospitals, commercial buildings, factories and enterprises, residential quarters and other multi-story building as the perfect production and living water supply equipment. Matching with the heat exchanger unit it can also be applied to contain the impact of water's expansion, constant pressure and automatic replenishmentin the hot water closed-loop air-conditioning, heating system
1, using capsule-type air pressure tank to supply water automatically, without high cistern. It is more safe and reliable especially in air-conditioning, heating system .
2, The gas and water does not be mixxed, has not water pollution happened, to meet the requirements of water quality.
3, working with small vibration, low noise; The water hammer in the pipe network can automatically eliminated, avoiding the impact and damage to the system; operating pressure is stable and reliable.
4, To set up two pumps, operate them alternately or parallelly, to ensure the sufficient start-interval, has obvious energy-saving effect; solve the problem of suspension of water supplies because of fault from stopping work.
5, simple installation, easy maintenance, easy centralized management.
| TYPE | WATER PUMP (VERTICLE TYPE) | TANK BODY | MAXIMUM OPERATING WEIGHT (T) | ||||||
| TYPE | SETS | PER SET POWER (KW) | FLOW RATE (M3/H) | PUMP LIFT (M) | DIAMETER(MM) | SETS | DESIGN PRESSURE | ||
| NG24-7.30 | IGS80-125 | 2 | 11 | 60-240 | 24-16 | 2000 | 2 | 0.6-1.6 | 26 |
| NG36-7.30 | -160 | 15 | 36-28 | ||||||
| NG54-7.30 | -200 | 22 | 54-47 | ||||||
| NG87-7.30 | -250 | 37 | 87-74 | ||||||
| NG133-7.30 | -315 | 75 | 133-118 | ||||||
Company photo:
