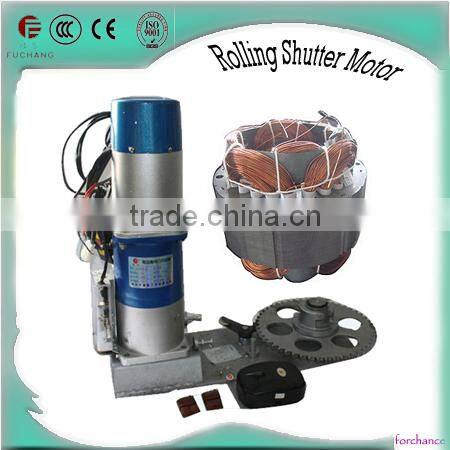

Roller shutter door motor
Speciafications:1. Automatic door operators has pleasing designs with powerful drive.
2. With 120 ℃ overheat protection, overload protection.
3. Safety Brake, accurate limited control positioning, with double limit switch protection, can prevent door over roll-up.
4. Manual operation when power-off.
5. Powerful, low noise, lower energy consumption.
6.Easy to install, easy to maintain and long useful time.
7.With the natinal patent of chain-break protection device.Roll up shutter door motor Technical Specifications
Model Motor Power(W) Max.lifting force(KG) Max.hosting height(M) Max.output Torque(N.W) Rated Current(A) Large Sprocket Reel Speed(R/MIN) Chain No. Power Supply(V/HZ): 220/50 DJM-300-1P 250 300 6 168 3.3 4.8 08B DJM-400-1P 250 400 6 225 3.3 4.8 08B DJM-500-1P 370 500 6 343 3.9 4.8 10A DJM-600-1P 370 600 6 412 3.9 4.8 10A DJM-800-1P 400 800 9 647 4.5 3.94 10A DJM-1000-1P 400 1000 9 809 4.5 3.75 12A Power Supply(V/HZ): 380/50 DJM-600-3P 250 600 6 412 1.2 4 10A DJM-800-3P 300 800 9 647 2.0 3.94 10A DJM-1000-3P 400 1000 9 1102 2.3 3.74 12A DJM-1300-3P 600 1300 9 1372 3.0 4.4 12A DJM-1500-3P 600 1500 9 1610 3.2 5.2 16A High quality
100% copper wire
CERTIFICATIONS
CE,ISO9001
OEM/DEM
YES
WARRANTY
1 year from the day of shipment
AC MOTOR INCLUDE
motor part, assembly bracket, remote control sets, flange & rings, metal key box.
AC MOTOR LOAD CAPACITY
450-500 SETS FOR ONE 20GP CONTAINER.
MOTOR PACKAGE
TWO CARTONS WITH FOAM INSIDE , ONE FOR MOTOR, ONE FOR BRACKET

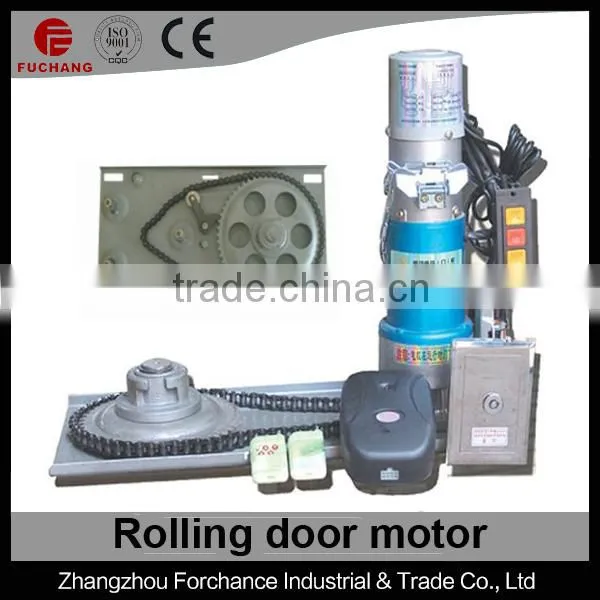

Roller shutter door motor
product detail:Our services:
Roll up shutter door operator package:
rolling shutter door motor Line
Certificate
About us
We have enough confidence to be your best partner in China !
You are welcome to send us E-mail or call us !
