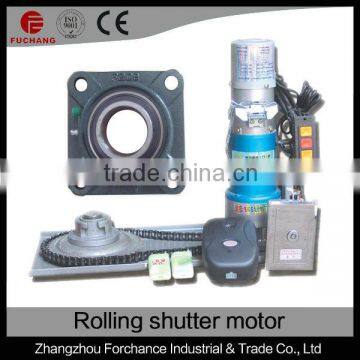

1000kg-3P Brushless motor

Specifications

FuChang series Brushless motor  structure and function features:

1. Left or right installation is ok
2. design controller with different funtions according to customers request.
3. 300kgs/500kgs could add reserve power function
4. overheat protection:if the motor temperature is over 110 degreed centigrade, the motor stops working automatically, works again if temperature return below 70 degreed centigrade
5. It can be operated by electricity and manual
6. Durable compact design great elevating power with low noise
7. Could match infrared sensor or alarm system(optional)
8. Four relays inside the motor,four micro-active switch inside the limit system

   Brushless motor  Main Specifications

   Model	Motor Power(W)	Max.lifting force(KG)	Max.hosting height(M)	Max.output Torque(N.W)	Rated Current(A)	Large Sprocket Reel Speed(R/MIN)	Chain No.
   Power Supply(V/HZ): 220/50
   DJM-300-1P	250	300	6	168	3.3	4.8	08B
   DJM-400-1P	250	400	6	225	3.3	4.8	08B
   DJM-500-1P	370	500	6	343	3.9	4.8	10A
   DJM-600-1P	370	600	6	412	3.9	4.8	10A
   DJM-800-1P	400	800	9	647	4.5	3.94	10A
   DJM-1000-1P	400	1000	9	809	4.5	3.75	12A
   Power Supply(V/HZ): 380/50
   DJM-600-3P	250	600	6	412	1.2	4	10A
   DJM-800-3P	300	800	9	647	2.0	3.94	10A
   DJM-1000-3P	400	1000	9	1102	2.3	3.74	12A
   DJM-1300-3P	600	1300	9	1372	3.0	4.4	12A
   DJM-1500-3P	600	1500	9	1610	3.2	5.2	16A



:
