12V Constant Voltage LED Driver With High Efficiency

Xiamen Evada Electronics Co., Ltd.
12V Constant Voltage LED Driver With High Efficiency thumbnail-1
12V Constant Voltage LED Driver With High Efficiency photo-1
Negotiable MOQ: 500 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
EVADA
Model Number:
VUF-036-012
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
XIAMEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name EVADA
Model Number VUF-036-012
Output Power 1 - 50W
Output Type Single
Input Voltage 220V
Output Voltage 12Vdc
Output Frequency 50/60Hz
Output Current 0~3A

Constant Voltage LED driver for power 36W



Features:

*Constant voltage, isolated type.

*Without flicker

*Large selection of the parameter, long working-time

*Using the high frequency low resistance electrolysis with 8000 hours, excellent quality and stable performance.

*passing 100% aging test, high reliability;

*With the production of Short circuit, broken circuit, Automatic overload protection, more safety more stable.

*High effiencncy 88% typical

*Low Cost

*High reliability

*Replace MEANWELL model: EPS-35 series.



MODEL VUF-036-012VUF-036-024VUF-036-036VUF-036-048
OUTPUTDC VOLTAGE12V24V36V48V
RATED CURRENT3A1.5A1A0.75A
RATED POWER36W36W36W36W
Ripple & NOISE100mVp-p180mVp-p200mVp-p240mVp-p
VOLTAGE TOLERANCE±2.0%±2.0%±2.0%±1.0%
LOAD REGULATION±1.0%±1.0%±1.0%±0.5%
INPUTVOLTAGE RANGE   90-264Vac
FREQUENCY RANGE   47~63Hz
EFFICIENCY(Typ.)88%88%88%88%
AC CURRENT   0.5A Max
PROTECTIONOVER Load   110%~170% rated output power
Over voltage   Protection type: Hiccup mode
ENVIRONMENTWORKING TEMP.   -30°C~+70°C
WORKING HUMIDITY   10%RH~100%RH non-condensing
STORAGE TEMP., HUMIDITY   -40°C~80°C   10~95%RH
SAFETY& EMCSAFETY STANDARDS   IEC/EN60598;IEC/EN61347;CB
WITHSTAND VOLTAGE   I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC
EMC   EN55015/EN61547/EN61000
OthersMTBF   60000Hours
DIMENSION   76*51*25mm(L*W*H)

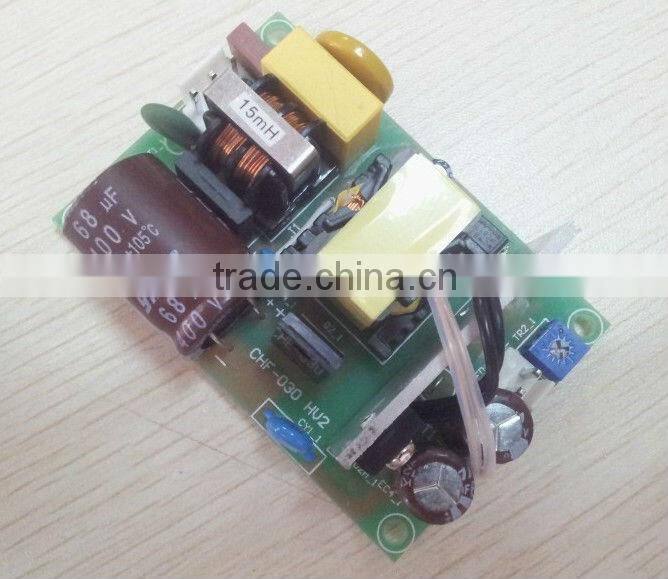

 12V constant voltage LED Driver with High Efficiency
