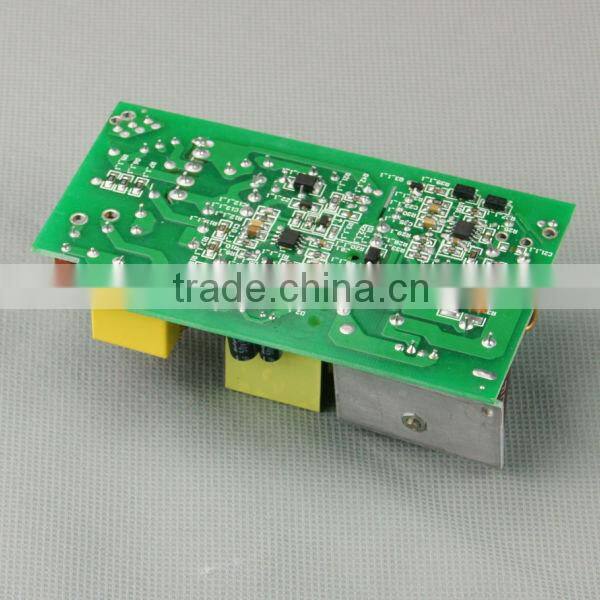

48V 1.6A Constant Current LED Driver With CE Certification

Name: 48V 1.6A Constant Current LED Driver With CE Certification
Brand: EVADA
SKU: 113484897
Availability: InStock

Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

EVADA

Model Number:

VHF-030-048

Xiamen Evada Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xiamen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name EVADA

Model Number VHF-030-048

Output Power 51 - 100W

Output Type Single

Input Voltage 220V

Output Voltage 48V

Output Frequency 50Hz

Output Current 1.8A

48V 1.8A Constant Current LED Driver with CE Certification

MODEL		VUF-030-048
OUTPUT	DC VOLTAGE	48V
	CONSTANT CURRENT REGION	35~50DC
	RATED CURRENT	1.6A
	RATED POWER	75W
	RIPPLE & NOISE	±4%
	VOLTAGE TOLERANCE	10%
	LOAD REGULATION	±2.0%
INPUT	VOLTAGE RANGE	90~264VAC
	FREQUENCY RANGE	47~63Hz
	POWER FACTOR	PF≥0.95/220VAC
	EFFICIENCY(Typ.)	89%
	AC CURRENT	1.6A Max
PROTECTION	OVER CURRENT	±5% rated output current
	OVER CURRENT	Protection type: Constant current limiting
	SHORT CIRCUIT	Hiccup mode
		Protection type: Shut down and latch off o/p voltage, re-power on to recover.
	Over temperature	Protection type: Shut down o/p voltage, re-power on to recover.
ENVIRONMENT	WORKING TEMP.	-30°C~+70°C
	WORKING HUMIDITY	10%RH~100%RH non-condensing
	STORAGE TEMP., HUMIDITY	-40°C~+80°C
SAFETY& EMC	SAFETY STANDARDS	IEC/EN60598;IEC/EN61347;CB
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC
	EMC	EN55015/EN61547/EN61000
OTHERS	IP RATING	IP67
	MTBF	60000Hours
	DIMENSION	1467041mm(LWH)
	PACKING	0.75KG/pc
