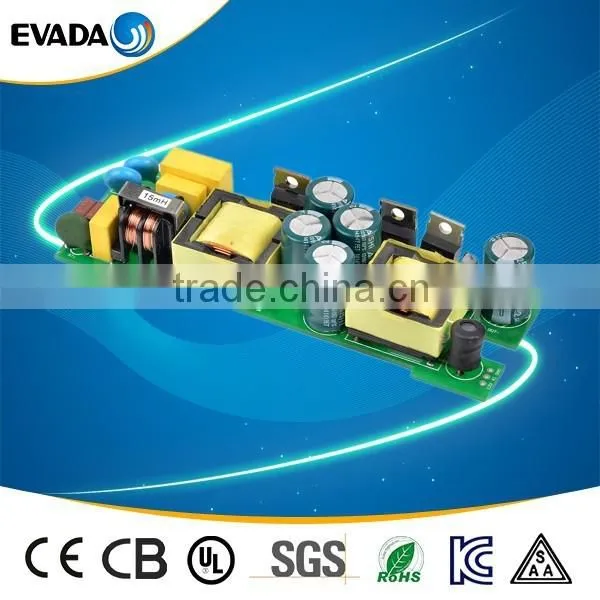

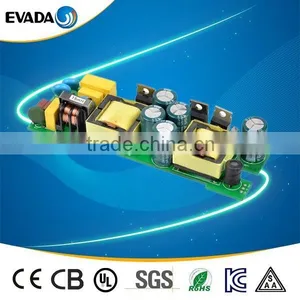

0-10V 100W LED Dimming Drivers With High PFC and Efficiency

Name: 0-10V 100W LED Dimming Drivers With High PFC and Efficiency
Brand: Evada
SKU: 113484913
Availability: InStock

Negotiable MOQ: 200 Units (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

Evada

Model Number:

CHF-100-050-FGL

Xiamen Evada Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xiamen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name Evada

Model Number CHF-100-050-FGL

0-10V 100W LED dimming drivers with High PFC and Efficiency :

·Constant current mode power supply

·Protection:Short circuit/Overload/Over voltage/Over temperature

·Built in PFC function,PF>0.98

·Cooling by free air converction

·Suitable for all kinds of LED lingtings, LED street lighting and moving sign applications.

·IP67 design for indoor and outdoor installations

·Built-in constant current limiting circuit (C.C.+C.V.mode);

·Compliance to worldwide safety regulations for lighting

·2 years' warranty

MODEL		CUF-100-050-FGL
OUTPUT	DC VOLTAGE	200Vdc
	CONSTANT CURRENT REGION	200Vdc
	RATED CURRENT	500mA
	RATED POWER	100W
	RIPPLE & NOISE	±4%
	VOLTAGE TOLERANCE	10%
	LOAD REGULATION	±2.0%
INPUT	VOLTAGE RANGE	176~264VAC/90~150VAC
	FREQUENCY RANGE	47~63Hz
	POWER FACTOR	PF≥0.95/220VAC
	EFFICIENCY(Typ.)	90%
	AC CURRENT	0.4A Max
PROTECTION	OVER CURRENT	±5% rated output current
	OVER CURRENT	Protection type: Constant current limiting
	SHORT CIRCUIT	Hiccup mode
	Over voltage	Protection type: Shut down and latch off o/p voltage, re-power on to recover.
	Over temperature	Protection type: Shut down o/p voltage, re-power on to recover.
ENVIRONMENT	WORKING TEMP.	-30°C~+70°C
	WORKING HUMIDITY	10%RH~100%RH non-condensing
	STORAGE TEMP., HUMIDITY	-40°C~+80°C
SAFETY& EMC	SAFETY STANDARDS	IEC/EN60598;IEC/EN61347;CB
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC
	EMC	EN55015/EN61547/EN61000
OTHERS	IP RATING	IP67/open-frame
	MTBF	60000Hours
	DIMENSION	1374226mm(LWH)
	PACKING	0.2KG/pc
